FCC Fiberglass LED Underwater Pool Light 12V AC DC 18W Wall Mounted
FCC Fiberglass LED Underwater Pool Light 12V AC DC 18W Wall Mounted
Specifications
Brand Name :
Birmate
Model Number :
HG-PL-18W-F1
Certification :
CE, ROHS,FCC, IP68,VDE
Place of Origin :
China
MOQ :
1 pcs is available.
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
50000pcs per month
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Packed 1 pcs in a box,then put 10 pcs in a big carton
IP Rank :
IP68
Light dimension :
Φ290×85mm
LED QTY :
198PCS
Material :
Plastic+PC cover
Pure White :
6500K
Voltage :
AC/DC12V
Description

12V AC/DC 18W Wall Mounted Fiberglass LED Swimming underwater Pool Light with ERP,FCC,CE,ROHS,IP68

Product details

1. IP68 Structure waterproof, without resin-filled.

2. Patented 4-layers waterproof structure, more stable than resin-filled pool lights

3. Constant current driver, comply with CE & EMC standard.

4. LED wall mnounted pool light completely replace traditional pool lights and modern pool lights;

5. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.

Product Features

1. Environmental ABS material shell

2. All products succeeded in 10m deep water testing before delivery.

3. High quality led pool light has VED standard waterproof cable ,better waterproof and anti-aging

ability with pure copper wire.

4. White PC back cover ,High tension waterproof silicone ring,

5. Surface fitting led swimming pool light with white PC back cover, High tension waterproof silicone ring,

Specification

HG-PL-18W-F1
Lamp paramater Material ABS + Transparent PC cover
Light dimension Φ290×85mm
Input voltage AC/DC12V
Wattage 18W±10％
Light lumen 1800LM±10％
Halogen replacement 120W
Beam angle 120°
BASE Wire out
CCT Pure White: 6500±10% Warm White:3000K±10% costomized/RGB
Specifics Operating Temperature (℃) -20~40℃
IP Rating IP68
Certificate CE, ROHS,FCC, IP68,VDE
Life-span 50,000 hours
Warranty 2 Years
!!! Remarks Connect coil transformer must be coil transformer
Waterproof ring of housing must do right to get IP68
Test position LED Surface Mounted Swimming Pool Light(Min)
Working temperature 28℃ Working temperature 40℃
Underwater test time(Min) 480 480
LED edge temperature(℃) 72 73

Product size

FCC Fiberglass LED Underwater Pool Light 12V AC DC 18W Wall Mounted

FCC Fiberglass LED Underwater Pool Light 12V AC DC 18W Wall Mounted

FCC Fiberglass LED Underwater Pool Light 12V AC DC 18W Wall Mounted

Advantage

1. Reliable quality with 100% 10m depth waterproof test.

2. White led pool light Must be 8 hours aging test.

3. Swimming pool astral underwater light Finished products all passed 30 steps quality inspection

4. IP68 structure waterproof ,can long time use underwater.

5. Constant current driver, comply with CE & EMC standard.

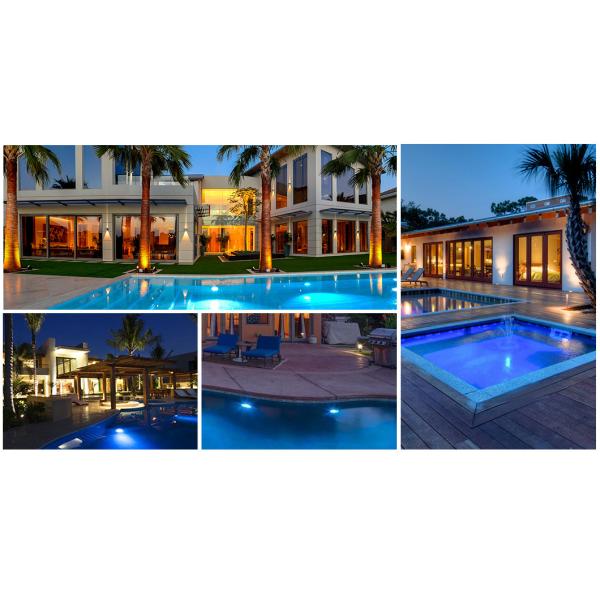

Application

Surface mounted pool lights application :Concrete pool ,Vinyl pool ,Outdoor Swimming

Pool ,family pool,hotel pool ,underwater etc.

FCC Fiberglass LED Underwater Pool Light 12V AC DC 18W Wall Mounted

Packing List

Item

HG-PL-18W-F1
Product weight 1100G
color box size 185×185×118mm
Carton/pcs 20pcs/Carton
Carton size 610x410x410mm
Carton weight 26.8KG

FAQ

1.How to get a sample?
-Based on the value of our products, we do not supply free sample, if you need a sample for testing,
please kindly contact our sales for more details.

2.How long to deliver the products?
-The exact delivery date need to according to your model and quantity. Usually within 5-7 working
days for sample after receive the payment and 15-20 working days for mass production.

3.Do you offer guarantee for the products?
-Yes, we offer 2 years warranty our products, several item can be 3 years with extra costs

4.How to deal with the faulty products?
-Firstly, our products are produced in strict quality control system and the defective rate will be less
than 1%.Secondly, during the guarantee period,we will send new replacement with new order for small
quantity.. For defective batch products, we will repair them and
