Specifications
Brand Name :
Birmate
Model Number :
HG-FTN-24W-B1
Certification :
IK10,CE, ROHS,FCC, IP68,VDE
Place of Origin :
China shenzhen
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
50,000 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
Standard Export Carton Box
Working Wattage :
24W
warranty :
2 year
Lamp luminous flux(lm) :
2000LM±10%
IP Rating :
IP68
cable :
4wire
LED chip :
SMD3030(CREE)
Current :
1000ma
LED (PCS) :
18PCS
Description

Advantage

1. Reliable quality with 100% 10m depth waterproof test.

2. Fountain with led light must be 8 hours aging test and provide 2 Years warranty.

3. Finished products all passed 30 steps quality inspection.

4. Good looking stamping SS316 rivet screws, more stable, never fall off

5. Good looking with rivet screw and cover nut assembly, longer lifespan.

6. Led fountain are IP68 structure waterproof, can long time use underwater.

Product Features

1. High quality fountain light, two years warranty.

2. Integrated bead lens with uniform lighting, no dazzling.

3. IK10 tempered glass cover, transparent and strong enough.

4. Fountain led light water has better heat dissipation with the conductivity :2.0W/(m.k).

5. Unique structure waterproof design, can match the maximum nozzle size ø50mm.

Specification

HG-FTN-24W-B1
Lamp parameter Material 316L Stainless steel + Tempered glass(IK10)
Light dimension Φ210×75mm,nozzle hole-50mm
Input voltage DC24V
Wattage 24W±10%
Light lumen 2000LM±10
Beam angle 30°/45°/60°
CCT RGB
Specifics Operating Temperature () -20~40
IP Rating IP68
Certificate IK10,CE, ROHS,FCC, IP68,VDE
Life-span 50,000 hours
Warranty 2 Years
Connect our RGB External Controller Input Voltage DC24V coil transformer
Wattage 360W
cable 4wire
Test position LED Surface Mounted Swimming Pool Light(Min)
Working temperature 28 Working temperature 40
Underwater test time(Min) 480 480
LED edge temperature() 48 63

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

Product Size

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

Installation instructions

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

Connection instructions

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

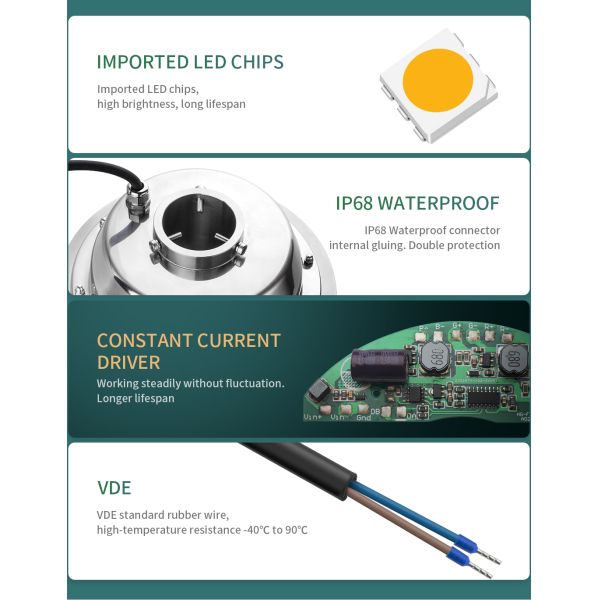

Product details

1. 316L Stainless steel material, anti-corrosion.

2. Led fountain light ip68 with VDE standard outlet: standard cable length is 1 meter.

3. Imported high light CREE LED chip, CRI>80. Low light degradation and long lifespan.

4. Lens is integrated structure.

5. 8.0mmTempered glass transparent cover, thickness.

6. RGB external control and DMX512 control are the best selling control in Heguang.

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

Application

LED for fountain widely used as square fountains, garden fountains, rockery fountains,

artificial waterfalls and other underwater lighting.

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

Packing List

Item

HG-FTN-24W-B1

Product weight 1500G/PCS
color box size 625×380×325mm
Carton/pcs 20pcs/Carton
Carton size

617×396×396mm

Carton weight 34KG/CTN

316L Stainless steelIP68 Structure waterproof DC24V 2000LM Led Fountain Lights

FAQ

Q1:How to choose the right LED energy saving lamps?
A:Low watage with high Lumen. This will save more electricity bill.

Q2: What is the advantages of LED?
A:Environmental friendly, Energy saving and Long lifespan.

Q3:The key factor that influence LED lifespan.
A:Temperature: It requires that junction temperature of LED chip should be ≤120ºC,

so the center temperature at the LED bottom of light board should be ≤ 80 ºC.

Q4: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us directly or leave us the message ,we will give priority to your inquiry.

Q5: May I get samples to test quality and how long can I get them?

A: Yes, samples can be ready in 3-5 days.

Q6: What is the MOQ?

A: NO MOQ,the more you order ,the cheaper price you will get .

Q7: Can you accept small trial order?

A: Yes

Q8: Do you accept the OEM&ODM?

A: Yes, OEM/ODM acceptable
