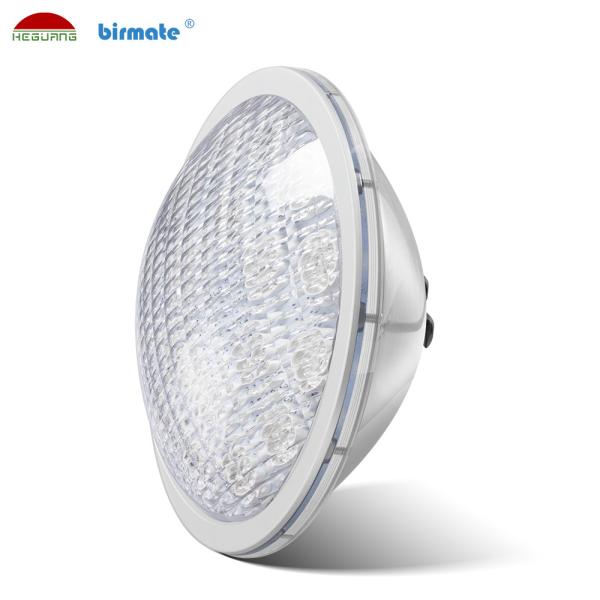

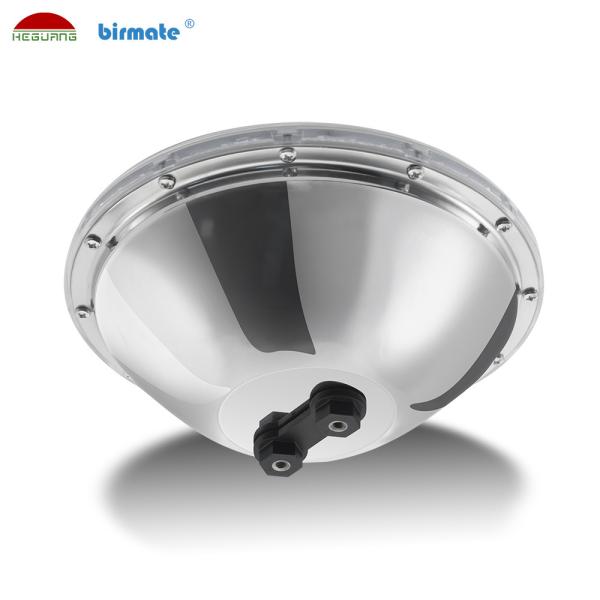

Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs
Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs
Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs
Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs
Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs
Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs
Specifications
Brand Name :
Birmate
Model Number :
HG-P56-18X3W-C-RGB-K
Certification :
CE, ROHS,FCC, IP68,VDE
Place of Origin :
China
MOQ :
1 pcs.
Price :
negotiation.
Payment Terms :
L/C, T/T, Western Union, PayPal.
Supply Ability :
50,000 pcs per month.
Delivery Time :
5-7 working days.
Packaging Details :
Standard Export Carton Box.
Input Voltage :
AC110/120/220V coil transformer
base :
two screws terminal
light lumen :
1200LM±10％
material :
SS316L + Anti-UV PC cover
LED QTY :
18LED
warranty :
2 year
Description

Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs

Product Quick detail

1. LED Color: White/Red/Green/Blue/RGB.

2. Control Way: Switch OF/OFF control.

3. Material: 316L Stainless steel +anti UV PC cover.

4. Underwater lighting 12v with structure waterproof IP68.

5. LED underwater lighting has 45 mil 3W LED chips, can choose white/blue/green/.etc.

6. Lamp body with stainless steel 316L material,strong anti-corrosion, 2 screws terminal or with 1M cable.

Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs

Product features

1. Private Mode products.

2. Finished product passed 30 steps quality inspection.

3. Anti UV PC cover, Uniform light,no yellowing or dazzling for two years.

4. IP68 rgb underwater led pool light withTwin posts, not easy to loose.

5. 12V led pool light bulb with 316 stainless steel screw assembly.

6. Constant current power driver,EMC anti-interference circuit.

Specification

HG-P56-18X3W-C-RGB-T/HG-P56-18X3W-C-RGB-K
Lamp paramater Material SS316L + Anti-UV PC cover
Light dimension Φ177×102mm
Input voltage AC12V
Wattage 24W±10％
Light lumen 1200LM±10％
Beam angle 15°/30°/45°/60°
BASE two screws terminal
Specifics Operating Temperature (℃) -20~40℃
Certificate CE, ROHS,FCC, IP68,VDE
Warranty 2 Years
!!! Remarks Connect coil transformer must be coil transformer
Waterproof ring of housing must do right to get IP68
Connect our RGB 100% Synchronous Controller Input Voltage AC110/120/220V coil transformer
cable 2 wires
Control way Synchronous control effect
Test position LED PAR56 swimming pool lights (Min)
Working temperature 28℃ Working temperature 40℃
Underwater test time(Min) 480 480
LED edge temperature(℃) 70 73

Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs

Advantage

1. Assembly with SS316 screws, more durable.

2. PAR56 pool lightsget UL approval for some models.

3. PC material LED lens with bracket, high heat resistance.

4. Constant current power supply driver, EMC anti-interference circuit.

5. IP68 structure waterproof, whithout glue filled, no color temperature fading.

6. Pool light led underwater diameter is about 177mm,can totally meet various PAR56 housing/niche:Pentair,Austra,Hayward,etc.

all passed 30 steps quality control , 100% waterproof at 10m depth ,8 hours LED agening test,
100% inspection before deliver.

Application

HG-P56-18x3W-C-RGB-T led pool lighting widely use in concrete pool,

vinyl pool, the lamp size can totally match various Germany and US PAR56 housing/niches

Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs

How to replace the old PAR56 led underwater lighting halogen

Outdoor waterproof Private Mode IP68 RGB color underwater led pool light with ce rohs

Packing List

Item HG-P56-18x3W-C-RGB-K LED pool lighting
Product weight 1030g
color box size 185×185×118mm
Carton/pcs 20pcs/Carton
Carton size 610x410x410mm
Carton weight 24kg

Some tips for you

Q1: How to choose the right LED energy saving lamps?

Low watage with high Lumen. This will save more electricity bill.

Q2: What is the advantages of LED?

Environmental friendly, Energy saving and Long lifespan.

Q3: The key factor that influence LED lifespan.

Temperature: It requires that junction temperature of LED chip should be ≤120℃,

so the center temperature at the LED bottom of light board should be ≤ 80 ℃.

Q4: Why choose us?

1. Lower wattage with high Lumen and more energy-efficient.

2. All lamps are self-developed patent products.

3. IP68 structure waterproof without glue, and lamps disspate heat through structure.

4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).

5. High quality driver of lamps to ensure the long lifespan.

6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.

7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
