Specifications
Brand Name :
Birmate
Model Number :
HG-P56-18×1W-C-RGB-T-UL
Certification :
UL,CE, ROHS,FCC, IP68,VDE
Place of Origin :
China
MOQ :
1 pcs.
Price :
negotiation.
Payment Terms :
L/C, T/T, Western Union, PayPal.
Supply Ability :
50,000 pcs per month.
Delivery Time :
5-7 working days.
Packaging Details :
Standard Export Carton Box.
Working Voltage :
18W±10％
light lumen :
630LM±10％
IP Rate :
IP68 waterproof
LED Color :
RGB
base :
two screws terminal
warranty :
3 year
Description

Housing Assembly 100% RGB Synchronous Control 18W PAR56 IP68 LED Pool Light Bulb

Product Quick detail

1. All products provide 3 year warranty.

2. PAR56 led pool light bulb IP Rate is IP68 Structural waterproof.

3. LED Color &Control Way:RGB Color with 100% RGB Synchronous Control.

4. Lamp body with stainless steel 316L material, strong anti-corrosion, 2 screws terminal or with 1M cable.

5. IP68 led pool light has 45milil RGB LED chips LED chips, can choose white/blue/green/.etc.

Housing Assembly 100% RGB Synchronous Control 18W PAR56 IP68 LED Pool Light Bulb

Product features

1. Twin posts, not easy to loose.

2. LED lights for pool with 4 layers waterproof.

3. P68 Structural waterproof, no yellowing or dazzling for two years.

4. Swimming pool led lights is 316 stainless steel screw assembly.

5. RGB pool light bulb fully match the market's conventional PAR56 lamps, replacing halogen.

6. Par56 led pool light bulb with anti UV PC cover, Uniform light, no yellowing or dazzling for two years.

Specification

HG-P56-18×1W-C-RGB-T-UL
Lamp paramater Material SS316L + Anti-UV PC cover

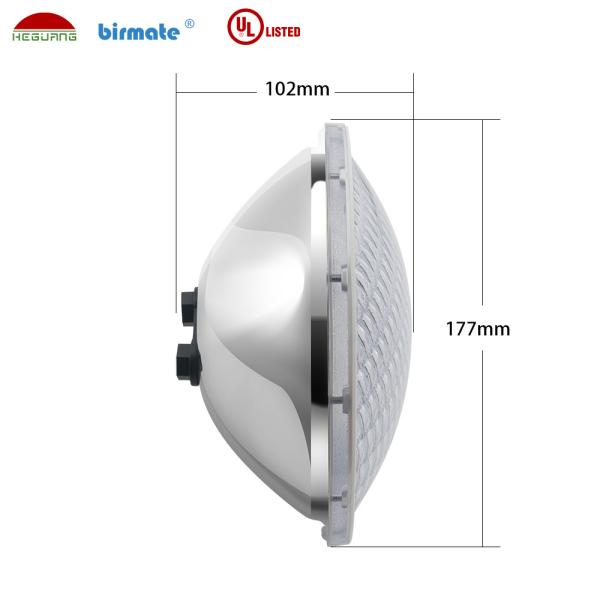

Light dimension Φ177×102mm
Input voltage AC12V
Wattage 18W±10％
Light lumen 630LM±10％
Beam angle 15°/30°/45°/60°
BASE two screws terminal
Specifics IP Rating IP68
Certificate UL,CE, ROHS,FCC, IP68,VDE
!!! Remarks Connect coil transformer must be coil transformer
Waterproof ring of housing must do right to get IP68
Connect our RGB 100% Synchronous Controller Input Voltage AC110/120/220V coil transformer
Wattage 1.5W
cable 2 wires
Control way Synchronous control effect
Test position LED PAR56 swimming pool lights (Min)
Working temperature 28℃ Working temperature 40℃
Underwater test time(Min) 480 480
LED edge temperature(℃) 71 73


Housing Assembly 100% RGB Synchronous Control 18W PAR56 IP68 LED Pool Light Bulb

Advantage

1. Assembly with SS316 screws,more durable.

2. PC material LED lens with bracket, high heat resistance.

3. 18W led underwater light UL approval for some models.

4. Constant current power supply driver, EMC anti-interference circuit.

5. IP68 structure waterproof, whithout glue filled, no color temperature fading.

6. Swimming pool led lights underwater for pools diameter is about 177mm, can totally meet various PAR56 housing/niche:Pentair,Austra,Hayward,etc.


LED Swimming pool light all passed 30 steps quality control , 100% waterproof at 10m depth ,8 hours LED agening test, 100% inspection before deliver.

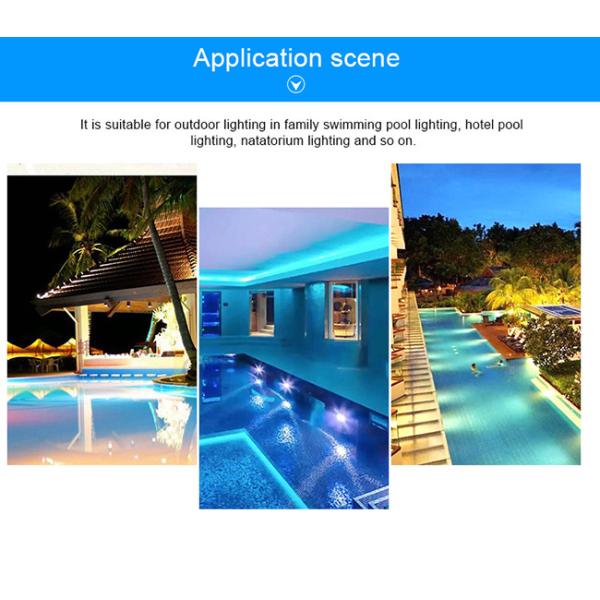

Application

HG-P56-18×1W-C-RGB-T-UL led pool lighting widely use in concrete pool ,

vinyl pool, the lamp size can totally match various Germany and US PAR56 housing/niches.

Housing Assembly 100% RGB Synchronous Control 18W PAR56 IP68 LED Pool Light Bulb

Packing List

Item HG-P56-18×1W-C-RGB-T-UL LED pool lighting
Product weight

950G
color box size 185×185×118mm
Carton/pcs 20pcs/Carton
Carton size 610x410x410mm
Carton weight

20.6Kg

Some tips for you

Q1: How to choose the right LED energy saving lamps?

Low watage with high Lumen. This will save more electricity bill.

Q2: What is the advantages of LED?

Environmental friendly, Energy saving and Long lifespan.

Q3: The key factor that influence LED lifespan.

Temperature: It requires that junction temperature of LED chip should be ≤120℃,

so the center temperature at the LED bottom of light board should be ≤ 80 ℃.

Q4: Why choose us?

1. Lower wattage with high Lumen and more energy-efficient.

2. All lamps are self-developed patent products.

3. IP68 structure waterproof without glue, and lamps disspate heat through structure.

4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).

5. High quality driver of lamps to ensure the long lifespan.

6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.

7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
