3W Underwater Led Lights Waterproof IP68 24V Pure White Color Anti - Corrosion
Product details
1. IP Rank: IP68 waterproof.
2. Private Mode products,Support ODM&OEM.
3. SS316L material ,super good anti-corrosion.
4. Underwater swimming pool light Use Cree Led Chip.
5. LED Color&Color temperature: White color about 6500K±10%.
6. Grounding fixing method default: aluminum grounding pole (plastic grounding pole optional)
Specification
HG-UL-3W-SMD-R | ||||||
Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | ||||
length | Φ98×88mm | |||||
Input voltage | DC24V | |||||
Constant Driver | yes | |||||
Over-current Protection | yes | |||||
Wattage | 3W±1W CREE | |||||
Light lumen | 300LM±10% | |||||
Beam angle | 15°/30°/45°/60° | |||||
CCT | Pure White: 6500±10% Warm White:3000K±10% costomized | |||||
Packing/ Shipping | Lamp sizeInner box dimension | 104×104×133mm | ||||
N.W. / pc | 475g | |||||
G.W. / pc | 525g | |||||
Carton dimension | 540×540×285mm | |||||
Qty. / ctn. | 50PCS/CTN | |||||
G.W. / ctn. | 27.5Kg | |||||
test Site | LED Underwater light (Min) | |||||
Ambient temperature 28℃ | Ambient temperature 40℃ | |||||
Underwater test lighting time(Min) | 90 | 150 | 10 | 30 | 90 | 150 |
Light source edge temperature(℃) | 52 | 60 | 45 | 58 | 65 | 70 |

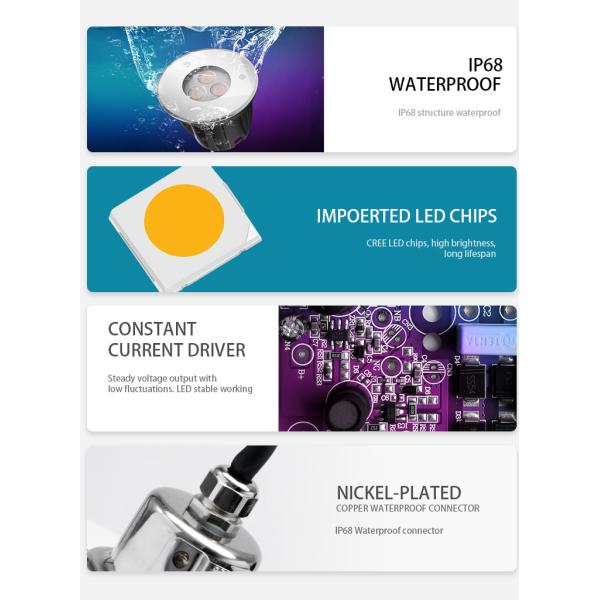

Product Features
1. 316L material, strong anti-corrosion ability.
2. Jandy white led pool light use CREE LED chip ,gold wire welding,
3. Integrated bead lens with uniform lighting ,no dazzling,light transmittance >85%.
4. EMC and ceramic make the heat dissipation faster,assure the longer lifespan of LED.
5. Thickened aluminum board :2-3mm,better heat dissipation with the conductivity :2.0W/(m.k).
6. IK10 8mm transparent tempered glass,light transmittance >90%, no effect with the LED color temperature.
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Ground led light finished products all passed 30 steps quality inspection
3. Good looking stamping SS316 rivet screws,more stable ,never fall off
4. Good looking with rivet screw and cover nut assembly,longer lifespan.
5. Pure white led pool light Must be 8 hours aging test and provide 2 Years warranty.
6. Thickened aluminum board :2-3mm,better heat dissipation with the conductivity :2.0W/(m.k).
LEDunderwater pool light all passed 30 steps quality control , 100% waterproof at 10m depth ,
8 hours LED agening test,100% inspection before deliver.

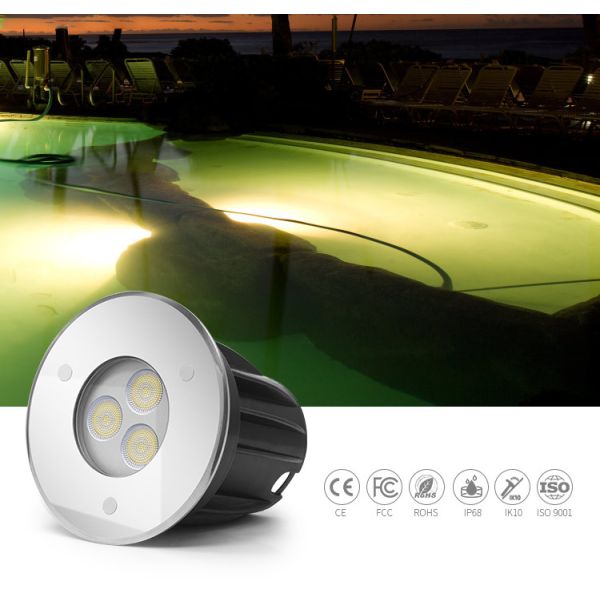

Application
Pool light bulbs led underwater widely used in cement swimming pools, hot spring pools, garden pools
and other underwater lighting.
Packing List
Item | HG-UL-3W-SMD-R |
Product weight | 510G/PCS |
color box size | 625×380×325mm |
Carton/pcs | 50pcs/Carton |
Carton size | 610x410x410mm |
Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us or tell us your email, so that we will give priority to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get them?
A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous controller?
A: It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
