316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval
Specifications
Brand Name :
Birmate
Model Number :
HG-UL-5W-SMD-G-RGB-D
Certification :
CE, RoHs, FCC, IP68, IK10
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
50000 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
Standard Export Carton Box
Beam angle :
15°/30°/45°/60°
Over-current Protection :
yes
product size :
Φ98×88mm
Voltage :
DC24V
Lamp body material :
316L Stainless steel +Tempered glass cover cover
IP Rank :
IP 68 waterproof
Description

316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval

Product details

1. IP Rate: IP68 Structural waterproof.

2. VDE standard outlet: standard cable length is 1 meter.

3. SS316L material, strong anti-corrosion ability.

4. RGB external control and DMX512 control are the best selling control in Heguang.

5. LED ground light underground with 8.0mmTempered glass transparent cover, thickness.

6. Grounding fixing method default: aluminum grounding pole (plastic grounding pole optional).

316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval

Specification

HG-UL-5W-SMD-G-RGB-D
Lamp paramater Material SS316L body+tempered glass cover+VDE rubber cable
length Φ98×88mm
Input voltage DC24V
Constant Driver yes
Over-current Protection yes
Wattage 5W±1W Epistar
Light lumen 130LM±10％
Beam angle 15°/30°/45°/60°
Color RGB(DMX512/External /Wifi control/automatic changing)
Specifics Operating Temperature (℃) -20~40℃
IP Rating IP68
Certificate CE, RoHS,FCC,IP68,IK10
Life-span 50,000 hours
Warranty 2Years
RGB Controller LED Ground lights 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2, external controller (can get the RGB color changing synchronous) 4 wires 3.RGB synchronous control design,2 wires connection 4, automatic changing 2 wires
Test position LED Grond light (Min)
Working temperature 28℃ Working temperature 40℃
land test(Min) 480 480
LED edge temperature(℃) 60 75

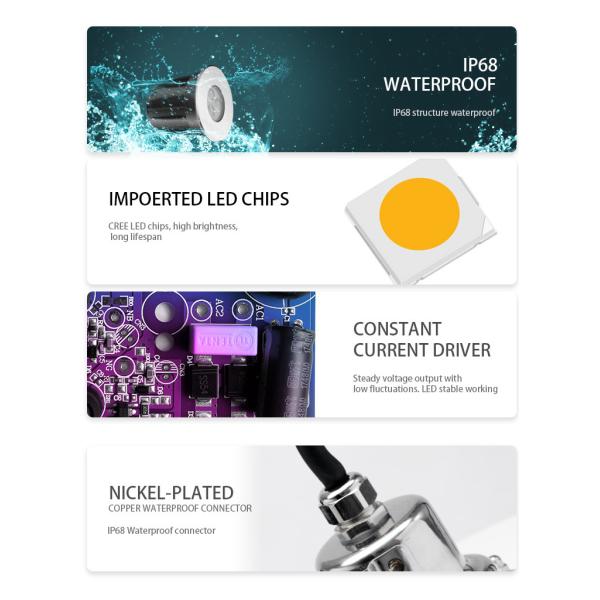

Product Features

1. Customized IP68 waterproof nickel plated brass design,good anti-corrosion.

2. Integrated bead lens with uniform lighting ,no dazzling, light transmittance ＞85%.

3. IK10 8mm transparent tempered glass, light transmittance ＞90%,no effect with the LED color temperature.

4. LED ground light underground with VDE standard outlet, resistant voltage 2000V, temperature resistance at -40℃ to 90℃.

5. CREE LED chips, RA ≥80, gold wire welding, EMC and ceramic make the heat dissipation faster, assure the longer lifespan of LED.

6. Constant current power driver, EMC anti-interference circuit.Efficiency ＞90%, make sure the LED is constant current working,the input voltage change no effect with the LED lifespan.

316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval

Advantage

1. Reliable quality with 100% 10m depth waterproof test.

2. In ground led lights 6w rgb must be 8 hours aging test and provide 2 Years warranty.

3. LED rgb in-ground landscape lights finished products all passed 30 steps quality inspection.

4. Thickened aluminum board :2-3mm,better heat dissipation with the conductivity :2.0W/(m.k),

5. Good looking stamping SS316 rivet screws,more stable, never fall off.

LED Ground light all passed 30 steps quality control, 100% waterproof at 10m depth,

8 hours LED agening test,100% inspection before deliver.

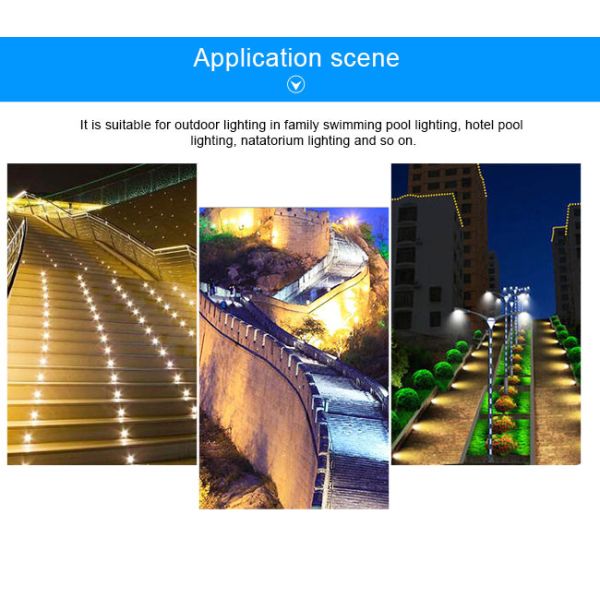

Application

IP68 Led Ground light Widely used as garden, community, lawn, park and other landscape lighting.

316L Stainless Steel Outdoor Led Ground Lights 6W IP68 SS316L With CE Approval

Packing List

Item

HG-UL-5W-SMD-G-RGB-D
Product weight 500G/PCS
color box size 625×380×325mm
Carton/pcs 50pcs/Carton
Carton size 610x410x410mm
Carton weight 28KG/CTN

FAQ

1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us directly or leave us the messge ,we will give priority to your inquiry.

2. Q: May I get samples to test quality and how long can I get them?

A: Yes, samples can be ready in 3-5 days.

3. Q: What is the MOQ?

A: NO MOQ,the more you order ,the cheaper price you will get .

4. Q: Can you accept small trial order?

A: Yes

5. Q: Do you accept the OEM&ODM?

A: Yes, OEM/ODM acceptable.

6.Q: what's the RGB control you have?

A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
