Specifications
Brand Name :
Birmate
Model Number :
HG-12DC-100W-FS
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation.
Payment Terms :
Paypal,L/C,T/T,etc.
Supply Ability :
10000 pcs per month
Delivery Time :
7-10 working days
Packaging Details :
1pcs in a box,Packing as required.
Product :
Power supply DC12V
Rated power :
100W
Input voltage :
AC220V
Output voltage :
DC12V
Size :
235mm(L)*68mm(W)*55mm(H)
Rated current :
8.3A
Description

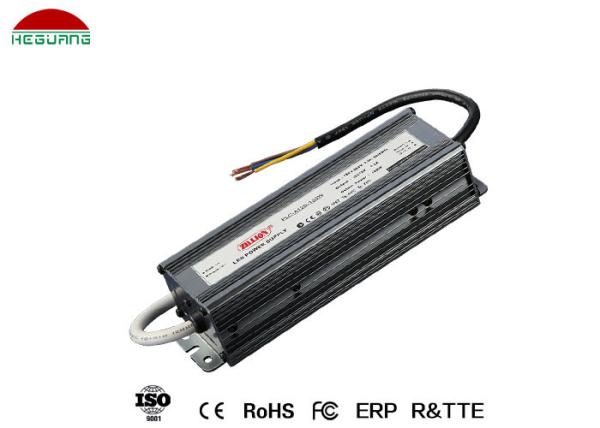

IP67 waterproof 100W DC12V output voltage LED pool light power supply

Specifications

HG-12DC-100W-FS
Output Rated Power 100W(MAX)
DC Voltage DC 12V
Rated current 8.3A
Voltage Tolerance ±5%
Input Voltage Range 180-260V AC
Frequency range 47-63Hz
Efficiency (Typ) 86%
AC Current 1.0A / 230V AC
Power Factor PF>0.6
Protection Over Load >120%
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
MTBF 20000hrs min.
Package Dimension 174*52*40mm
Package 40PCS, 24Kg
Remark!! IP rating IP67

Features

1. Protections: Short circuit/Over load/Over temperature.

2. IP67 design for indoor or outdoor installations.

3. EN60950-1 power unit.

4. Cooling by free air convection.

5. 100% full load burn-in test.

6. High reliability.

7. Suitable for moving sign applications.

8. 2 year warranty.

Dimension

Indoor / Outdoor LED Pool Light Power Supply , IP67 Waterproof LED Power SupplyIndoor / Outdoor LED Pool Light Power Supply , IP67 Waterproof LED Power Supply

FAQ

1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,

please call us or tell us in your email so that we will give priority to your inquiry .

2, Q: Do you accept the OEM&ODM?

A: Yes,OEM or ODM service are available.

3, Q: May I get samples to test quality and how long can I get them?

A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.

4, Q: What is the MOQ?

A: One piece is OK. Because any order is from sample.

5, Q: Can you accept small trial order?

A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.

Our service

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-trained and passionate sales & after- sale services who can speak fluent English language.
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.

R&D team

1. Two wires of RGB synchronous controller has the Patent number:

2. Two wires of DMX controller and decoder is also invented by our R&D team. And it saves the most cost of the cable from 5 wires to 2 wires. The effect of DMX is same.

3. All molds of our swimming pool light and underwater light is made by ourselves.

4. Quality is always our life to our R&D team and our manufacturer.
