Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
Specifications
Brand Name :
Tewei
Model Number :
T-REX P10
Place of Origin :
guangdong,china
Certification :
CE/ETL/FCC
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
flight case,plywooden case, carton, it is up to you.
Delivery Time :
20-25 days
Payment Terms :
T/T 30% deposit before production, 70% balance before delivery
Supply Ability :
4000 Set/Sets per Month
Model :
TR 10
Pixel Pitch(mm) :
P10
Pixel Density(dot/㎡) :
10000
LED Type :
SMD3535
Module Size(mm*mm) :
480X320
Module Resolution(dot*dot) :
48X32
Cabinet Size(mm*mm*mm) :
960x960x110
Cabinet Resolution(dot*dot) :
96x96
Cabinet Material :
Aluminum
Cabinet Weight(kg) :
22
Brihtness(cd/㎡) :
6000-6500
Refresh Rate(hz) :
3840
Gray Scale(bit) :
14
Viewing Angle (HA) :
140/140
Max Power Consumption(w/㎡) :
750
Ave Power Consumption(w/㎡) :
248
Input Voltage(V) :
100~240
Working Temperature(℃) :
-20~+60
Operation Humidity(rh) :
10%-85%
Ingress Pritection :
IP65
Working Environment :
Outdoor
Life Span(H) :
100,000
Certificate :
CE/ETL/FCC
Description

Product Description:

Our LED video billboards are designed with longevity in mind, which is why we offer warranties ranging from 2-5 years. You can trust that our digital LED billboard factories produce high-quality products that are built to last.

Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale

The LED arrangement of our electronic message boards is 1R 1G 1B, which means that each pixel is made up of one red, one green, and one blue LED. This arrangement creates stunning, vibrant colors that will make your message pop. Our brightness level ranges from 6000-6500 cd/㎡, ensuring that your message is visible even in bright sunlight.

Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale

Pixel density is also an important factor to consider when choosing an LED video billboard. Our electronic message boards have a pixel density of 10000 dots/㎡, which means that your message will be displayed with incredible clarity and detail.

Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale

Our LED video billboards are perfect for outdoor advertising, events, and promotions. They are easy to install and operate, and you can customize your message to suit your specific needs. With our LED video billboard, you can make a lasting impression on your target audience.

Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale

Features:

  • Product Name: LED Billboards
  • Pixel Pitch(mm): P10
  • LED Type: SMD3535
  • Led Arrangement: 1R 1G 1B
  • Refresh Rate(hz): 3840hz
  • Gray Scale(bit): 14

LED Billboards are full-color LED screens that are ideal for outdoor digital signage. With a pixel pitch of P10, LED Type of SMD3535, Led Arrangement of 1R 1G 1B, Refresh Rate of 3840hz, and Gray Scale of 14-bit, these LED video billboards deliver high-quality and vibrant displays that can grab the attention of your target audience.

Technical Parameters:

Model TR 4 TR 6.67 TR 8 TR 10
Pixel Pitch(mm) P4 P6.67 P8 P10
Pixel Density(dot/㎡) 62,500 22,500 15,625 10,000
LED Type SMD1921 SMD2727 SMD3535 SMD3535
Module Size(mm*mm) 480X320 480X320 480X320 480X320
Module Resolution(dot*dot) 120X80 72X48 60X40 48X32
Cabinet Size(mm*mm*mm) 960x960x110
Cabinet Resolution(dot*dot) 240x240 144x144 120x 120 96x96
Cabinet Material Aluminum
Cabinet Weight(kg) 22
Brihtness(cd/㎡) 5500-6000 5500-6000 6000-6500 6000-6500
Refresh Rate(hz) 3840
Gray Scale(bit) 14
Viewing Angle (HA) 140/140
Max Power Consumption(w/㎡) 750
Ave Power Consumption(w/㎡) 248
Input Voltage(V) 100~240
Working Temperature(℃) -20~+60
Operation Humidity(rh) 10%-85%
Ingress Pritection IP65
Working Environment Outdoor
Life Span(H) 100,000
Certificate CE/ETL/FCC

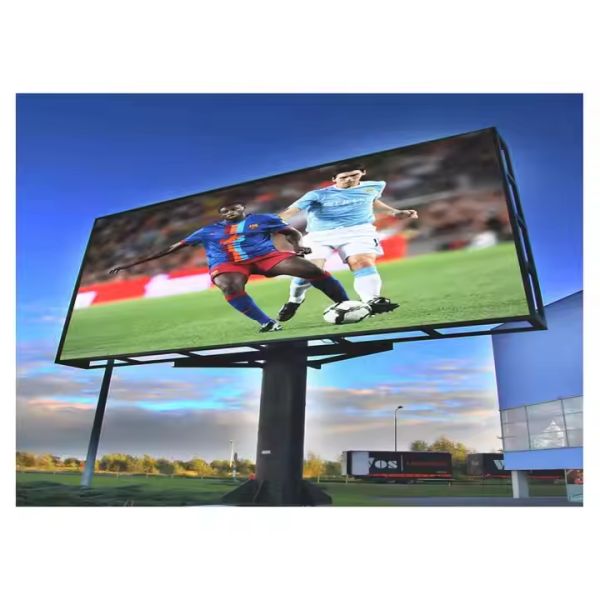

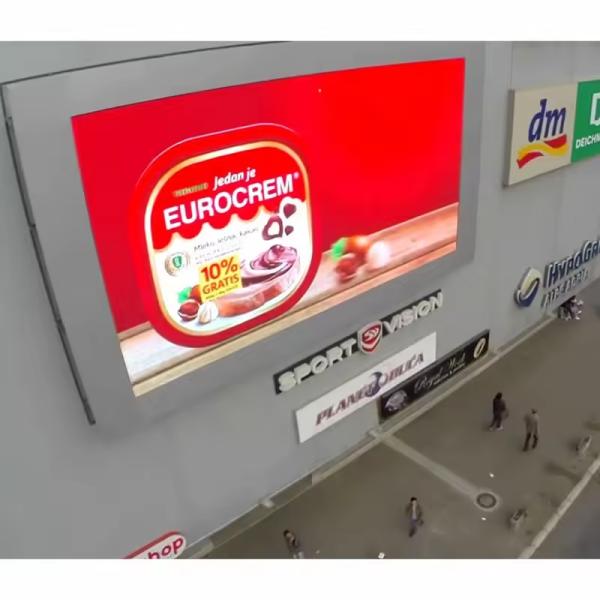

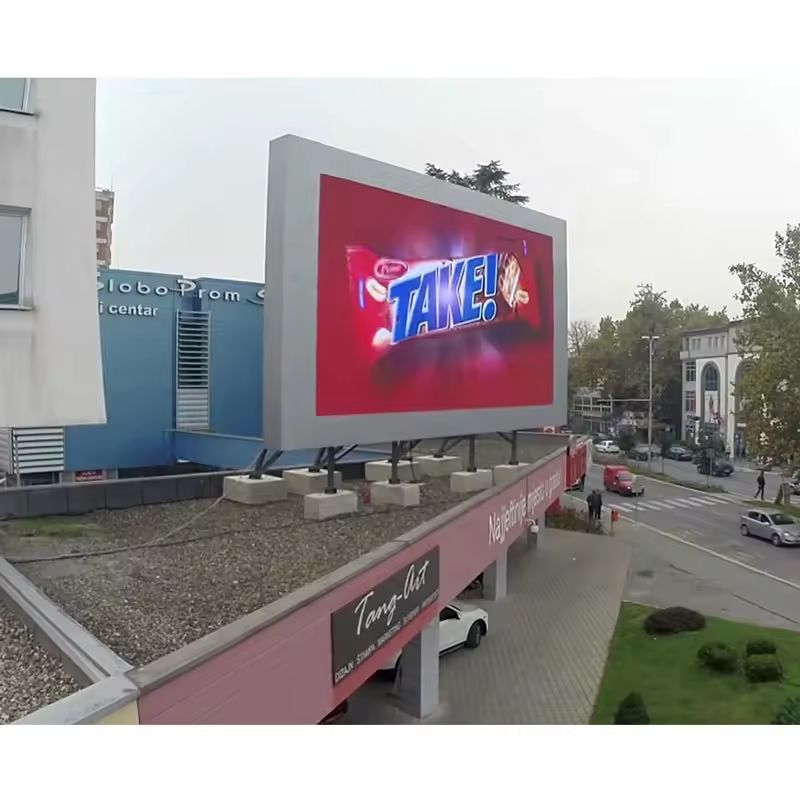

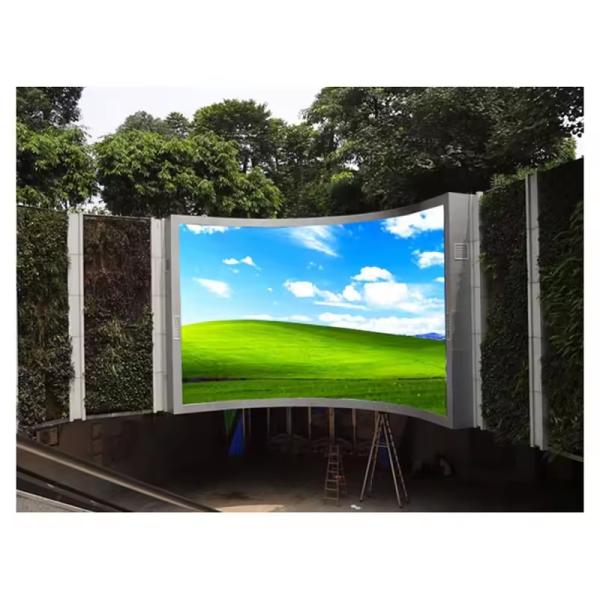

Applications:

Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale

Led Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray ScaleLed Billboard Advertising With 100 000 Hour Lifetime IP65 Aluminum Cabinet 14-Bit Gray Scale
