1) P0.78mm LED Display---Ultra-thin, ultra-light display with 600x337.5mm cabinet, offering seamless and vibrant visuals.
2) P0.93mm LED Display---High-definition, fan-free design with ultra-high refresh rate, ideal for indoor applications.
3) Perfect for control rooms, providing sharp and clear images with high precision.
4) Suitable for video conferencing with seamless visuals and natural colors.
5) Ideal for broadcasting rooms with ultra-high definition and a seamless display surface.
6) High-precision, ultra-thin display for detailed indoor applications with superior color fidelity.
7) Designed for security monitoring, offering high-resolution and reliable performance.
8) Versatile for various applications including broadcasting and command centers, with high refresh rates and vivid colors.
9) Suitable for creative displays, providing high-definition visuals and seamless design.
10) Ideal for high-traffic areas requiring detailed and vibrant displays, such as control rooms and conference centers.
1) Ultra-Thin Design---Overall thickness of only 27.5mm for easy integration into various environments.
2)Seamless Display---Provides a seamless and continuous display surface for high-definition visuals.
3) High Refresh Rate---3840Hz for smooth and flicker-free visuals.
4) High Precision---CNC high-precision die-casting aluminum construction ensures durability and stability.

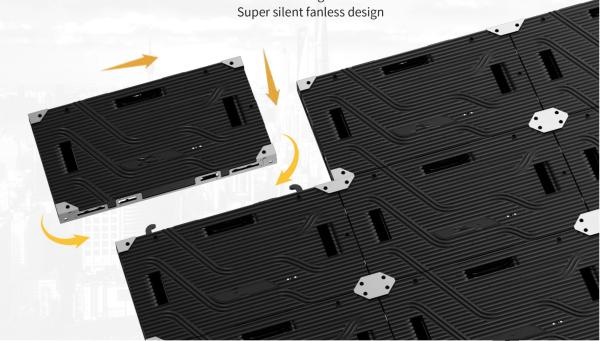

5) Fan-Free Design---Super quiet operation suitable for noise-sensitive environments.
6) Natural Color Representation---Delivers vibrant and natural colors for realistic image quality.
7) Ultra-Lightweight---Easy to transport and install due to its lightweight design.
8) No Drag Shadow---Ensures smooth visuals without motion blur or drag shadows.
9) Wide Viewing Angle---Consistent image quality from various viewing positions.
10) Energy Efficient---Low power consumption for cost-effective and eco-friendly operation.
Model | LION O.9 | LION 1.2 | LION 1.5 | LION 1.8 | LON 2.5 |
Pixel Pitch(mm) | P0.93 | P1.25 | P1.56 | P1.87 | P2.5 |
Pixel Density(dot/㎡) | 1,137,778 | 640,000 | 409,600 | 284,444 | 160,000 |
LED Type | 4in 1 | SMD1010 | SMD1010 | SMD1515 | SMD1515 |
Module Size(mm*mm) | 300*168.75 | 300*168.75 | 300*168.75 | 300*168.75 | 300*168.75 |
Module Resolution(dot*dot) | 320*180 | 240*135 | 192*108 | 160*90 | 120*135 |
Cabinet Size(mm*mm*mm) | 600*337.5*31 | 600*337.5*31 | 600*337.5*31 | 600*337.5*31 | 600*337.5*31 |
Cabinet Resolution(dot*dot) | 640*360 | 480*270 | 384*216 | 320*180 | 240*135 |
Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
Cabinet Weight(kg) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Brihtness(cd/㎡) | 100~600 | 100~600 | 100~600 | 100~600 | 100~600 |
Refresh Rate(hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
Gray Scale(bit) | 14 | 14 | 14 | 14 | 14 |
Viewing Angle(deg) | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 |
Max Power Consumption(w/㎡) | 640 | 640 | 640 | 640 | 640 |
Ave Power Consumption(w/㎡) | 192 | 192 | 192 | 192 | 192 |
Input Voltage(V) | 100~240 | 100~240 | 100~240 | 100~240 | 100~240 |
Working Temperature(℃) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Operation Humidity(rh) | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
Ingress Pritection | IP21 | IP21 | IP21 | IP21 | IP21 |
Working Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
Life Span(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Certificate | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC |
1)Control Rooms---Provides high-definition, reliable displays for monitoring and control.
2)Broadcasting Rooms---Suitable for broadcasting high-quality visuals with no flicker or drag shadows.
3) Video Conferencing---Enhances communication with clear and detailed visuals.
4) Command Centers---Reliable and high-definition displays for critical operations and decision-making.
5)Security Monitoring---Ensures high-resolution and detailed monitoring for security applications.
6)Exhibitions---Attracts attention with vibrant and high-definition displays.
7)Advertising---Ideal for high-impact advertising with clear and vivid visuals.
8) Performance Stages---Enhances stage performances with seamless and dynamic displays.
9) Public Information Displays---Suitable for displaying public information in high-traffic areas.
10) Creative Installations---Allows for flexible and creative display setups with high-definition visuals.
