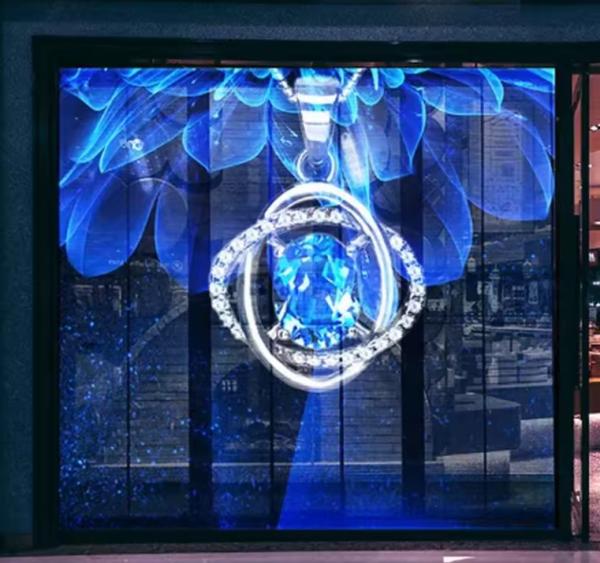

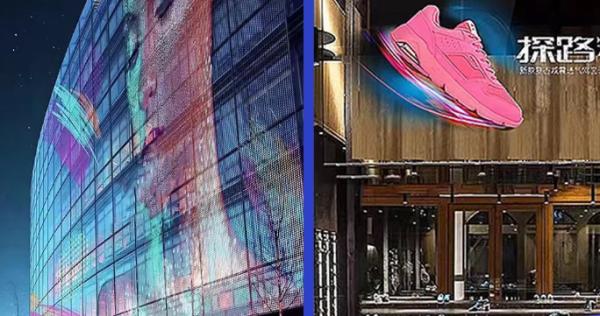

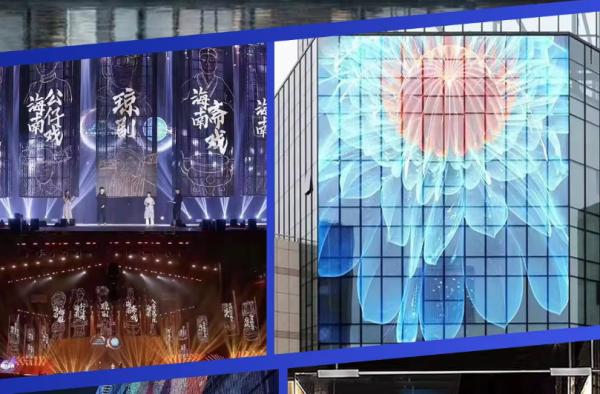

transparent LED display screen is a fixed indoor and outdoor fine LED display screen suitable for brand stores, lobbies, exhibition halls, display windows, glass walls, and other scenes.
1: High transparency, the transparency can reach 70-90%, and it looks invisible.
2: The weight is extremely light, only 10kg/㎡, 50% of the importance of the traditional LED display.
3: You can use our transparent LED screens to create eye-catching and unique effects for your business!
Outdoor | |||
Model | JF 3.91-7.81 | JF 5.2-10.4 | JF 10.42-10.42 |
Pixel Pitch(mm) | 3.91-7.81mm | 5.2-10.4mm | 10.42-10.42mm |
LED Lamp | SMD1921 | SMD2727 | SMD2727 |
Pixel Density(dot/㎡) | 32,768 | 18,432 | 9,216 |
Module Size | 500X125mm | 500X125mm | 500X125mm |
Module Resolution(mm*mm) | 128*16 | 96*12 | 48*48 |
Cabinet Resolution(px*px/㎡) | 256*64 | 192*48 | 96*48 |
Cabinet Size(mm*mm*mm) | 1000mm*1000mm*82mm/1000mm*500mm*82mm | ||
Scan | 8S | ||
Cabinet Material | Aluminum | ||
Transparancy | 45% | 50% | 50% |
Minimum ViewingDistance(m) | ≥5 | ≥7 | ≥10 |
Driving Mode | 1/8 | 1/4 | 1/2 |
Cabinet Weight(kg) | 7kg/㎡ | ||
Brihtness(cd/㎡) | 5500-6000nits | ||
Refresh Rate(hz) | 3840Hz | ||
Gray Scale(bit) | 14-16 | ||
Viewing Angle(deg) | H 120/V120 | ||
Consumption(W/sqm) | Max Power≤800 | ||
Input Voltage(V) | Average Power≤260 | ||
Max.Power Consumption | 800W/㎡ | ||
Ave.Power Consumption | 260W/㎡ | ||
Working Temperature(℃) | -20~+60 | ||
Operation Humidity(rh) | Outdoor 10-60% | ||
Ingress Pritection | IP65 | ||
Working Environment | Outdoor | ||
Life Span(H) | 100,000 | ||
Certificate | CE/ETL/FCC |
