Model | TW-DP 2.9 | TW-DP 3.9 | TW-DP 4.8 |
Pixel Pitch(mm) | 2.9 | 3.9 | 4.8 |
Pixel Density(dot/㎡) | 112,896 | 65,536 | 43,264 |
LED Type | SMD1415 | SMD1921 | SMD1921 |
Module Size(mm*mm) | 250*250 | 250*250 | 250*250 |
Module Resolution(dot*dot) | 84*84 | 64*64 | 52*52 |
Cabinet Size(mm*mm*mm) | 500*1000*80 | 500*1000*80 | 500*1000*80 |
Cabinet Resolution(dot*dot) | 168*336 | 128*256 | 104*208 |
Cabinet Material | Aluminum | Aluminum | Aluminum |
Cabinet Weight(kg) | 16/12 | 16/12 | 16/12 |
Brihtness(cd/㎡) | 4500~5000 | 4500~7000 | 4500~7000 |
Refresh Rate(hz) | 1920~3840 | 1920~3840 | 1920~3840 |
Gray Scale(bit) | 14 | 14 | 14 |
Viewing Angle(deg) | H 160 /V140 | H 160 /V140 | H 160 /V140 |
Max Power Consumption(w/㎡) | 800 | 800 | 800 |
Ave Power Consumption(w/㎡) | 240 | 240 | 240 |
Input Voltage(V) | 100~240 | 100~240 | 100~240 |
Working Temperature(°C) | -20~+60 | -20~+60 | -20~+60 |
Operation Humidity(rh) | 10%-~90% | 10%-~90% | 10%-~90% |
Ingress Pritection | IP65 | IP65 | IP65 |
Working Environment | Outdoor | Outdoor | Outdoor |
Life span(H) | 100,000 | 100,000 | 100,000 |
Certificate | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC |
Products Description:
1) The Dolphin Series is an innovative and patented outdoor LED display screen solution.
2) It features a dimension of 500x500mm and offers pixel pitches of 2.97mm, 3.91mm, 4.818mm.
3) The display screen is designed for outdoor use and provides a high-brightness output of 7000nits.
4) It is suitable for various applications such as digital signage systems, chain stores, street furniture, billboards, and shopping malls.
5) The outdoor led screen comes with a total front and rear service for easy maintenance.
Products Features:
1) Ultra High Brightness: The display screen offers an ultra-high brightness of 10000nits, ensuring clear visibility even in direct sunlight.
2) The die-casting aluminum module and power box provide efficient heat dissipation, ensuring the longevity and stability of the display.
3) Economic Efficient: The display is energy-saving, helping to reduce power consumption and operational costs.
4) Stable and Reliable Performance: Advanced technology and quality control ensure stable and reliable performance, minimizing the risk of downtime.
5) Total Front & Rear Service: The display offers easy access for maintenance from both the front and rear, making servicing more convenient.
Products Appplications:

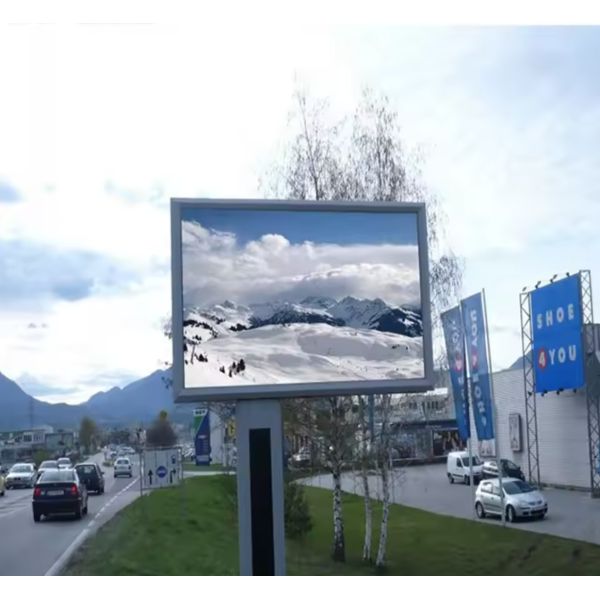

1) Digital Signage System: The Dolphin Series can be used in digital signage systems to display advertisements, promotions, and information in outdoor locations.
2) Chain Store: It is suitable for chain stores to attract customers and promote products with its high-brightness display.
3) Street Furniture: The display can be integrated into street furniture such as bus shelters and information kiosks to provide useful information to the public.
4) Billboard: It is ideal for billboards, delivering clear and impactful messages to a wide audience.
5) Shopping Mall: It can be used in shopping malls to enhance the shopping experience by providing dynamic displays and advertisements.
