Specifications
Brand Name :
COURSERTECH
Model Number :
LDZG-16701
Place of Origin :
CHINA
MOQ :
50 SETS
Price :
USD280.00/PER SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 SETS PER MONTH
Delivery Time :
30 working days
Packaging Details :
Carton and Wrapping film Packing
Used for :
court
Color :
White,black,red,blue and so on.
lumen :
180 Im/W
Light pole height :
12M
IP Grade :
IP 65
Working life :
>80000 hours
Voltage :
100-240V
CCT :
3000-4500K
light source :
100-200W
Pole height :
10-12m
Weight :
100KG
Description

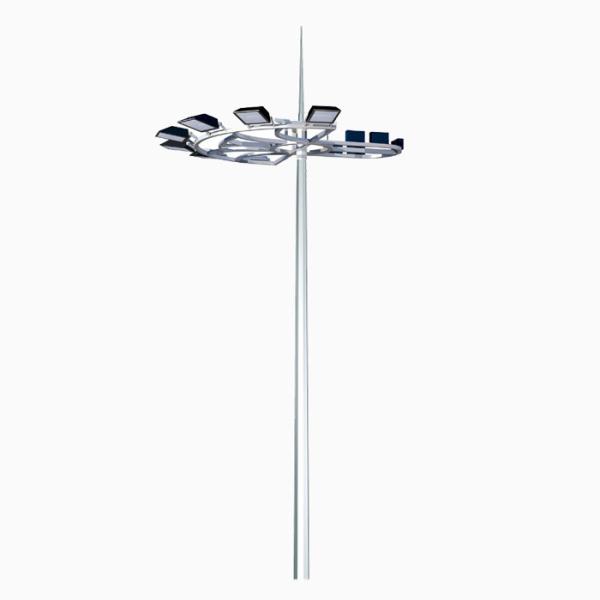

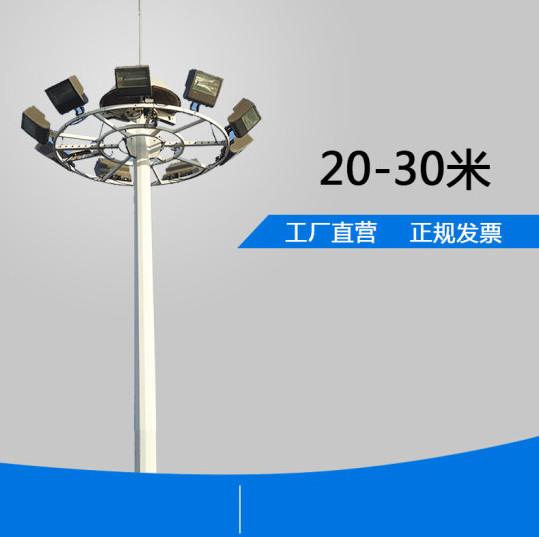

Non standard stadium high pole lamp

The main pole is made of high-quality steel plate, and the top can be divided into frame, closed, ball, frying dish, landscape, etc.
High mast series large-area lighting is the most widely used and effective light source configuration form. It is mainly suitable for places requiring large-area centralized lighting, such as ports, airports, highways, city squares, multi-storey interchanges, large stadiums and gymnasiums. It is a functional lighting product.
The height of the pole is more than 25 meters, which can also be customized. The light source is strong, the illumination is wide, and the visual conditions can be similar to that in the daytime. High illumination, brightness and uniformity.
Coursertech can customize various high pole street lamps, solar LED street lamps, etc

Parameter
/Item No.		 JMJX-30 JMJX-60 JMJX-90 JMJX-120 JMJX-150
Rated Power 30W 60W 90W 120W 150W
LED Chip 3W/pc 3W/pc 3W/pc 3W/pc 3W/pc
LED Quantity 24 48 72 96 120
Color Temperature 4500-5500K 4500-5500K 4500-5500K 4500-5500K 4500-5500K
Input Voltage AC100-260V AC100-260V AC100-260V AC100-260V AC100-260V
Frequency Range 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Power Factor >0.97 >0.97 >0.97 >0.97 >0.97
LED
Luminous Efficiency		 140lm/w 140lm/w 140lm/w 140lm/w 140lm/w

Lamp's Efficiency		 >92% >92% >92% >92% >92%
IP Grade IP65 IP65 IP65 IP65 IP65
Working life >80000HRS >80000HRS >80000HRS >80000HRS >80000HRS

Environment Temperature		 -30℃to+65℃ -30℃to+65℃ -30℃to+65℃ -30℃to+65℃ -30℃to+65℃
Light Body material Aluminium Aluminium Aluminium Aluminium Aluminium
Pole Height 6m 7m 9m 10m 12m
Central Illumination 40lux(6m) 55lux(7m) 48lux(9m) 47lux(10m) 40lux(12m)
Pole Distance 25M 35M 40M 45M 50M
Installing Size Φ61mm Φ61mm Φ61mm Φ61mm Φ61mm
Products Size 520*380*120mm 600*380*120mm 720*380*120mm 840*380*120mm 960*380*120mm
Packing Size 580*445*185mm 660*445*185mm 780*445*185mm 900*445*185mm 1020*445*185mm
Net Weight 8KG 10KG 12KG 14KG 16KG
Gross Weight 10KG 12KG 14KG 16KG 18KG
