Specifications
Brand Name :
Coursertech
Model Number :
JMLW-180
Place of Origin :
CHINA
MOQ :
100
Price :
100USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20000 sets /month
Delivery Time :
25-30 working days
Packaging Details :
CARTON
Material :
Iron and aluminium / Customizable
Lamp efficiency :
>92%
CCT :
3000-6500K
Installing Size :
Φ61mm
Central Illumination :
40lux(10m)
Frequency range :
50-60Hz
Lumen :
150lm/w
Voltage :
100-265V
PF :
0.9
IP :
65
Color :
Blue, Green, Golden and Customizable
Life time :
80000HRS
pole height :
10m / Customizable
Power :
180w / Customizable
Description

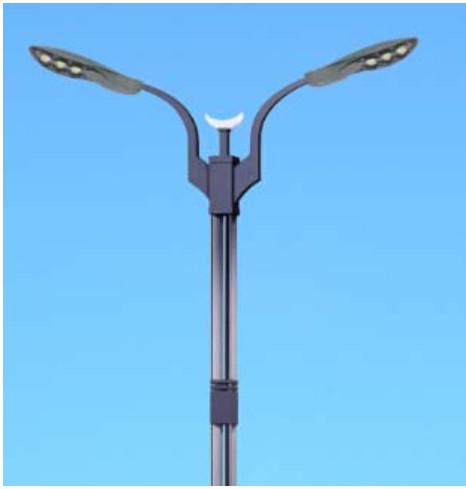

Led Street Light Lighting Lamp Color Temperature Optional High Color Rendering Index

The price of LED street lights: single-arm lights, double-arm lights, road lights, self-curved arms.

Lamp pole: tapered pole, one-time forming, made of high-quality Baosteel Q235 steel, thickness 3 to 4mm, pick pole is made of 60mm diameter steel pipe, the overall hot-dip galvanized + spray treatment, the surface is smooth, the color is basically the same, and the service life is not less than 20 years , The welding method is automatic argon arc welding.

LED light source: the single power is greater than or equal to 1w, the light efficiency is 110-130LM/W, the luminous performance is good, and the color rendering is strong.

After-sales warranty: LED light source, solar controller, solar lithium battery warranty for three years, solar panel warranty for 7 years, light pole warranty for 15 years, hot-dip galvanizing guarantees no rust or damage within 15 years (non-human factors)

Installation problems: We can provide solar street light installation guidance videos and installation instructions or provide technical personnel to guide the installation.

Delivery time: If there is no stock in the factory, the delivery time is about 10 to 12 days due to the technical requirements of the pole and the factors of ordering in the factory.

200W 240W 150w Led Street Light Parking Lot 4000K 18000lm IP65 90-265V Rs2926

1 Rated Power 80-150w 200-250w
2 LED Chip 5W/pc 5W/pc
3 LED Quantity 88 132
4 CCT 3500K-4500K 3500K-4500K
5 Voltage AC100-265V AC100-265V
6 Frequrncy Range 50-60Hz 50-60Hz
7 Power factor 0.975 0.975
8 Lumen 150lm/w 150lm/w
9 Total lumen 12000lm 30000lm
10 IP IP65 IP65
11 Working life >80000HRS >80000HRS
12 Environment Temperature -30℃to+65℃ -30℃to+65℃
13 Light Body material Aluminium Aluminium
14 Pole Height 10-12m 12m
15 Installing Size Φ61mm Φ61mm
16 Products Size 885*361*166mm 1053*379*174mm
17 Packing Size 900*380*190mm 1070*400*180mm
18 Net Weight 15KG 24KG
19 Gross Weight 16.5KG 26KG

1.Brand new innovation patent light design,the 11° deviation angle design for the portrait light curve,
which is the first one in the domestic,make more light towards to the middle of the road.
And the transversal light angle is 135°with the 0.65 regularity to avoid the dark area radically.
2.Innovated integration heat radiation light body,make utmost contact area to the air,
less joint seam between aluminum basilar plate and the heat radiation body,make the heat emanate quickly.
The structure temperature is around 45 ℃ which prolong the light working life,
3.Dimmable power driver is invented by Institute of electronic of Chinese Academy of Sciences,
which makes the light working life more than 5000hours.
4.High temperature safety illuminance protecting system:
In order to insure the LED street light working effciency and long life in the favourable working condition(within 65℃),
coursertech street lightswill switch into half power if the light exceed the standard temperature(65℃)
5.Dimmable time-delay power interruption system:the time-delay is used for the LED automatic control for Coursertech street lights,
which means after 6 hours(it can be adjusted according to the actual requirement),the light will switch into half power automatically,
to save the power while keep the basic brightness.
6.LED chip adopted is Germany Osram,American Bridgelux and Cree,reliable quality!
Zhejiang Coursertech Optoelectronics Co.,Ltd.,established in 1987,is a stock enterprise that professionally manufactures

illumination lights.The lights with "COURSER"brand have already enjoyed a certain reputation in both domestic and
international market.Coursertech has passed ISO 9001:2008,SGS,CCC,RoHS certificates etc.,meanwhile got 55 national
patents.

200W 240W 150w Led Street Light Parking Lot 4000K 18000lm IP65 90-265V Rs2926

Company:Zhejiang Coursertech Optoelectronics Co.,Ltd.,
Online inquiry website :https://www.led-solarstreetlights.com/
Website: www.courser-group.com
Contact Person : Nola Huang
E-mail: nolahuang@courser-group.com
Whatsapp:0086-15868323305
