Specifications
Brand Name :
Coursertech
Model Number :
JMJX-80, JMJX-150
Certification :
202130742917.X
Place of Origin :
CHINA
MOQ :
100
Price :
120USD
Payment Terms :
T/T
Supply Ability :
20000 sets a month
Delivery Time :
30 work days
Packaging Details :
CARTON
Material :
Custom / Iron and aluminium
rated power :
80-150W
Lamp efficiency :
＞92%
color temperature :
3500-4500k
Installing Size :
Φ61mm
Central Illumination :
50lux(10m)
Lumen :
150lm/w
Voltage :
AC100-260V
IP grade :
65
Color :
Green,Golden and Black / Custom
Working life :
80000HRS
Description

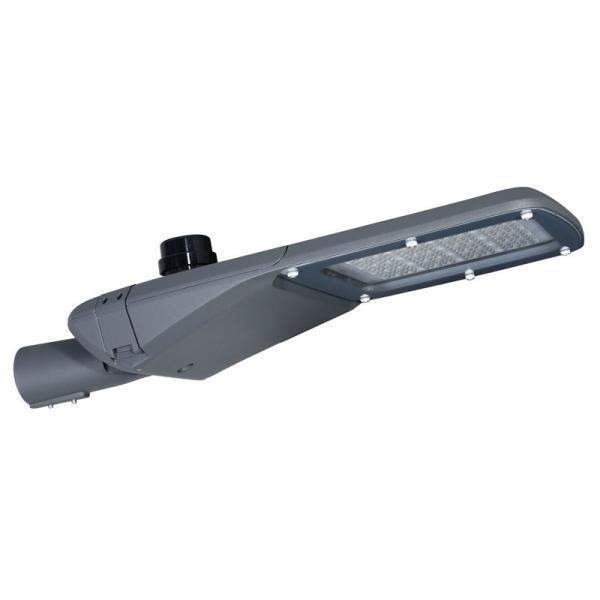

150 Watts 80 Watts Special Design Die Cast Aluminum LED Street Light

Die Cast Aluminum led street light lamp 5 years warranty
Two main styles 150 Watts 80 Watt Die Cast Aluminum LED light Street LightTwo main styles 150 Watts 80 Watt Die Cast Aluminum LED light Street Light

1: The newly invented light distribution design, the first domestic vertical light distribution curve with 11° eccentric angle design, makes more light cast to the middle of the road, and the light energy is fully utilized. The lateral beam angle reaches 160°. The uniformity of illumination can reach more than 0.65, completely eliminating the dark area.

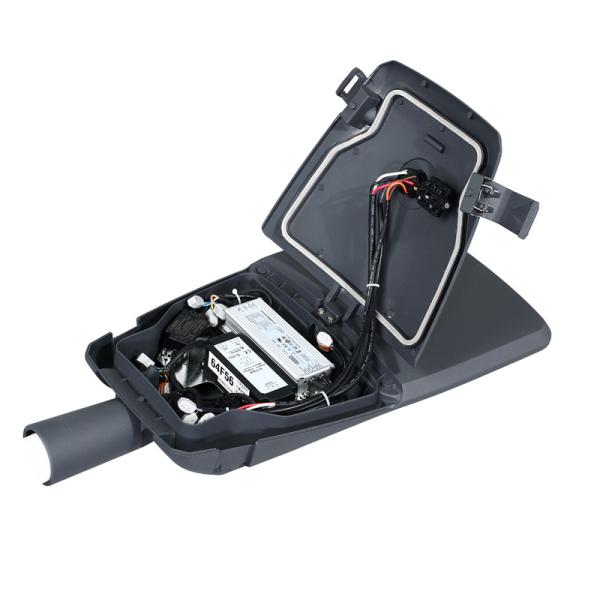

2. Innovative integrated heat dissipation lamp body, the contact area between the lamp body and the air is as large as possible, and the aluminum substrate and the heat dissipation body are almost seamlessly connected, which can quickly dissipate heat and achieve rapid heat dissipation. The temperature of the structure is controlled at about 45° to maximize the service life of the lamps.
3. The energy-saving LED drive power is regulated in the AC period, and the DC light-controlled time-controlled MPPT solar controller is used. The service life of the LED lamps is 50,000-80,000 hours.
Parameter JMLW150
额定功率Rated Power 80-150W
LED芯片 LED Chip 5W/PC
LED数量 LED Quantity 88
色温 Color Temperature 3500-4500K
输入电压 Input Voltage AC100-260V
电源频率 Frequency Range 50-60Hz
功率因素 Power Factor 0.975
灯具效能 Luminous Efficiency 150lm/w
灯具总光通量 Lamp's Efficiency 1200lm
防护等级 IP Grade ip65
使用寿命 Working Life ＞80000HRS
工作温度 Environment Temperature －30°C ~ + 65°C
材料 Light Body Material 压铸铝 Die cast aluminum
杆高 Pole Height 10-12m
中心照度 Central lllumination 50lux(10m)
杆距 Pole Distance 40m
安装管直径 Installing Size 61mm
产品尺寸 Products Size 885*361*166mm
包装尺寸 Packaging Size 900*380*190mm
净重 Net Weight 15kg
毛重 Gross Weight 16.5kg


Two main styles 150 Watts 80 Watt Die Cast Aluminum LED light Street Light



Company:Zhejiang Coursertech Optoelectronics Co.,Ltd.,
Online inquiry website :https://www.led-solarstreetlights.com/
Website: www.courser-group.com
Contact Person : Nola Huang
E-mail: nolahuang@courser-group.com
Whatsapp:0086-15868323305


Two main styles 150 Watts 80 Watt Die Cast Aluminum LED light Street LightTwo main styles 150 Watts 80 Watt Die Cast Aluminum LED light Street Light
