Specifications
Brand Name :
SOGA
Model Number :
SG-JR-300W
Certification :
ROHS CE IP65
Place of Origin :
China
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
1000
Delivery Time :
15
Wattage/Module :
150W
Bracket :
Stainless steel
Windload Test :
17 class windload(56.1-61.2m/s, 240kg/square meter)
IK Rate :
IK09
Optional Accessories :
Zigbee Controller, Zigbee Wall Switch
Feature :
Lightweight
Description

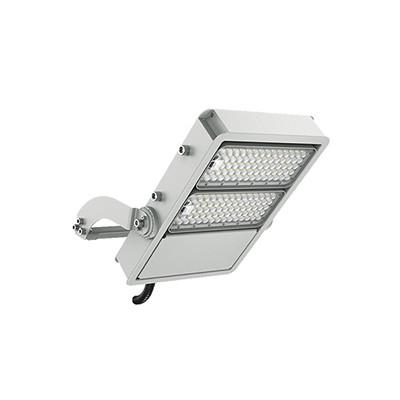

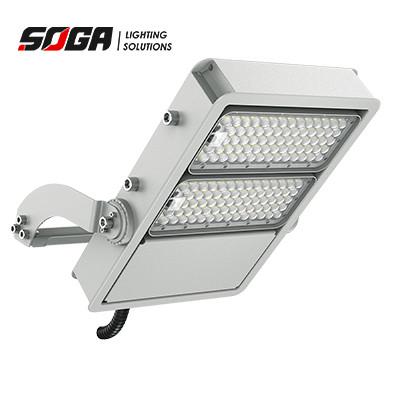

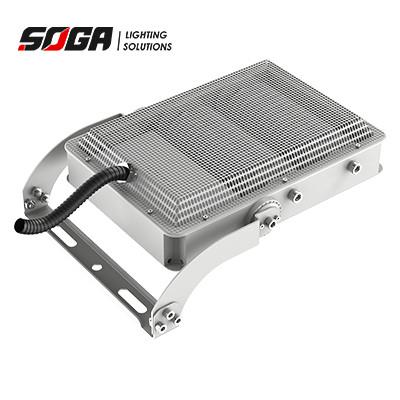

LED Sports Field Lights IP66 Eagle Series Sports Light Tool-Free Driver Box

SPECIFICATIONS

SOGA patent design under the inspiration of Jaguar. Which has the most powerful hunting ability in the world. Powerful and not giving the opponent a chance to counterattack, is the king on the field. So with Jaguar series , Most Powerful and the king of the lamp market are the most outstanding feature of SOGA Jaguar Series Sports lights, and also with other competitive features as below:

Patent SOGA Streamlined Design

High-quality Die-casting aluminium housing

Vertically and Horizontally Adjustable Modular Design

Smaller Size and Lighter Weight

Anti-Glare & Obtrusive Light Control

Easy Aiming Check One-size Screws for all adjustment

Tool-free driver box

Quick Connected Electrical Box

Wireless Smart Control

Wireless or DMX Entertainment System

Warranty 5 Yrs Warranty
Wireless Control Available
IP Rate IP66
Beam Angle 20°, 40°, 60°, asymmetric A60, A60W, A70, A70W
Bracket Stainless steel
Driver INVENTRONICS, MEANWELL, SOSEN
IK Rate IK09
Windload Test 17 class windload(56.1-61.2m/s, 240kg/square meter)
L70 Hour >100.000h
Optional Accessories SPD, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch

MODEL SG-JR-150W SG-JR-300W SG-JR-450W SG-JR-600W SG-JR-750W SG-JR-900W SG-JR-1200W SG-JR-1500W

WATTAGE

Symmetrica

150W 300W 450W 600W 750W 900W 1200W 1500W

MODEL QTY

1 2 3 4 5 6 8 10

LUMEN EFFICIENCY

Symmetric

170LM/W 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W
LUMEN OUTPUT 25,500LM 51,000LM 76,500LM 102,000LM 127,500LM 153,000LM 204,000LM 255,000LM

Wireless or DMX Entertainment System

SOGA Wireless or DMX Entertainment System is designed to provide an amazing audio and visual experience to all players and fans. Millions of different colors changing effects synchronized to music beats can be simply wirelessly set up on your phone or PC or by your existing DMX system. Whether it’s player introductions, big plays, halftime shows, or post-game celebrations, SOGA Entertainment system will be an excellent option to help create an unforgettable stadium experience.

IK09 Anti Glare LED Sports Field Lights Lightweight IP66 Eagle Series

Smaller Size and Lighter Weight

Each module is 150w but with only 286*124*74.5MM

and 1174g . best option for retrofits,

new installations, and maintanence.

IK09 Anti Glare LED Sports Field Lights Lightweight IP66 Eagle Series
