Specifications
Brand Name :
UNIKE
Model Number :
UNK-FL-E-50W per module-100w
Place of Origin :
China
MOQ :
1
Luminous efficacy :
120~160lm/w±5%
Lamp chip :
Lumileds 2835/3030 smd
Color temperature :
2700-6500K optional
Input :
AC100~305V, 50/60Hz
Warranty :
2/3/5 years
Lens Angle :
15°/30°/60° optional
Lumen :
12000~16000lm
Lamp Size :
239x318x68mm

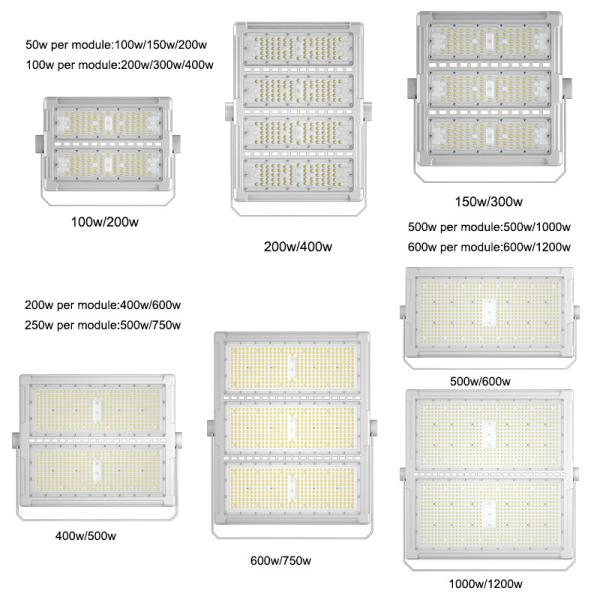

Description

LED Flood Light Outdoor Soccer Stadium Sports Field Lighting 160lm/W

Module
Power
Light Efficiency
Lumen
Light Source
Lamp Size
50W module*2
100w
120~160lm/w
12000~16000lm
2835/3030SMD
239x318x68mm
50W module*3
150w
120~160lm/w
18000~24000lm
2835/3030SMD
330x318x71mm
50W module*4
200w
120~160lm/w
24000~32000lm
2835/3030SMD
421x318x71mm
50W module*5
250w
120~160lm/w
30000~40000lm
2835/3030SMD
421x318x71mm
100W module*2
200w
120~160lm/w
24000~32000lm
2835/3030SMD
295x386x77mm
100W module*3
300w
120~160lm/w
36000~48000lm
2835/3030SMD
410x386x81mm
100W module*4
400w
120~160lm/w
48000~64000lm
2835/3030SMD
525x386x77mm
200W module*2
400w
120~160lm/w
48000~64000lm
2835/3030SMD
453x525x82mm
200W module*3
600w
120~160lm/w
72000~96000lm
2835/3030SMD
640x525x82mm
250W module*2
500w
120~155lm/w
60000~77500lm
2835/3030SMD
453x525x82mm
250W module*3
750w
120~155lm/w
90000~116250lm
2835/3030SMD
640x525x82mm
500W module*1
500w
120~155lm/w
60000~77500lm
2835/3030SMD
385x671x88mm
500W module*2
1000w
120~155lm/w
120000~155000lm
2835/3030SMD
685x671x88mm
600W module*1
600w
120~150lm/w
72000~90000lm
2835/3030SMD
385x671x88mm
600W module*2
1200w
120~150lm/w
144000~180000lm
2835/3030SMD
685x671x88mm

Installation steps for the floodlight:

1. Determine the installation location
Select the installation site, check the installation environment, and make sure the power is connected
2. Prepare tools and materials
Tools: electric drills, screwdrivers, wrenches, steel rulers, levels, cable scissors, insulating tape, etc.
Accessories: flood light body, bracket or mounting bracket, screws, expansion bolts, connecting cables, waterproof joints, etc.
3. Install the bracket
Drilling: Depending on the position of the bracket, use an electric drill to punch holes in walls, floors, or other fixed surfaces. Make sure the hole is firmly and accurately positioned.
Fixing the bracket: Fix the bracket by driving expansion bolts or screws into pre-drilled holes.
4. Install a floodlight
Connect the luminaire with the bracket
Adjust the angle: Make sure the light is hitting the area that needs to be illuminated correctly.
Disconnect the power supply
connection
Waterproof treatment: Waterproof treatment is carried out at the cable connection
Check the wiring: Check that all wiring is safe and not loose, and make sure there are no exposed wire sections.
6. Testing
Check the function: After the power is turned on, test whether the flood light is working normally and whether it can provide enough light.
