100w 200w 300w 400w 500w All in One Smart Solar Powered LED Street Light

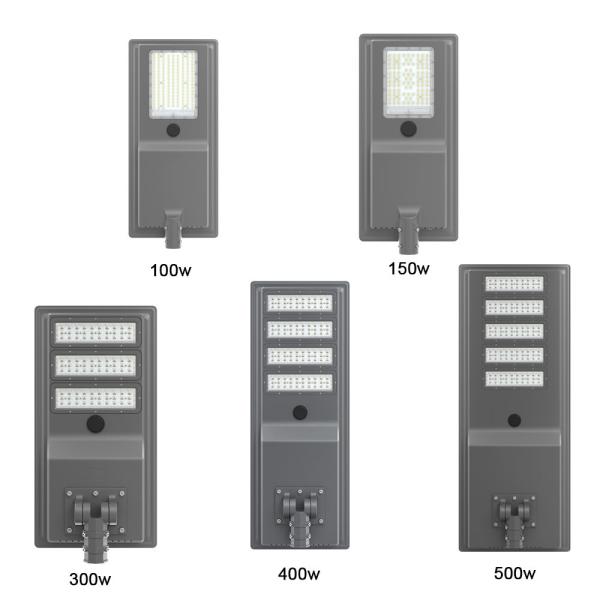

Power | Model | Solar Panel | Battery | Light Source | Lamp Size | Installation Height |
100w | FT3-01 | 18v/45w 18v/53w | 3.2V 50AH | 3030/5054smd | 813.5*373*86mm | 4-6m |
200w | FT3-02 | 18v/65w 18v/75w | 3.2V 70AH | 3030/5054smd | 933.5*408*86mm | 6-7m |
300w | FT3-03 | 18v/60w 18v/70w | 3.2V 80AH | 3030/5054smd | 819*416*168mm | 6-8m |
400w | FT3-04 | 18v/85w 18v/95w | 3.2V 120AH | 3030/5054smd | 1118.5*416*168mm | 7-9m |
500w | FT3-05 | 18v/135w 18v/150w | 12.8V 60AH | 3030/5054smd | 1338.5*523.5*168mm | 9-12m |
Product Features:
1.Special glass cover, anti-salt fog, longer life

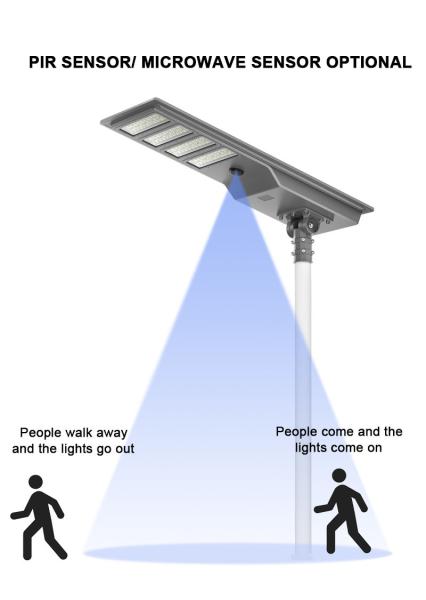

2.160LM/W+timed dimming+microwave induction+infrared induction.
3.80*150°190*/120°wide lighting angle, bringing the same lighting effect as spotlight pole.
4.2-year warranty, we will repair or replace damaged parts for free during the warranty period.
Die-casting aluminum integrated solar street light features:
Die-cast aluminum housing features:
1. Heat dissipation performance: The thermal conductivity of aluminum alloy is second only to silver and copper, which can quickly export the heat generated by the LED light source and controller, avoid the aging of components caused by high temperature, and prolong the life of the lamp.
2. Weather resistance: The surface passivation layer can resist ultraviolet rays, rain and salt spray corrosion, and adapt to outdoor harsh environments, especially suitable for coastal or high humidity areas.
20. Lightweight and strength: The die-casting process makes the lamp body compact and lightweight (30%-50% lighter than steel), while maintaining high wind resistance (can withstand 10 typhoons.
All-in-one integrated design
1. Module integration: Integrate solar panels, lithium batteries, LED light sources, intelligent controllers and human body sensing modules (PIR) into lamp heads or light poles to reduce external cables and failure rates79.
2. Maintenance-free battery: using lithium iron phosphate battery or long-life lithium-ion battery (life up to 8 years), support quick replacement, users can operate by themselves, no need for professional and technical personnel.
