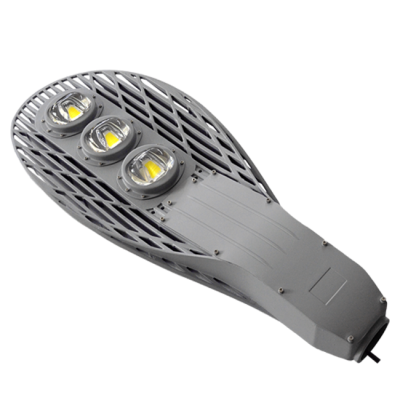

AC85 - 265V IP65 led street light ST150WW With Wide Voltage Range
AC85 - 265V IP65 led street light ST150WW With Wide Voltage Range
Specifications
Place of Origin :
China, shenzhen
Brand Name :
Nomo
Certification :
CE, UL,FCC, ISO, ROHS,SAA
Model Number :
PVSL
Waterproof :
IP65
Efficiency lumen :
110lm / w
Beam angle :
60-120 degree
Option :
Dimming
CCT :
2700k-6500k
CRI :
>80
Power :
150W
MOQ :
1
Packaging Details :
carton
Delivery Time :
within 15 working days
Payment Terms :
T/T, L/C, Western union
Supply Ability :
1000000sets
Description

150W led street light

  • AC85 - 265V IP65 led street light ST150WW With Wide Voltage Range
    • Model NO.

AC85 - 265V IP65 led street light ST150WW With Wide Voltage Range

Ø Using the independent intellectual property rights encapsulates the high power LED, whichcansave electricity more than 65% than the traditional street light.

Ø The first radiator and lamp case integration design, LED directly to the shell and is tightly connected with the ideal cooling effect, and fully guarantee the LED life.

Ø Shell encapsulated with aluminum alloy, which can effective cooling, prevent water, and meet IP65.

Ø No bad glare, stroboscope or startup delay, eliminating the disadvantage of the traditional street light.

Ø Environmental-friendly without contamination, with no Lead, Hg or any other pollution elements included, No pollution to the environment

AC85 - 265V IP65 led street light ST150WW With Wide Voltage Range

High power LED

AC85 - 265V IP65 led street light ST150WW With Wide Voltage Range

AC85 - 265V IP65 led street light ST150WW With Wide Voltage Range

High-density aluminum casting, high integration, high performance, beautiful appearance, easy installation.

AC85 - 265V IP65 led street light ST150WW With Wide Voltage Range

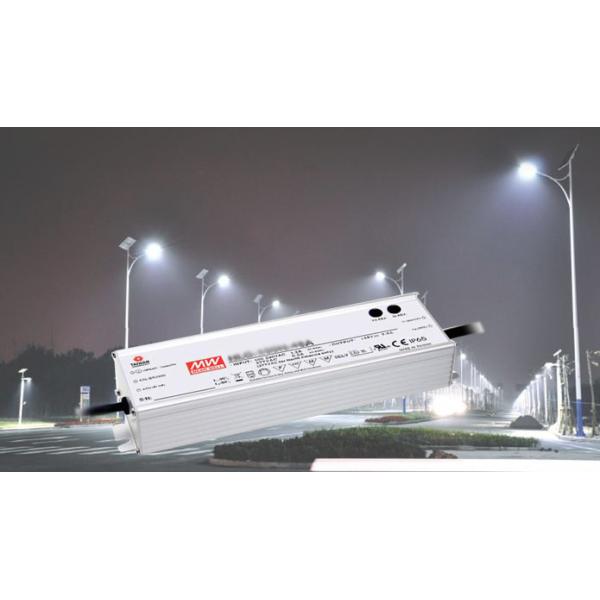

High quality driver manufactiurer, reliable for customer.

Technical Parameters

Power

60W

80W

100W

150W

Input Voltage/Frequency

100-240VAC/50-60Hz

Input Current(Typ)

<0.55A/115VAC <0.26A/230VAC

<0.7A/115VAC <0.35A/230VAC

<0.87A/115VAC <0.43A/230VAC

<1.3A/115VAC <0.65A/230VAC

Output Voltage

28-36V Typ=30V

Output Current

2A

2.6A

3.3A

5A

Efficiency(Typ)

>93%

Power Factor(Typ)

PF＞0.98/115VAC PF＞0.95/230VAC

LED Chips Quantity LED

1 Pcs

1

2 Pcs

3 Pcs

LED Consumption LED

60W

80W

100W

150W

System Consumption

64W

83W

105W

155W

LED Luminous Efficiency LED

100-110Lm /W

Lamp’s Initial Flux

4800Lm

6400

8100 Lm

12150Lm

Color Temperature

2700K～7000K

Lamp’s Luminous Efficiency

≥81Lm /W

Lumen Maintenance

70%(50000Hrs)

Color Rendering Index

Ra≥75

Operating Temperature

-25℃ ～ +55℃

Storage Temperature

-25℃ ～ +65℃

IP Grade

IP65

Life-span

50000Hrs

Materials

Aluminum

The color of the lamp shell

White /Black/Grey

Mounting

Pole installation

Packing /weight

The size of the cartoon box

(L×W×H)

525mm*260mm*65mm

525mm*260mm*65mm

730mm*290mm*100mm

990mm*360mm*105mm

Qty/cartoon box

4

4

2

1

The net weight of radiator

3.2Kg

3.4Kg

6.1 Kg

8.9 Kg

The weight of the cartoon box after packing

15.7Kg

16.5Kg

14.3Kg

10.2Kg
