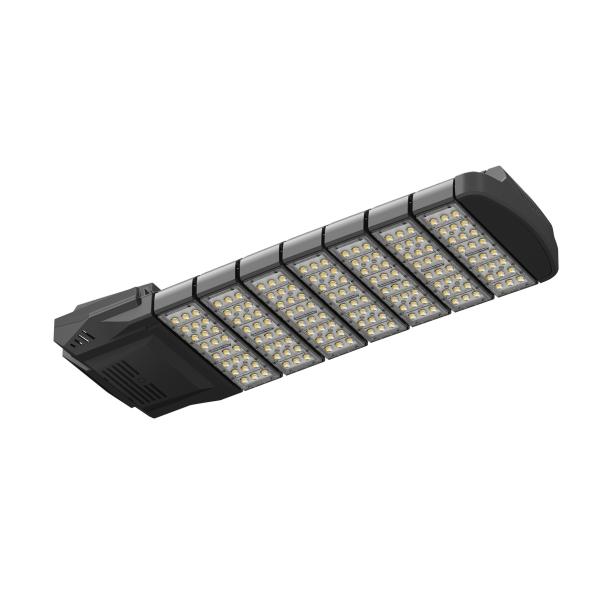

New Adjustable Module LED Street Light 190W For Road, Garden, Stadium, Walkway
New Adjustable Module LED Street Light 190W For Road, Garden, Stadium, Walkway
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
Nomo
Certification :
CE, UL,FCC, ISO, ROHS,SAA
Model Number :
ST190K
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Within 15 working days
Payment Terms :
T/T, L/C, Western union
Supply Ability :
100000000sets
Description
  • New Adjustable Module LED Street Light 190W For Road, Garden, Stadium, Walkway MORE INFO

190w led street light lamp

Parameters

Power(w)

190

Voltage(V)

36

Current(mA)

4800

Chip Model

CREE XPE/XPG 1LA5

LED Qty

144

Way of series-Parallel

12p 12s

PCB”s size

L260*W61*1.5mm

Innovation Highlights
1. Aluminum modularity fin-group thermal dissipating technology perfectly solve the thermal problem with the minimum weight, and significantly expand the life span of the lighting source.
2. Modularity design: each module can be replaced separately; the unique dual adjustable angles make it easily to adjust the lighting area.
3. Waterproof design: IP65, and resist Category 12 hurricanes.
Application
Widely used in main roads, high ways, viaducts, urban streets, overpasses, sidewalks, squares, schools,residential areas, industrial districts, parks and so on.
Features
Panel casting light
Panel casting light makes the light on the road surface more evenly with small glare and large lighting area.
Cool Black Look
Compact structure, beautiful appearance, black color integrated with tunnels, night sky and so on, get the effect of seeing the light without seeing the lamp.
Waterproof IP65
The silicone circle sealing technology and waterproof IP65 can completely prevent dusts and water in rainstorm.
Resist Category 12 Hurricanes
In professional wind test, with the highest wind speed 35m/s, that is to say in the Category 12 hurricanes, there is no deformation or looseness, and it is extraordinarily firm.
Light Weight and High Intensity
ASA cover and aluminum dissipating module: small in size, light weight and high intensity can effectively reduce lamp post’s pressure, lower the wind resistance, safe and reliable.
Sturdy and Durable
Aluminum dissipating module has surface anodic oxidation process, getting a protective shield and greatly enhance the stain resistance. Its ASA cover is resistant to high heat, anti-aging and lasting brightness, therefore it is widely used outdoors.
Dual Adjustable Angles
The unique dual adjustable angles: each module and lamp arm’s adjustable angle is ±6°, greatly increases the lighting flexibility of complete lamps.
Modularity Design
The complete lamp consists of 2 to 7 modules, and choosing the number of modules according to the requirements.
Each module can be replaced separately, easy to install and save costs.
Aluminum Material
Aluminum heat-sink base is zero-contacted with LED lighting source; the innovatively designed modularity fin group optimizes the air channel, effectively enlarges the dissipating areas. Cooperated with air-channel cover, it perfectly solves the thermal dissipating problem.

5 OTHER PRODUCTS IN THE SAME CATEGORY:

Specialty:
● Accurate light distribution design, high luminance, illuminance and uniformity, meet with lighting requirements for different roads.
● Patented heat dissipation design, achieve optimum efficiency.
● Remote control system applicable, realize secondary energy saving.
● Each module can be replaced separately and easy for installation it's cost efficiently.
● Dual adjustable turning function. Adjustable turning angle for each module.
Shape Structure:

New Adjustable Module LED Street Light 190W For Road, Garden, Stadium, Walkway
