AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range
AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range
Specifications
Place of Origin :
China, shenzhen
Brand Name :
Nomo
Certification :
CE, UL,FCC, ISO, ROHS,SAA
Model Number :
PVSL
Waterproof :
IP65
Efficiency lumen :
110lm / w
Beam angle :
60-120 degree
Option :
Dimming
CCT :
2700k-6500k
CRI :
>80
Power :
80W
MOQ :
1
Packaging Details :
carton
Delivery Time :
within 15 working days
Payment Terms :
T/T, L/C, Western union
Supply Ability :
1000000sets
Description

led street light ST80WW

AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range
  • AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range
    • Model NO.ST80WW

Due scene
AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range
AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range
street light is a green product of our company, with new type integrated LED light source, high purity aluminum plating reflector, high thermal conductivity aluminum lamp shell and radiating body, High strength toughened glass cover, high efficient constant pressure constant current；Compared with the traditional street light, ST340-60/100/150W has lots of unique features, such as more efficient, energy-saving, more security and environmental, long lifespan, quicker response and higher CRI. ST340-60/100/150W could be used in the street, square, city, scenery area and so on. It will be the best to replace traditional high pressure street light, besides, it’s also the best choice to light Square, school Personal garden and so on.
AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range

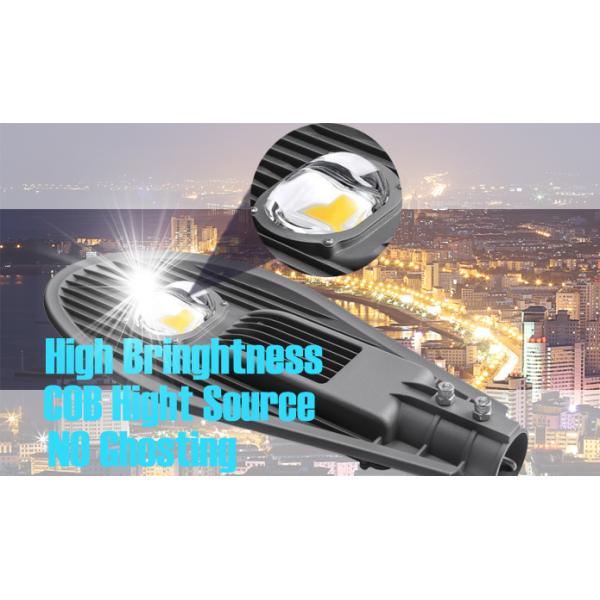

Using cob LED chip , no glare , smooth and uniformity of luminance. With tempered glass lens, high light trans
AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range

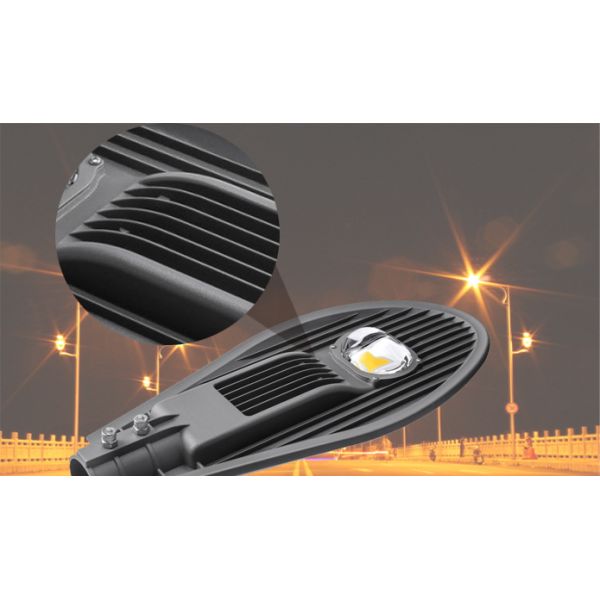

Using air convection to help dissipate heat, the best cooling method
AC85 - 265V IP65 led street light ST80WW With Wide Voltage Range
Technical Parameters

Power

60W

80W

100W

150W

Input Voltage/Frequency

100-240VAC/50-60Hz

Input Current(Typ)

<0.55A/115VAC <0.26A/230VAC

<0.7A/115VAC <0.35A/230VAC

<0.87A/115VAC <0.43A/230VAC

<1.3A/115VAC <0.65A/230VAC

Output Voltage

28-36V Typ=30V

Output Current

2A

2.6A

3.3A

5A

Efficiency(Typ)

>93%

Power Factor(Typ)

PF＞0.98/115VAC PF＞0.95/230VAC

LED Chips Quantity LED

1 Pcs

1

2 Pcs

3 Pcs

LED Consumption LED

60W

80W

100W

150W

System Consumption

64W

83W

105W

155W

LED Luminous Efficiency LED

100-110Lm /W

Lamp’s Initial Flux

4800Lm

6400

8100 Lm

12150Lm

Color Temperature

2700K～7000K

Lamp’s Luminous Efficiency

≥81Lm /W

Lumen Maintenance

70%(50000Hrs)

Color Rendering Index

Ra≥75

Operating Temperature

-25℃ ～ +55℃

Storage Temperature

-25℃ ～ +65℃

IP Grade

IP65

Life-span

50000Hrs

Materials

Aluminum

The color of the lamp shell

White /Black/Grey

Mounting

Pole installation

Packing /weight

The size of the cartoon box

(L×W×H)

525mm*260mm*65mm

525mm*260mm*65mm

730mm*290mm*100mm

990mm*360mm*105mm

Qty/cartoon box

4

4

2

1

The net weight of radiator

3.2Kg

3.4Kg

6.1 Kg

8.9 Kg

The weight of the cartoon box after packing

15.7Kg

16.5Kg

14.3Kg

10.2Kg
