The Real Intelligent Integrated Solar Street Light

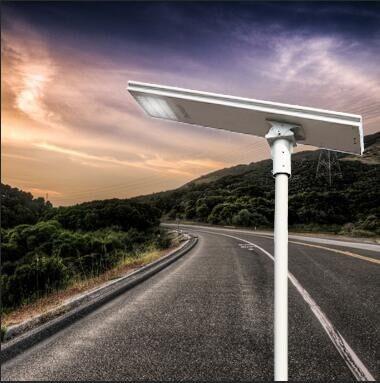

The world ‘s first SMART all in one solar street lights is created by NOMO

Approved By The World’s Government Municipal High Way Projects.

The Titan --- Born for Mission of Lighting Highway.

Engaging by the Most Powerful Features.

NOMO KEY TECHNOLODGE

we provide a "total solution" approach that is trusted by government municipalities throughout the world

The MSL all in one solar street lights was designed to offer cost effective illumination for a wide range of applications.

NOMO is the developer of 'all in one' solar lighting solutions.

1. Real intelligent controlling system powered by Zigbee

2.Patented All in one design, High strength entirety aluminum profile, private mold, gorgeous and durable

3..Auto cleaning System

4.Intelligent Controller

5.Battery Management& cooling System

5.LED lighting module and lighting distribution system

6.Efficient assembly&dis-assembly structure

7.Battery safety system,Unique heat dissipation design and integrated drawer type battery box inside ensure lighting working performance.

8.Adjustable fixture , 90°X360°angle adjustable holder, non-shadow.

NOMO all in one solar street lights absorb energy from the sun and convert it into battery electricity storage and power the illumination when it is dark. Their integrated photo-voltaic module, controller and LiFE PO4 battery combine with high output LEDs and NOMO lighting managing system.

It's provided with NOMO intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. As well as, it's convenient in the shipment and installation.

he MSL series is the world‘s very first and NOMO’s 3rd generation ‘All in One’ solar lighting system that has been designed to offer extremely INTELLIGIENT and cost-saving illumination for a wide range of high way and street lighting applications.

It is intelligent by utilizing ZIGBEE tech controlling the working brightness, dimming, maintenance , time plan , inspection, also a program-able MPPT controller ensuring maximum efficiency and electrical conversion from the limitless power of the sun directly to the powerful and compact LiFe PO4 battery system, additionally the light head features a most healthy lens that automatically ensure the output brightness rightly.

The MSL all in one solar street lights are very simple to use, no separate battery pack required and no complicated wiring or settings.

All you need to do is to install it with screws to the post and press the on/off button.

The lights will switch on when the sun sets and switch off when the sun rises.

The specifications :

Original CREE / LG led chip

Total LED chip luminous flux > 150 lm/W

Viewing angle 120°

Temperature colour: 2500 to 6000 K (warm, pure, cool white)

Solar panel high efficiency crystalline cells

LiFePo4 long lifetime >7years

Charging by sun 6-8 hours

Lighting time adjustable 8-12h, 3 continuous rainy days

Protection grade: IP65

Working life > 50.000 hours

Technique specs

1 - Intelligent DTU

Real time remote monitoring and management

Smart Planning tasks

Email,SMS message,intelligent Early-warning

GOOGLE map Control of latitude and longitude

Data Generating curve statistics

User permissions

Generating curve statistics

Location function of geographic information

2 - LED lamp

Applied the highest efficacy 180 lm/W super bright LED in the world.Through optimizing “White conversion technology.” the lifespan of the LED chip has also increased greatly. As per the LM 80, the LED lighting reliability evaluation , the average lifespan of LED chip is more than 50000 hours.

3 - Power Management Controller

MPPT controller regulates and protects power to lamp and battery packs, with more protection function

1). Overcharge protection

2). over input or output protection

3). The battery reverse connect protection

4). PV panel reverse connect protection

5). LED reverse connect protection

6). LED No-load protection

7). LED soft starts function; reduce the electric current impact to LED lamp bead;

8). Lightning protection

4 - LiFe PO4 Battery

Lithium iron phosphate(LiFePO4 battery) is a type of rechargeable battery with the nominal voltage of 3.2V per cell. Because of its non-toxicity, high abundance of iron, excellent thermal stability, safety characteristics, good electrochemical performance, long cycle life and high specific capacity, it is widely used in electric vehicles.

The most safe LiFe PO4 Batteries offers 4 times more storage and power capacity versus traditional lead acid batteries.

Key Features:

1) Long cycle life: more than 2000 times (charge and discharge at 1C, 80% capacity retention after 2000 cycles).

2) High safety: no fire and explosion in overcharge test at the voltage up to 30V and in short-circuit test, nail test, and heat shock up to 130℃ test.

3) Good charging and discharging performance.

4) High discharge rate up to 10C.

5) Environmental-friendly: all raw material of the batteries are environmental-friendly.

6) Wide working temperature range: from -10℃ to 60℃, extremely cold and hot weather will not affect its performance.

5 - Solar module

Mono crystalline PV module, highly efficient and tolerant to heat providing more output on a smaller footprint

1.Patented Outlook Design

The shape and design has been carefully studied to optimize all the construction. The outlook should be nice to be seen. This is why we offer customization service to our customers,in this way you can have the best solution with the best assurance on the market.

2.No Cable Needed Design

Solar powered outdoor lighting Easy installation so that you do not need any cables.

3. Light Weight Design

Entire and robust design saves shipping space and reduce your import cost and installation cost.

4.Rust proof design

AA 1000 Aluminum alloy profile with anodicoxdation treatment,anti rust and high strength.

5. Waterproof and Dust-proof design

IP65 standard protection level, and best solution applied for waterproof and dust proof.

Application

NOMO MSL series All in one solar street lights are designed and developed especially for lighting high way lighting where need safe and stable lighting distribution.

High way ;patio lighting； Building Parking ； Bike Path ；Suitable for Courtyard / Garden / Park / Street / Roadway / Pathway / Parking Lot / Private Road / Sidewalk / Public Square / Plaza / Campus / Farm & Ranch / Perimeter Security / Wildlife area / Remote Area / Military Base ;Country street

Shippment packages

IP-protection types

The IP-protection types reveal precise information on the degree of protection – the higher the number, the better the protection.

Protection class I
All conductive console parts of an operating device are connected to the earth wire of the permanent electrical installation. This is a protective earthing.
In case of leakage current, a fuse will switch off the circuit.

Protection class II
Operating materials in protection class II have a reinforced or double insulation between the grid circuit and conducting console.
This is known as a double insulation.

Protection class III
Electrical devices in protection class III work with a maximum of 50 volts alternating current and in grid operation require a reinforced or double insulation between the grid circuit and outlet voltage. They require a safety transformer.
