Specifications
Brand Name :
Singheng
Model Number :
P4
Certification :
CE RoHS UL FCC
Place of Origin :
China (Mainland)
MOQ :
1 piece
Price :
USD+To be negotiated+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Application :
Video
Warranty :
3 Years
LED chip :
Epistar
Pixel pitch :
4 mm
Module size :
256*128 mm
Module resolution :
64*32 dots
Screen size :
512*1024 mm
Pixel density :
62500 dots/sqm
Grey scale :
16.7M colors
Waterproof :
IP65
Description

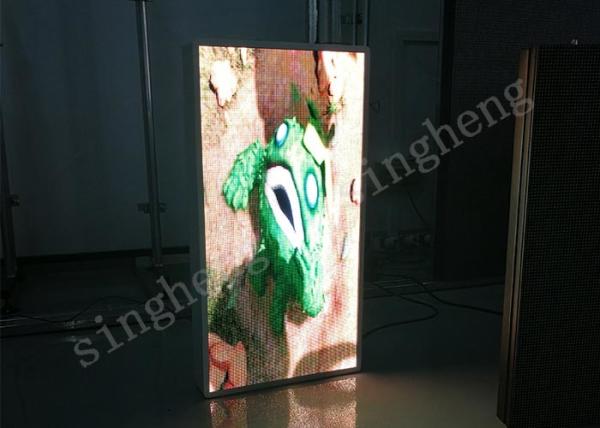

Full Color Led Lamp Post Advertising P4 Street Light Pole Led Display

  • Product description

1. The cabinet is integrally formed, simple and generous, and the shape is novel and beautiful.
2. High-strength anti-aging fabric,strong weather resistance, strong impact resistance

3.With the professional aviation plug as the connectors ensure the quality and safety.

4.With the high quality raw material, mature process and scale production,the quality is ensured.

5. Outdoor LED display module, excellent display effect,broadcast color gamut, intelligent adjustment for color temperature and brightness. Uniform color, high contrast, the picture is vivid and nature.

6. Outdoor Led lamp post advertising, IP65, Fast Installation IP65 for modules, meets outdoor naked installtion requirements. Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.

7. Firm, flat and backup solution firm and flat, anti-UV module parts which gurantees screen in firm shape. Power supplier and control system, backup solution is available to gurantee. Camera optical, LAN cable, 3G,WIFI, Multi-control,ethernet for data transmittance options.

  • Technical parameter of P4 Street Light Pole Led Display

Unit Module

Item Parameter
Model Number P4-P1005
Module size 256mm*128mm
Pixel pitch 4mm
Pixel configuration 1R1G1B
LED Package mode SMD2727
Drive type Constant drive
Scan mode 1/8 scan
Brightness of white balance ≥6500cd/sqm

LED Cabinet

Dimension 552*1064*120mm
Dispaly area 512*1024mm
Control method 4G/WIFI/LAN wireless
Net wight 21KG
Power supply AC110/220V
Resolution 128*256
Best viewing distance 4M~30M
Best viewing angle 160°(W) 140°(H)
Temperature

storage:-35℃~+85℃

working:-20℃~+50℃

Relative humidity 10%-95%

  • FAQ

Q1:LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.

Q2:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.

Q3:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.

Q4:Can I order a sample?
A:Yes.We welcome customers to order sample to check the quality and service.

Q5:Is it OK to print my LOGO on your product?
A:Yes.We support OEM and ODM service.
