Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Singheng
Model Number :
P6
Price :
USD+To be negotiated+square meter
MOQ :
1 Piece/Pieces
Certification :
CE RoHS UL Certifications
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Usage :
Outdoor
Tube Chip Color :
Full Color
Pixels :
6mm
Screen Dimension :
660*1280mm
pixels per sqm :
40000
Module size :
192mmx192mm
Best viewing angle :
160°(W) 140°(H)
input voltage :
AC110/220V
working temperature :
_40℃~+50℃
brightness :
6500CD/㎡
Description

Outdoor Street Lamp Post LED Display Wifi 3G/4G Wireless Smart LED Advertising Screen

  • Product description

1. High-strength anti-aging fabric,strong weather resistance, strong impact resistance

2. Easy installation and maintenance design, greatly reducing the cost of loading,unloading and maintenance

3. RGB deep gray processing, color changes arbitrarily

4. The PCB adopts multi-layer circuit design to ensure uniform current distribution of the lamp board,prevents the occurrence of color blocks under low gray conditions.

5. The cabinet is integrally formed, simple and generous, and the shape is novel and beautiful.

6. The driver IC adopts the constant current driver IC of the world's leading manufacturers, and has excellent driving performance, stable and reliable.

  • Technical parameter of P5 Outdoor Taxi LED

Pixel Pitch

4mm

Pixel Density

62500dot/sqm

Pixel configuration

1R1G1B SMD 3535

Module Size

192mm*360mm

LED brand

Taiwai EPISTAR

Module Resolution

64*32dot

Weight

35KG

Viewing Distance

≥4m

Viewing Angle (Horizontal Axis)

140°

Viewing Angle (Vertical Axis)

160°

Refresh Rate

>1920Hz

Grey Scale

65536

Brightness

≥6500cd/sqm

Drive Mode

1/8scan

Signal EMC

VGA,DIV,HDMI,SDI

Lifespan

≥10,0000 h

Waterproof Grade

IP65

Input Voltage

AC105-235V 50-60HZ

humidity

10—85%RH

Control Distance

Network Cable≤100m, Multimode optical fiber≤500m, Single mode optical≤20 kilometer
  • FAQ

Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5
meters, P10 is suitable for watching outside 10 meters, and P16 is suitable for watching outside 16 meters,
and the other is the same. Of course, this data is not very accurate, and the customer just can refer to
it. It also depends on the size of the screen, generally it is considered that more than 100 thousand
pixels for a full color display then have a standard effect.

Q2: To order a display ,What kind of information do I have to offer you?

A:You should provide width/height of
the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide
you with a detailed list of quotations. Sometimes you should also provide information such as display
orientation, geographical location, local climate, and so on.

Q3:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P2 P3 P4.....P8,P10 means that the pixel pitch is 2mm 3mm 4mm....8mm,10mm, which determines the number of
pixels per unit area of a display, so it represents the clarity of the display.The smaller the pitch, the
higher the clarity. Usually, the models of indoor full color display are: P1.667, P1.875, P2.5, P3, P4, P5,
P6, P7.62, P10. Outdoor full color display are P4, P5, P6, P7, P8, P10, P16, P20, P25, P31.25 etc.

Q4:What about the lead time?
A:Orders less than 100 square meter display, lead time is 13-15 days.

Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,
strictly control the production process, and pass the multiple quality inspection to ensure that every
product is qualified.

Q6:What about the warranty?

A:Three year warranty

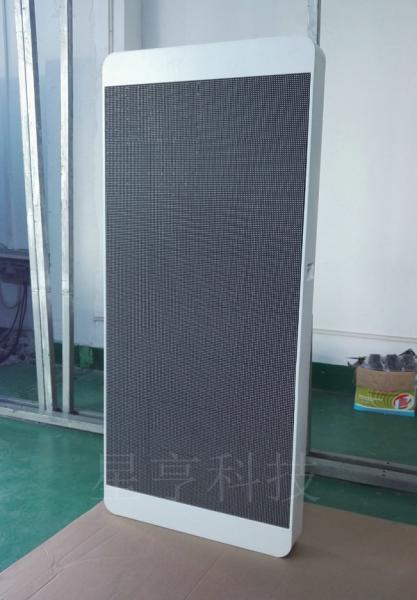

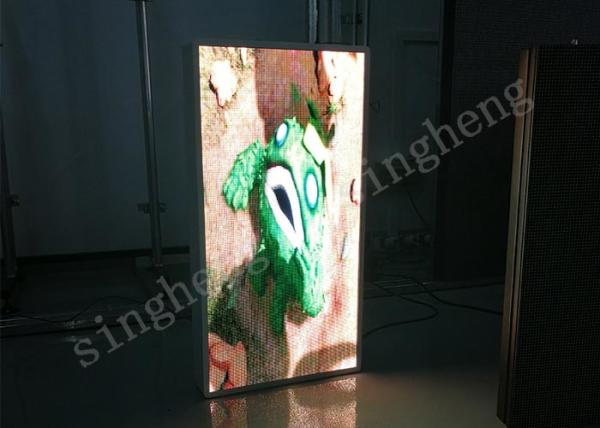

  • Product Picture

6mm Pixels Led Lamp Pole Screen , Led Advertising Screen AC110 / 220V
