High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
High Brightness Mobile Trailer LED Display Billboard 40000 Pixels Per Sqm
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Singheng
Model Number :
P5
Price :
USD+To be negotiated+square meter
MOQ :
1 Square Met
Certification :
CE RoHS UL Certifications
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Usage :
Outdoor
Tube Chip Color :
Full Color
Pixels :
5mm
pixels per sqm :
40000
Best viewing distance :
>=5m
Best viewing angle :
160°(W) 140°(H)
input voltage :
DC12-36V
Average Power consumption :
≤430W/㎡
Max.Power consumption :
≤980W/㎡
working temperature :
_40℃~+50℃
Description

SMD Mobile Led Billboard Truck Trailer Advertising Display P5 LED Sign

  • Product description

1. The screen’s design with full consideration of outdoor usage, which adopts industrial standard,high brightness design

2. Our product possesses IP65 protection level, which enables display working for you under rainy days.

3. Using high-quality LED driver chip, the whole system can adapt to outdoor harsh environment and long-term stable operation.

4. Application: digital advertising, concerts, mobile announcements, outdoor advertising fields

5. Adopt high-quality LED light-emitting tube, the brightness is high,with large horizontal and vertical viewing angle.

  • Technical parameter of P6 Outdoor Digital LED

P5 FULL-COLOR TECHNICAL PARAMETER

Item

Parameter

Pixel Pitch

5mm

Pixel Density

40000 dot/sqm

Pixel Configuration

1R1G1B SMD EPISTAR

Module Size

320*160 mm

Module Resolution

64*32 dot

Cabinet Size

1280*960mm

Weight

35KG/m2

Cabinet Material

SPCC

Viewing Distance

≥5 m

Viewing Angle (Horizontal Axis)

120°

Viewing Angle (Vertical Axis)

120°

Refresh Rate

>1920Hz

Grey Scale

65536

Brightness

≥6500cd/m2

Max Power Consumption

1200 w/sqm

Average Power Consumption

500 w/sqm

Drive Mode

1/8 Scan Constant Current

Signal EMC

VGA,DIV,HDMI,SDI

Signal Transmission Mode

568B

Network Cable

≤100m, Multimode

Control Distance

optical fiber≤500m, Single mode optical

fiber

≤20 kilometer

Lifespan

≥10,0000 h

Waterproof Grade

IP65

Input Voltage

AC220V±10% 50-60HZ

Celsius

Degree:—10℃-40℃

humidity:10

10—85%RH

  • FAQ

Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5
meters, P10 is suitable for watching outside 10 meters, and P16 is suitable for watching outside 16 meters,
and the other is the same. Of course, this data is not very accurate, and the customer just can refer to
it. It also depends on the size of the screen, generally it is considered that more than 100 thousand
pixels for a full color display then have a standard effect.

Q2:What about the warranty?

A:Three year warranty

Q3:What about the lead time?
A:Orders less than 100 square meter display, lead time is 13-15 days.

Q4:How long is the transportation time?
A:Shipping: 20-30 days,Airlift: within 3-7 days.

Q5: To order a display ,What kind of information do I have to offer you?

A:You should provide width/height of
the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide
you with a detailed list of quotations. Sometimes you should also provide information such as display
orientation, geographical location, local climate, and so on.

Q6:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation.

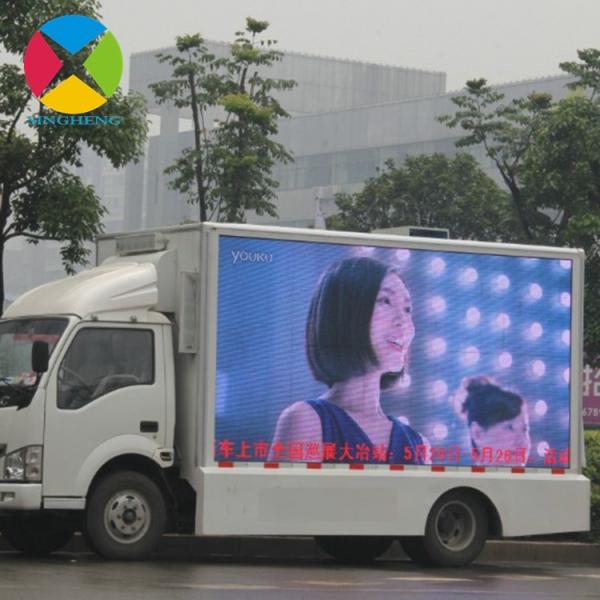

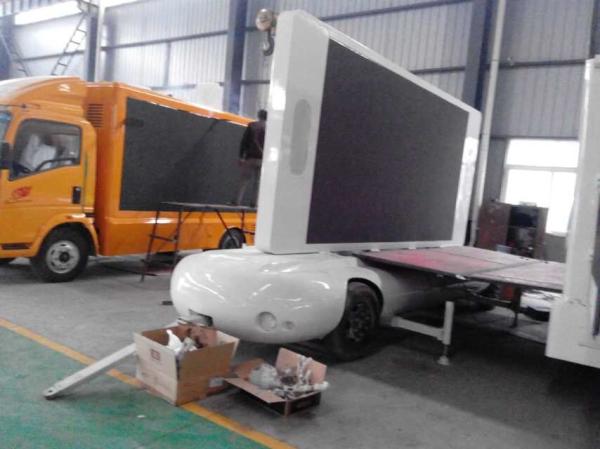

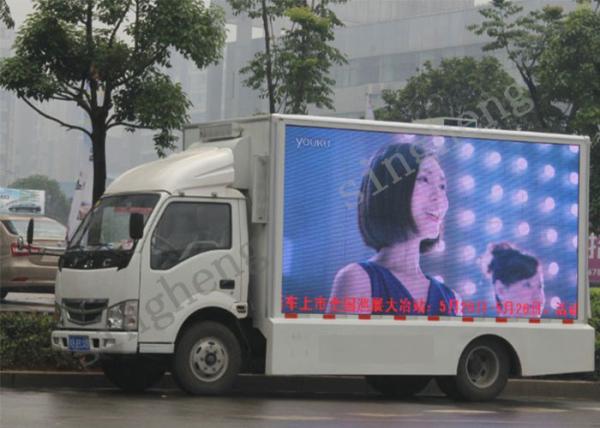

  • Product Picture
