Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Singheng
Model Number :
P5
Price :
USD+To be negotiated+square meter
MOQ :
1 Piece/Pieces
Certification :
CE RoHS UL Certifications
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Usage :
Indoor
Tube Chip Color :
Full Color
Pixels :
5mm
Screen Dimension :
1320*360*75mm
cabinet material :
iron
Best viewing angle :
160°(W) 140°(H)
input voltage :
DC12-36V
lifespan :
100,000h
working temperature :
_40℃~+50℃
Module size :
320*160mm
Description

P5 Bus LED Display Board Outdoor Video Sign Panel For Bus Advertising

  • Product description

1. The bus LED display system is mainly composed of bus LED display, wireless LED control card, and LED display control software. With the city bus system, you can display vehicle information, routes, and media information such as weather, announcements, and advertisements.

2. The shell adopts integrated aluminum casting mold, which has high strength and strong toughness.

3. Wireless communication ensures real-time monitoring of media user monitoring and system operation.

4. It uses low-power, high-brightness, constant-current driving lamp beads, which is extremely penetrating during daylight hours and has a lifespan of more than 100,000 hours.

5. The multi-monitoring process is strictly carried out, and the products need to be testing for more than 24 hours before leaving factory.

6. Wireless communication ensures the real-time and update convenience of information elements.

7. Wireless LED display, support flash, gif image and text format, to broadcast commercial news, while broadcasting information related to city life and headline news, etc.

8. It has 12-36V vehicle voltage, and the power supply has over-current and over-voltage protection functions.

  • Technical parameter of P5 Bus Advertising

LED Brand

Grey Scale/Colors

Input Voltage

Cabinet Material

Brightness

Taiwan EPISTAR

16.7M colors

DC12-36V

Iron

1500cd/sqm

Pixel Configuration

Module Size

Drive Mode

Best Viewing Distance

Best Viewing Angle

1R1G1B

320*160mm

1/16 scan

≥5m

160°(W) 140°(H)

  • FAQ

Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P2 P3 P4.....P8,P10 means that the pixel pitch is 2mm 3mm 4mm....8mm,10mm, which determines the number of
pixels per unit area of a display, so it represents the clarity of the display.The smaller the pitch, the
higher the clarity. Usually, the models of indoor full color display are: P1.667, P1.875, P2.5, P3, P4, P5,
P6, P7.62, P10. Outdoor full color display are P4, P5, P6, P7, P8, P10, P16, P20, P25, P31.25 etc.

Q2: To order a display ,What kind of information do I have to offer you?

A:You should provide width/height of
the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide
you with a detailed list of quotations. Sometimes you should also provide information such as display
orientation, geographical location, local climate, and so on.

Q3:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5
meters, P10 is suitable for watching outside 10 meters, and P16 is suitable for watching outside 16 meters,
and the other is the same. Of course, this data is not very accurate, and the customer just can refer to
it. It also depends on the size of the screen, generally it is considered that more than 100 thousand
pixels for a full color display then have a standard effect.

Q4:What about the warranty?

A:Three year warranty

Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,
strictly control the production process, and pass the multiple quality inspection to ensure that every
product is qualified.

Q6:Can I order a sample?
A:Yes,We welcome customers to order samples to check the quality of our products and service.

Q6:What about the warranty?

A:Three year warranty

  • Product Picture

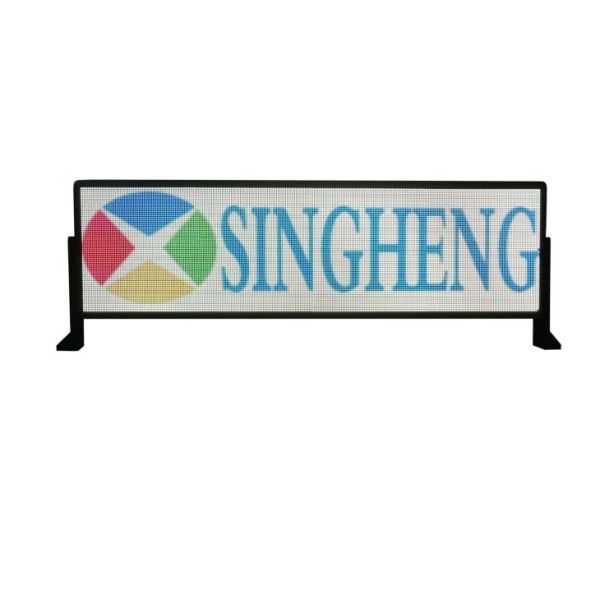

Iron Cabinet Material Bus LED Display Wireless Communicated Real Time Monitoring
