Specifications
Brand Name :
Singheng
Model Number :
P4
Certification :
CE RoHS UL Certifications
Place of Origin :
China (Mainland)
MOQ :
1 square meter
Price :
USD+To be negotiated+square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Application :
Video
Grey scale/colors :
16.7M colors
Max Power consumption :
≤680W/sqm
Average Power consumption :
≤300W/sqm
Working temperature :
-20ºC~+50ºC±10%
Working voltage :
AC220V/110V±10%
Cabinet material :
Iron
Best viewing distance :
≥4m
Best viewing angle :
160°(W) 140°(H)
Screen Dimension :
Customized Size
Description

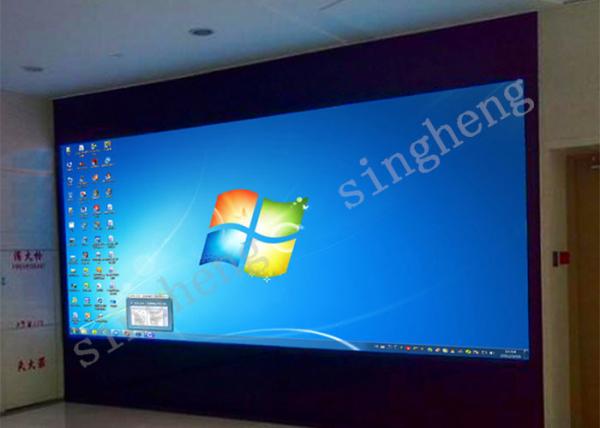

Custom Advertising LED Display Screen Indoor P4 LED Video Wall Price

  • Product Description

1. With the best SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.

2. Complete series, customized to satiny any requirements of customers.

3. With the high quality raw material, mature process and scale production,the quality is ensured.

4. We have the most competitive prices based on all good material we use . Our advertising LED display screen quality is very repliable and we win very good reputation in the market.

5. Ideal for indoor advertising media, government & enterprise project culture & tourism, sports, propaganda Image, commercial real estate.

6. All our indoor custom advertising LED display with high quality LED,quality is very high . Less dead lamps even used over 2-3 years .It can save much money for maintenance.

7. It is very easy to calculate the size of LED Wall.It can be exactly 4*3m, 6m*4m, 8m*4.5m etc.(4m*3m is 4:3 ratio and 8m*4.5m is 16:9 ratio,perfect to show video)

  • FAQ

Q1: LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.

Q2: What pixel pitch should I choose on my display?
A: Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.

Q3: How about your quality?
A: The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.

Q4: How long is the transportation time?
A: Shipping:20-30 days.Airlift:3-7 days

Q5: Is it OK to print my LOGO on your product?
A: Yes.We support OEM and ODM service.

  • Technical Prameters​ of Indoor P4 LED Video Wall

Pixel pitch 4mm
Pixel Configuration 1R1G1B
LED component SMD2121
Size of module 256mm x 128mm
Resolution of module 64x32
Size of cabinet 1024mm x 1024mm x 110mm
Material of Cabinet Iron
Weight of Cabinet 8KG
Brightness >1200cd/sqm
Density 160000dots/sqm
Best viewing angle 140 /120
Best viewing distance 4-30M
Maximum power consumption 680W/sqm
Average power consumption 300W/sqm
Driving method 1/16scan
Control method Synchronization
Gray scale 65536
Colors Full color
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP30
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
