Specifications
Brand Name :
Singheng
Model Number :
P6
Certification :
CE RoHS UL FCC
Place of Origin :
China (Mainland)
MOQ :
1 square meter
Price :
USD+To be negotiated+square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Application :
Adervertising
Warranty :
3 Years
Viewing distance :
>6 m
Pixel density :
27777 dots/sqm
Module size :
192*192 mm
Module resolution :
32*32 dots
Max Power Consumption :
850 w/sqm
Average Power Consumption :
370 w/sqm
Grey Scale :
65536
Drive mode :
1/8 scan
Description

Small Display Outdoor LED Advertising Screens P6 Outdoor Video Screen Price

  • Product Description

1. Using the 6mm pitch module assembled, high definition, color reduction lifelike

2. With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.
3. The appearance is very simple and elegant,looks very high end.
4. 14 bit color,16384 gray scale,showing very clear and vivid video and images.
5. Good thermal design, excellent heat dissipation even no fan installation.
6. Accurate, shortcut, flexile installation, can be applied to any different installation environment.
7. With the protection rating of IP65,o
utdoor LED advertising screens can face any bad weather.
8. With the high quality raw material, mature process and scale production,the quality is ensured.

9. Support point correction function, ensure the consistency of the color and the brightness in the process of use.

  • Technical PrametersOf P6 Outdoor Video Screen

Pixel Pitch

6 mm

Pixel Density

27777 dots/sqm

Pixel Configuration

1R1G1B SMD3535

Module Size

192*192 mm

LED brand

EPISTAR

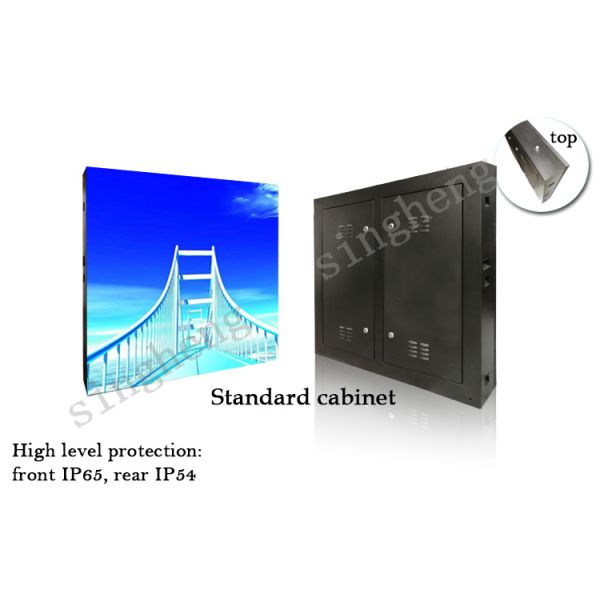

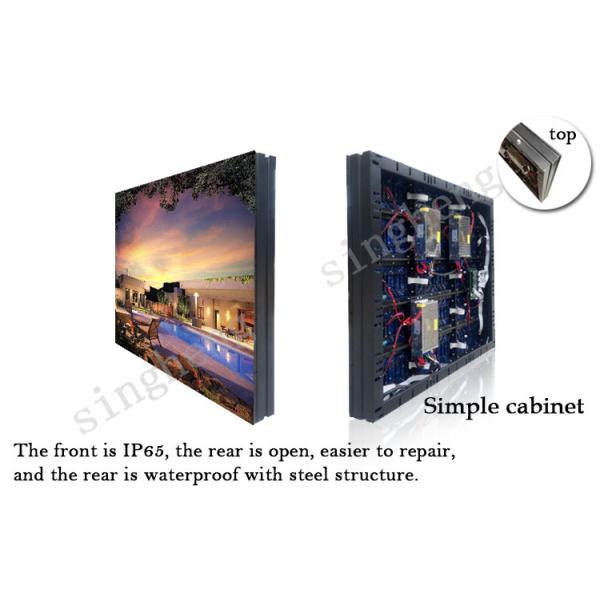

Cabinet type

open or closed

Protection

front:IP65

Unit cabinet dimension

768mm×1152mm×95mm

Module Resolution

32*32 dots

Cabinet Resolution

128*192 dots

Weight

35KG

Cabinet Material

Iron

Viewing Distance

≥6 m

Viewing Angle (Horizontal Axis)

140°

Viewing Angle (Vertical Axis)

140°

Refresh Rate

>1920Hz

Grey Scale

65536

Brightness

≥6500cd/m2

Max Power Consumption

850 w/sqm

Average Power Consumption

370 w/sqm

  • FAQ

Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.

Q2:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.

Q3:What about the warranty?
A:Three year warranty

Q4:Can I order a sample?
A:Yes.We welcome customers to order sample to check the quality and service.

Q5:How long is the transportation time?
A:Shipping:20-30 days.Airlift:3-7 days
