Specifications
Brand Name :
Singheng
Model Number :
P16
Certification :
CE RoHS UL Certifications
Place of Origin :
China (Mainland)
MOQ :
1 piece
Price :
USD+To be negotiated+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Application :
Graphics
LED chip :
Epistar
Brightness :
3000cd/sqm
Pixel configuration :
2R1G
Module Size :
256*128 mm
Dimension :
1308*843*110mm
Control method :
WIFI/LAN Optional
Net wight :
37KG
Power supply :
AC110/220V
Best viewing distance :
5M~30M
Description

P16 Led Pharmacy Sign Pharmacy Green Cross Led Pharmacy Digital Signage

  • Product description

1. Outdoor LED Display, IP65, Fast Installation IP65 for modules, meets outdoor naked installtion requirements. Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.

2. All our Led pharmacy digital signage with high quality LED,quality is very high . Less dead lamps even used over 2-3 years .It can save much money for maintenance.

3. We have the most competitive prices based on all good material we use . Our quality is very repliable and we win very good reputation in the market.

4. Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost.

5. Date, time and temperature can be displayed
6. This pharmacy green cross can be made in monochrome and two-color. Monochrome and two-color are in-line DIP modules.
7. Multi-language display: English, French, Italian, Spanish,Russian, etc.
8. Suitable for all pharmacies, hospitals, churches, etc.

  • Technical parameter of P16 Led Pharmacy Sign

Unit Module

Item Parameter
Model Number P16-C01
Module size 256*128mm
Pixel pitch 16mm
Pixel configuration 2R1G
LED Package mode DIP546
Drive type Constant drive
Scan mode 1/4scan
Brightness ≥3000cd/sqm

LED Cabinet

Dimension 1308*843*110mm
Control method WIFI/LAN Optional
Net wight 37KG
Power supply AC110/220V
Best viewing distance 5M~30M
Best viewing angle 110°(W) 90°(H)
Temperature

Storage:-35℃~+85℃

Working:-20℃~+50℃

Relative humidity 10%-95%

  • FAQ

Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.

Q2:Is it OK to print my LOGO on your product?
A:Yes.We support OEM and ODM service.

Q3:How long is the transportation time?
A:Shipping:20-30 days.Airlift:3-7 days.

Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.

Q5:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.

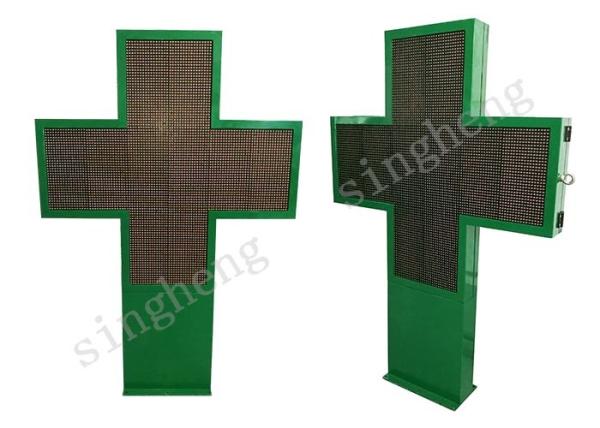

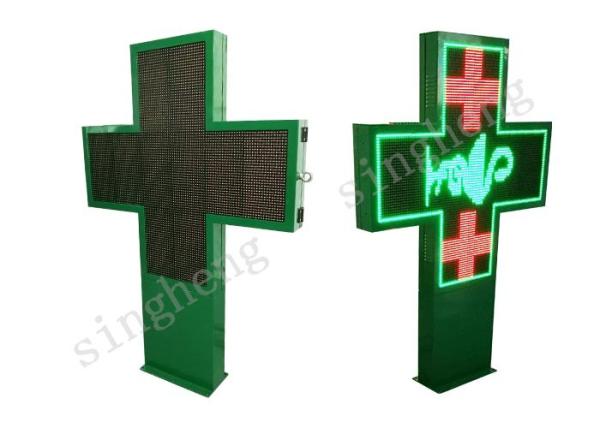

  • Product Picture

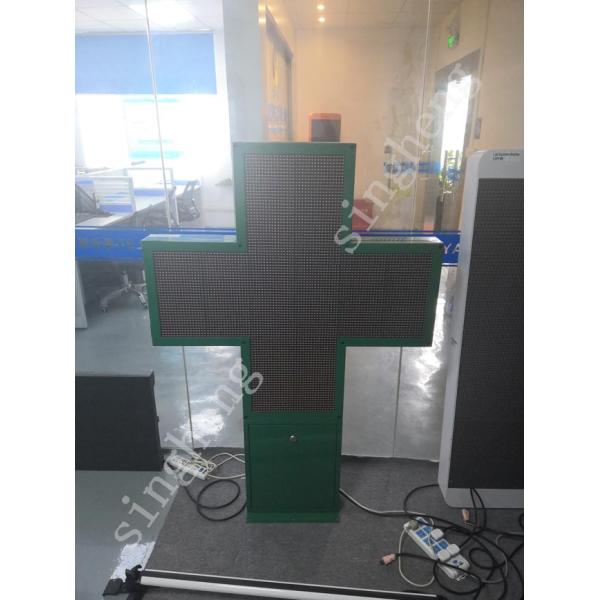

2R1G Pharmacy Green Cross Led Sign , Large Led Cross 1308*843*110mm Size
