Specifications
Brand Name :
Singheng
Model Number :
P31
Certification :
CE RoHS UL FCC
Place of Origin :
China (Mainland)
MOQ :
1 square meter
Price :
USD+To be negotiated+square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Application :
Video
Pixel Pitch :
31.25 mm
Pixel Density :
1024dots/sqm
Pixel Configuration :
1R1G1B DIP346
Module Size :
320*160 mm
Module Resolution :
10*5 dots
Refresh Rate :
>1920Hz
Drive Mode :
Static scan
Material :
Aluminum
Input Voltage :
AC220V±10% 50~60HZ
Description

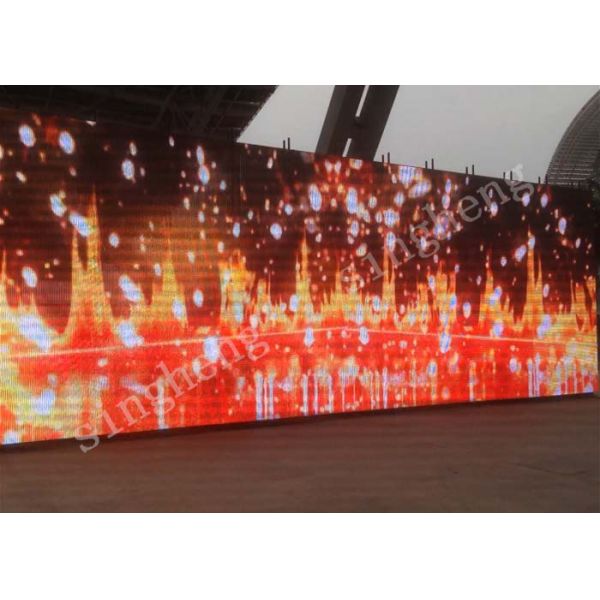

Led Curtain Screen Outdoor Led Curtain P31 Led Video Curtain Price

  • Product Description

1. The Led curtain screen brightness is high , can be over 6000 nits or higher , no problem at all even under direct sunlight .

2. We have the most competitive prices based on all good material we use . Our quality is very repliable and we win very good reputation in the market.

3. Light weight and low wind load. The light weight is due to the screen grid, which makes the LED display transparent, so its wind load capacity is extremely strong.

4. High performance and low power consumption. The real energy saving comes from: high-brightness, high-efficiency LED lights, high conversion efficiency power supplies.

5. IP67 high protection level. The concept of IP67 is soaking and waterproofing, that is, the overall immersion of the product.

6. Easy to install and easy to maintain.Outdoor Led curtain is installed without steel structure and does not require air conditioning.

  • Technical parameters of P31 Led Video Curtain

Item Parameter
Pixel Pitch 31.25 mm
Pixel Density 1024dots/sqm
Pixel Configuration 1R1G1B DIP346
Module Size 320*160 mm
Module Resolution 10*5 dots
Cabinet Resolution 31*36 dots
Cabinet Size 960*1120 mm
Viewing Distance ≥31 m
Viewing Angle (Horizontal Axis) 120°
Viewing Angle (Vertical Axis) 80°
Refresh Rate >1920Hz
Grey Scale 65536
Brightness ≥8000cd/sqm
Max Power Consumption 700 w/sqm
Average Power Consumption 2500 w/sqm
Drive Mode static
Signal EMC VGA,DIV,HDMI,SDI
Signal Transmission Mode 568B
Network Cable ≤100m, Multimode
Control Distance optical fiber≤500m, Single mode optical
fiber ≤20 kilometer
Lifespan ≥10,0000 h
Waterproof Grade IP 65
Input Voltage AC220V±10% 50~60HZ
Celsius Degree:-10℃~40℃
Humidity 10~85%RH

  • FAQ

Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.

Q7:What about the lead time?
A:Orders less than 50 square meters display ,lead time is 16 days.

Q8:Can I order a sample?
A:Yes.We welcome customers to order sample to check the quality and service.


Q5:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.

Q6:What about the warranty?
A:Three year warranty.
