Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Singheng
Model Number :
P20
Price :
USD+To be negotiated+square meter
MOQ :
1 Square Met
Certification :
CE RoHS UL FCC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Usage :
Outdoor
Tube Chip Color :
Full Color
Display Function :
Video
Pixels :
20mm
Screen Dimension :
Customized
cabinet material :
aluminum
Best viewing angle :
120°(W) 60°(H)
Average Power consumption :
≤250W/sqm
Max.Power consumption :
≤700W/sqm
working temperature :
-40℃~+50℃
Description

P20 Decorative Digital Grille Screen Panels Flexible LED Curtain Display

  • Product description

1. High performance and low power consumption. The real energy saving comes from: high-brightness, high-efficiency LED lights, high conversion efficiency power supplies.

2. Highly integrated. Built-in power supply and receiving card, each unit can work independently; power and signal are plugged in one line

3. IP67 high protection level. The concept of IP67 is soaking and waterproofing, that is, the overall immersion of the product.

4. Easy to install and easy to maintain. It is installed without steel structure and does not require air conditioning.

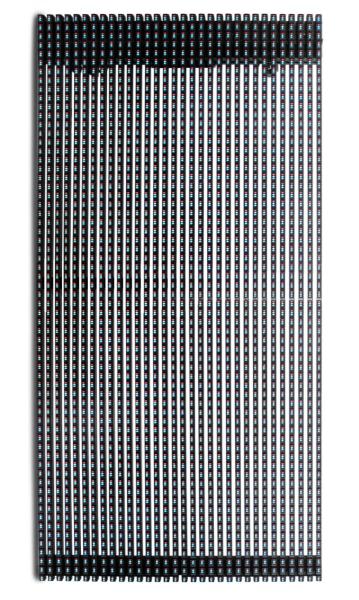

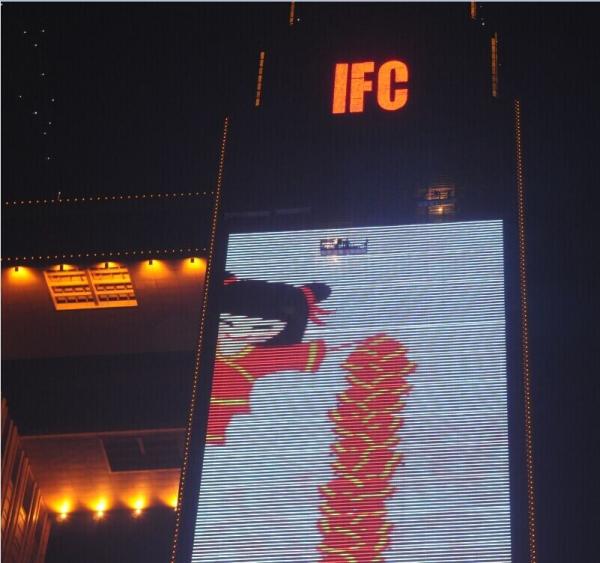

5. LED curtain screen is a kind of LED screen composed of light bars, also called LED light bar screen. Mainly used in outdoor walls, glass curtain walls, building tops and other fields.

6. LED grille screen breaks through the limitation of conventional LED display to the building and wall ,making the project more flexible and more selective.

7. It is suitable for the construction of super large outdoor display, which is the first choice for creating landmark dynamic display landscape.

  • Technical parameter of P20 Outdoor Curtain LED
Technical parameters

Pixel Pitch

20mm

Pixel Density

2500dot/sqm

Pixel Configuration

2R1G1B DIP346

Module Size

320*160 mm

Module Resolution

16*8dot

Cabinet Material

SPCC

Viewing Distance

≥20 m

Viewing Angle (Horizontal Axis)

120°

Viewing Angle (Vertical Axis)

80°

Refresh Rate

>600Hz

Grey Scale

65536

Brightness

≥8000cd/sqm

Max Power Consumption

700 w/sqm

Average Power Consumption

250 w/sqm

Drive Mode

static

Signal EMC

VGA,DIV,HDMI,SDI

Signal Transmission Mode

568B

Network Cable

≤100m, Multimode

Control Distance

optical fiber≤500m, Single mode optical

Lifespan

≥10,0000 h

Input Voltage

AC220V±10% 50-60HZ

Celsius

Degree:—10℃-40℃

  • FAQ

Q1:LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.

Q2:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.

Q3: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.

Q4:What about the warranty?
A:Three year warranty

Q5:How long is the transportation time?
A:Shipping:20-30 days.Airlift:3-7 days

Q6:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
