Led Display On Rent Video Screen Rental P4.81 Stage Led Display

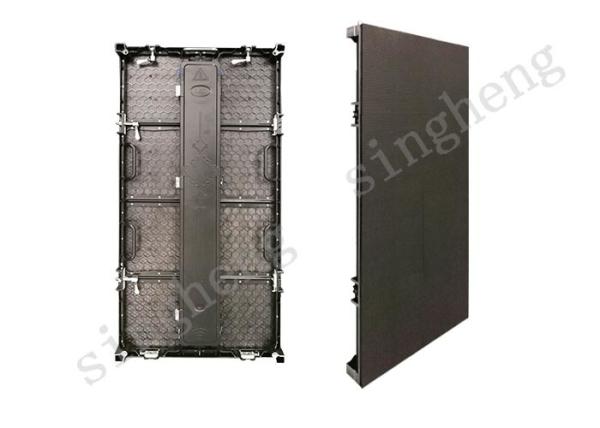

1. New structural design is to meet hanging installation and floor installation requirements and can be installed in indoor and outdoor environment
2. The video screen rental cabinets are connected by quick lock. The installation of one cabinet can be completed in 10 seconds.
3. With high strength and hardness, good heat dissipation
4. The Led display on rent cabinet is light in weight,low installation cost and low power consumption, saving operating costs and reducing labor costs.
5. With high strength and hardness, good heat dissipation
6. The portable Led screen cabinet is light in weight,low installation cost and low power consumption, saving operating costs and reducing labor costs.
7. Support signal line arbitrary connection,meeting the arrangement and placement of different cabinets to create different effects
8. Support brightness adjustment and white balance custom adjustments, allowing screens from different batches to be used together.
Technical parameters of P4.81 Stage Led Display
Unit Module | Item | Parameter |
Model Number | P4.81-13S | |
Module size | 250mm*250mm | |
Pixel pitch | 4.81mm | |
Pixels Density | 43264 dots/sqm | |
Pixel configuration | 1R1G1B | |
LED Package mode | SMD2121 | |
Pixel resolution | 52dots(W)*52 dots(H) | |
Max Power | 32W | |
Module thickness | 14.66mm(Without magnet) | |
26.55mm(Within magnet) | ||
Weight | 0.575kg | |
Drive type | Constant drive | |
Scan mode | 1/13scan | |
Port type | HUB75-A | |
Brightness of white balance | ≥1200cd/sqm |
LED Cabinet | Dimension | 1000mm*500mm |
Monomer Module Number | 8 | |
Power supply | 5V/40A*2pcs | |
Thermal discharge | fan 1pcs | |
Pixel per cabinet | 208*104 | |
Best viewing distance | 5M~20M | |
Best viewing angle | 160°(W) 120°(H) | |
Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
Relative humidity | 10%-95% | |
Thickness | 65mm |
Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.
Q2:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.
Q3: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q5:Is it OK to print my LOGO on your product?
A:Yes.We support OEM and ODM service.
