Specifications
Brand Name :
Singheng
Model Number :
P4.81
Certification :
CE RoHS UL FCC
Place of Origin :
China (Mainland)
MOQ :
1 square meter
Price :
USD+To be negotiated+square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Flight case
Application :
Video
Warranty :
3 Years
LED chip :
Epistar
pixels per sqm :
43264 dots
Lifespan :
100,000h
Grey scale :
16.7M colors
Material :
Die-casting aluminum
Average Power consumption :
≤310W/sqm
Max Power consumption :
≤720W/sqm
Screen Dimension :
Customized Size
Description

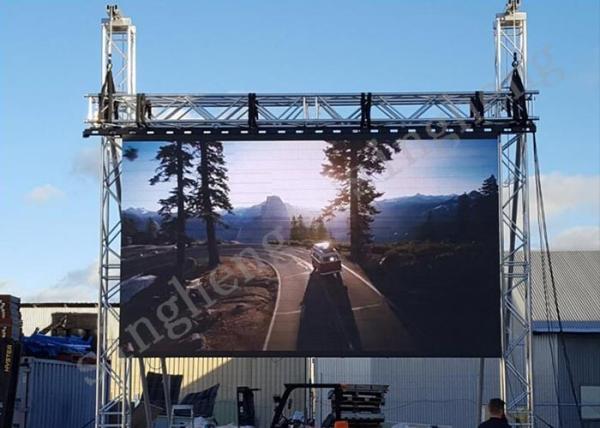

Led Panels For Stage P4.81 Led Display Screen Hire Led Screen Event

  • Product Description

1. The cabinet is light and thin, can be quickly installed, removed and transported, and is suitable for large-area rental applications.

2. It adopts synchronous control system processing and can accept various video input signals such as DVI, VGA and HDMI.

3. Video, graphics,other programs and various information can be played in real-time, synchronous and clear information dissemination.

4. The color is realistic and the adaptability is strong.

5. Light weight, single-handed, easy to install.

6. The Led screen event cabinet is formed by die-casting aluminum, which has high strength, strong toughness, high precision,and it is difficult to be deformed.

7. New structural design is to meet hanging installation and floor installation requirements and can be installed in indoor and outdoor environment

8. The Led panels for stage cabinets are connected by quick lock. The installation of one cabinet can be completed in 10 seconds.

  • Technical parametersof P4.81 Led Display Screen Hire

Unit Module

Item Parameter
Model Number P4.81-13S
Module size 250mm*250mm
Pixel pitch 4.81mm
Pixels Density 43264 dots/sqm
Pixel configuration 1R1G1B
LED Package mode SMD2727
Pixel resolution 52dots(W)*52 dots(H)
Max Power 45W
Module thickness 14.66mm
Weight 0.575kg
Drive type Constant drive
Scan mode 1/13scan
Port type HUB75-A
Brightness of white balance ≥4200cd/m2

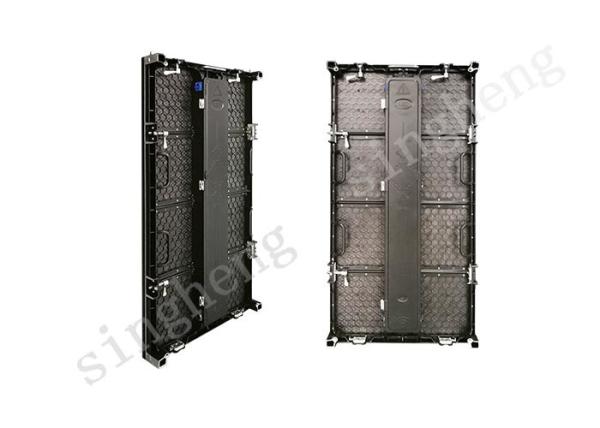

LED Cabinet

Dimension 1000mm*500mm
Monomer Module Number 8
Power supply 5V/40A*2pcs
Pixel per cabinet 208*104
Best viewing distance 5M~20M
Best viewing angle 160°(W) 120°(H)
Temperature

storage:-35℃~+85℃

working:-20℃~+50℃

Relative humidity 10%-95%
Thickness 65mm

  • FAQ

Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.

Q2:What about the lead time?
A:Orders less than 50 square meters display ,lead time is 16 days.

Q3:Can I order a sample?
A:Yes.We welcome customers to order sample to check the quality and service.

Q4:Is it OK to print my LOGO on your product?
A:Yes.We support OEM and ODM service.

Q5:What about the warranty?
A:Three year warranty
