Water Resistant Led Curtain Wall P25 Magnetic Window Screen Easy To Maintain
Water Resistant Led Curtain Wall P25 Magnetic Window Screen Easy To Maintain
Water Resistant Led Curtain Wall P25 Magnetic Window Screen Easy To Maintain
Water Resistant Led Curtain Wall P25 Magnetic Window Screen Easy To Maintain
Water Resistant Led Curtain Wall P25 Magnetic Window Screen Easy To Maintain
Water Resistant Led Curtain Wall P25 Magnetic Window Screen Easy To Maintain
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Singheng
Model Number :
P25
Price :
USD+To be negotiated+square meter
MOQ :
1 Piece/Pieces
Certification :
CE RoHS UL FCC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Usage :
Outdoor
Tube Chip Color :
Full Color
Pixels :
25mm
cabinet material :
aluminum
Best viewing distance :
>=28m
Best viewing angle :
120°(W) 60°(H)
input voltage :
AC110/220V
Average Power consumption :
≤260W/㎡
Max.Power consumption :
≤600W/㎡
brightness :
6500CD/㎡
Description

Newest Grille Mechanical Bar P25 Outdoor Full Color Magnetic Window Screen

  • Product description

1. Light weight and low wind load. The light weight is due to the screen grid, which makes the LED display transparent, so its wind load capacity is extremely strong.

2. It is suitable for the construction of super large outdoor display, which is the first choice for creating landmark dynamic display landscape.

3. Also known as LED light bar screen, LED grid screen, LED glass curtain wall display, LED strip screen, LED shaped screen.

4. IP67 high protection level. The concept of IP67 is soaking and waterproofing, that is, the overall immersion of the product.

5. Easy to install and easy to maintain. It is installed without steel structure and does not require air conditioning.

6. LED grille screen breaks through the limitation of conventional LED display to the building and wall ,making the project more flexible and more selective.

  • Technical parameter of P20 Outdoor Curtain LED

P20 FULL-COLOR TECHNICAL PARAMETER

Item

Parameter

Pixel Pitch

20 mm

Pixel Density

2500dot/sqm

Pixel Configuration

2R1G1B DIP346

Module Size

320*160 mm

Module Resolution

16*8 dot

Cabinet Resolution

12*56 dot

Cabinet Size

960*1120 mm

Cabinet Material

SPCC

Viewing Distance

≥20 m

Viewing Angle (Horizontal Axis)

120°

Viewing Angle (Vertical Axis)

80°

Refresh Rate

>600Hz

Grey Scale

65536

Brightness

≥8000cd/m2

Max Power Consumption

700 w/sqm

Average Power Consumption

2500 w/sqm

Drive Mode

static

Signal EMC

VGA,DIV,HDMI,SDI

Signal Transmission Mode

568B

Network Cable

≤100m, Multimode

Control Distance

optical fiber≤500m, Single mode optical

fiber

≤20 kilometer

Lifespan

≥100,000 h

Waterproof Grade

Outdoor Use Only

Input Voltage

AC220V±10% 50-60HZ

Celsius

Degree:—10℃-40℃

humidity:10

10—85%RH

  • FAQ

Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5
meters, P10 is suitable for watching outside 10 meters, and P16 is suitable for watching outside 16 meters,
and the other is the same. Of course, this data is not very accurate, and the customer just can refer to
it. It also depends on the size of the screen, generally it is considered that more than 100 thousand
pixels for a full color display then have a standard effect.

Q2: To order a display ,What kind of information do I have to offer you?

A:You should provide width/height of
the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide
you with a detailed list of quotations. Sometimes you should also provide information such as display
orientation, geographical location, local climate, and so on.

Q3:Is it OK to print my logo on your product?
A:Yes,We support OEM and ODM services .

Q4:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,
strictly control the production process, and pass the multiple quality inspection to ensure that every
product is qualified.

Q5:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P2 P3 P4.....P8,P10 means that the pixel pitch is 2mm 3mm 4mm....8mm,10mm, which determines the number of
pixels per unit area of a display, so it represents the clarity of the display.The smaller the pitch, the
higher the clarity. Usually, the models of indoor full color display are: P1.667, P1.875, P2.5, P3, P4, P5,
P6, P7.62, P10. Outdoor full color display are P4, P5, P6, P7, P8, P10, P16, P20, P25, P31.25 etc.

Q6:What about the lead time?
A:Orders less than 100 square meter display, lead time is 13-15 days.

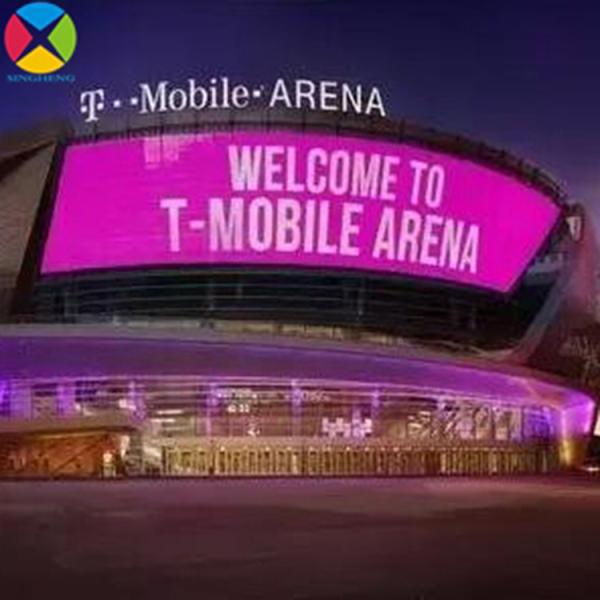

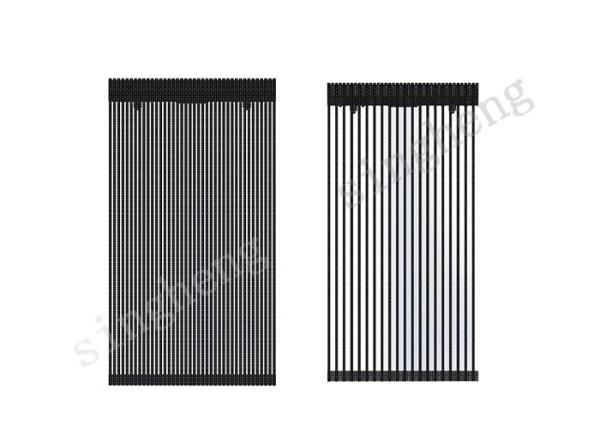

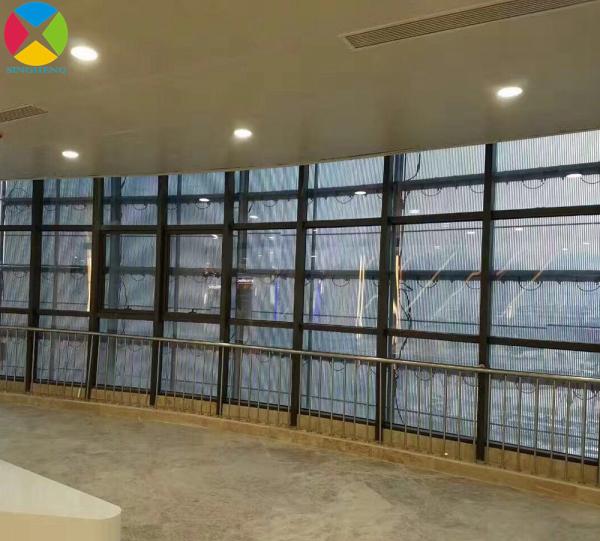

  • Product Picture

Water Resistant Led Curtain Wall P25 Magnetic Window Screen Easy To Maintain
