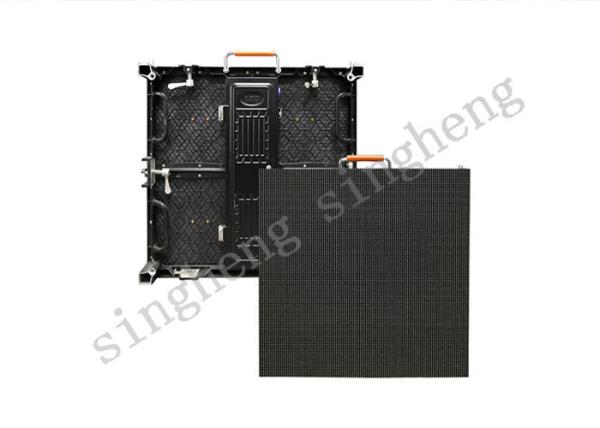

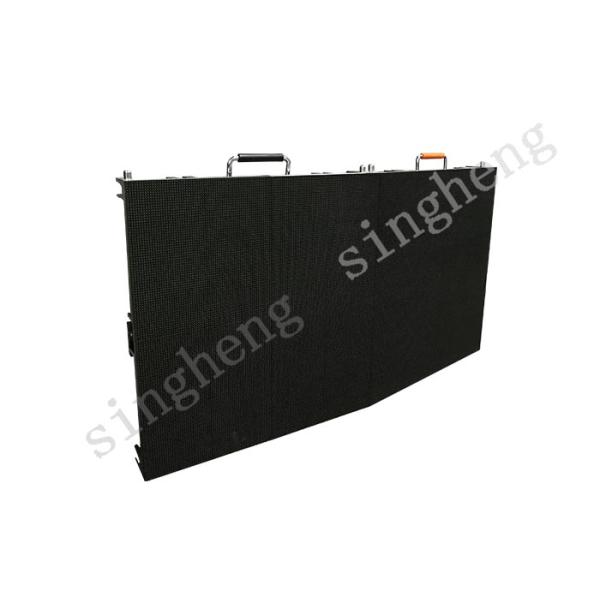

P3.91 Die-Casting Aluminum Outdoor Portable LED Rental Display For Stage Backdrop
1. The cabinet is light and thin, can be quickly installed, removed and transported, and is suitable for large area rental applications.
2. It adopts synchronous control system processing and can accept various video input signals such as DVI, VGA and HDMI.
3. Video, graphics,other programs and various information can be played in real-time, synchronous and clear information dissemination.
4. The color is realistic and the adaptability is strong.
5. Light weight, single-handed, easy to install.
6. The brightness is high , can be over 6000 nits or higher , no problem at all even under direct sunlight .
7. The cabinet is formed by die-casting aluminum, which has high strength, strong toughness, high precision,and it is difficult to be deformed.
8. Our cabinet is designed with back covers at rear side for better waterproof function. There are side locks , waterproof power and signal connectors for easy installation ,depends on customer choice.
Technical parameters
Unit Module | Item | Parameter |
Model Number | P3.91 | |
Module size | 250mm*250mm | |
Pixel pitch | 3.91mm | |
Pixels Density | 65536 dots/sqm | |
Pixel configuration | 1R1G1B | |
Package mode | SMD1921 | |
Pixel resolution | 64dots(W)*64 dots(H) | |
Max Power | 45W | |
Drive type | Constant drive | |
Scan mode | 1/16scan | |
Port type | HUB75-A | |
Brightness of white balance | ≥4200cd/sqm |

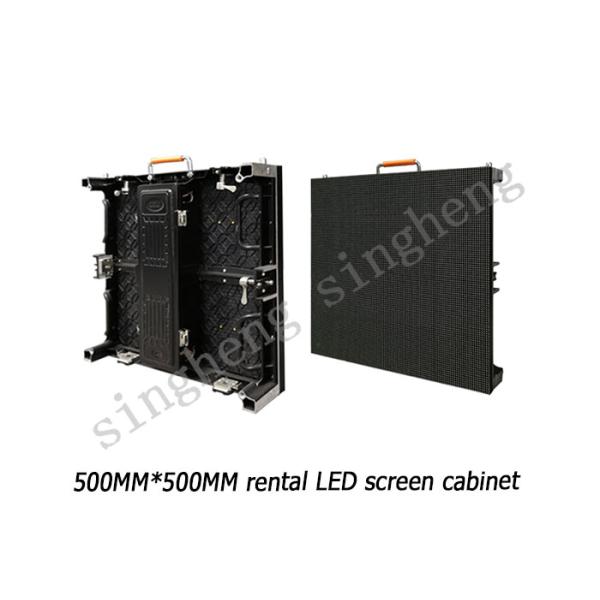

Cabinet | Dimension | 500mm*500mm |
Monomer Module Number | 4 | |
Power supply | 5V/60A*1pcs | |
Pixel per cabinet | 128*128 | |
Best viewing distance | 4M~20M | |
Best viewing angle | 160°(W) 140°(H) | |
Temperature | storage:-35℃~+85℃ working:-40℃~+50℃ | |
Relative humidity | 10%-95% | |
Weight | 8.5kg | |
Thickness | 85mm |
Q1:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q2:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.
Q3: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q4:What about the lead time?
A:Orders less than 50 square meters display ,lead time is 16 days.
Q5:Is it OK to print my LOGO on your product?
A:Yes.We support OEM and ODM service.
