Indoor Screen Video Panel Fixed Installation LED Full Color Display
Technical Prameters
Pixel pitch | 3mm |
Pixel Configuration | 1R1G1B |
LED component | SMD2121 black |
Size of module | 192mm x 192mm |
Resolution of module | 64x64 |

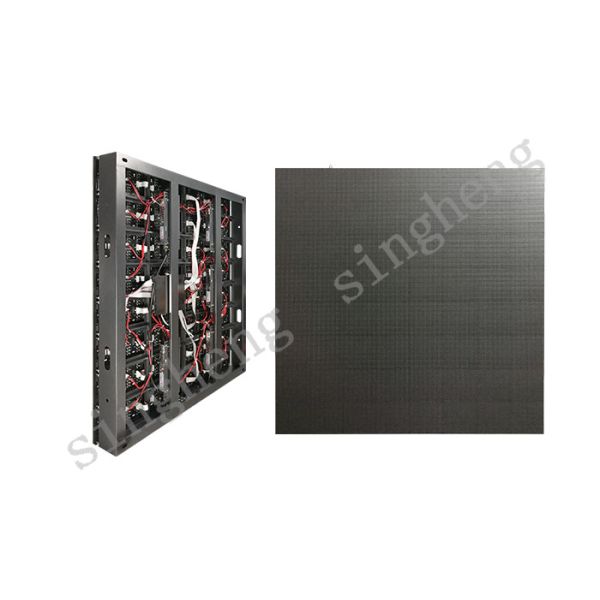

Size of cabinet | 960mm x 960mm x 110mm |
Resolution of cabinet | 192x192 |
Material of Cabinet | Iron |
Brightness | >1200cd/sq.m |
Density | 160000dots/sq.m |
Best viewing angle | 140 /120 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 3-30M |
Maximum power consumption | 640W/sqm |
Average power consumption | 265W/sqm |
Driving method | 1/32 scan |
Control method | Synchronization |
Gray scale | 65536 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >3000Hz |
IP grade | IP30 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Product Description
1.With the best SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.
2. RGB deep gray processing to show any color.
3. Support point correction function, ensure the consistency of the color and the brightness in the process of use.

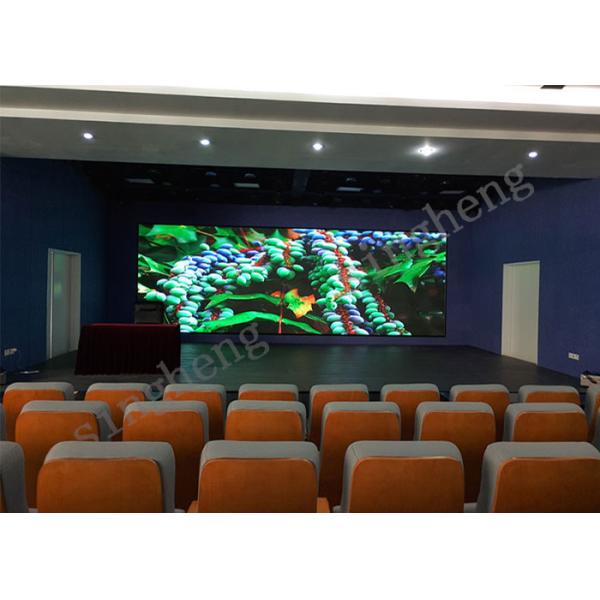

4. Accurate, shortcut, flexile installation, can be applied to any different installation environment.
5. Complete series, customized to satiny any requirements of customers
6.With the high quality raw material, mature process and scale production,the quality is ensured.
Q1:LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.
Q2: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q3:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.
Q4:What about the warranty?
A:Three year warranty
Q5:Can I order a sample?
A:Yes.We welcome customers to order sample to check the quality and service.
