2018 singheng hot sale full color small pixel pitch led display
INTDOOR FULL-COLOR DISPLAY TECHNICAL PARAMETER | |||||
Item | P1.25 | P1.56 | P1.667 | P1.875 | P1.923 |
Pixel Pitch | 1.25mm | 1.25mm | 1.667mm | 1.875mm | 1.923mm |
Pixel Density | 640000dot/sqm | 409600dot/sqm | 360000dot/sqm | 280000dot/sqm | 270442dot/sqm |
Pixel Configuration | 1R1G1B SMD0808 | 1R1G1B SMD1010 | 1R1G1B SMD1010 | 1R1G1B SMD1010 | 1R1G1B SMD1515 |
Module Size | 200*100 mm | 200*150 mm | 200*150 mm | 240*240 mm | 200*150 mm |
LED brand | Taiwai EPISTAR | Taiwai EPISTAR | Taiwai EPISTAR | Taiwai EPISTAR | Taiwai EPISTAR |
Cabinet type | Closed | Closed | Closed | Closed | Closed |
Cabinet Material | diecast aluminum | diecast aluminum | diecast aluminum | diecast aluminum | diecast aluminum |
Module Resolution | 160*80 mm | 128*96 mm | 120*90 | 128*128 dot | 104*78 dot |
Weight | 25KG/sqm | 25KG/sqm | 25KG/sqm | 25KG/sqm | 25KG/sqm |
Viewing Distance | ≥1.3M | ≥1.6M | ≥1.7M | ≥1.8m | ≥1.9 m |
Viewing Angle (Horizontal) | 140° | 140° | 140° | 140° | 140° |
Viewing Angle (Vertical ) | 120° | 120° | 120° | 120° | 120° |
Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
Grey Scale | 65536 | 65536 | 65536 | 65536 | 65535 |
Brightness | ≥1000cd/m2 | ≥1000cd/m2 | ≥1000cd/m2 | ≥1000cd/m2 | ≥1000cd/m2 |
Max Power Consumption | 1250 w/sqm | 1250 w/sqm | 1250 w/sqm | 1250 w/sqm | 1250w/sqm |
Average Power Consumption | 540 w/sqm | 540 w/sqm | 540 w/sqm | 550 w/sqm | 543w/sqm |
Drive Mode | 1/20 Scant | 1/32 Scant | 1/30 Scant | 1/32 Scant | 1/26 Scant |
Lifespan | ≥10,0000 h | ≥10,0000 h | ≥10,0000 h | ≥10,0000 h | ≥10,0001 h |
Waterproof Grade | IP40 | IP40 | IP40 | IP40 | IP40 |
Input Voltage | AC105-235V 50-60HZ | AC105-235V 50-60HZ | AC105-235V 50-60HZ | AC105-235V 50-60HZ | AC105-235V 50-59HZ |
Celsius | 0℃-40℃ | 0℃-40℃ | 0℃-40℃ | 0℃-40℃ | 0℃-39℃ |
humidity | 10—75%RH | 10—75%RH | 10—75%RH | 10—75%RH | 10—74%RH |
Control Distance | Network Cable≤100m, Multimode optical fiber≤500m, Single mode optical≤20 kilometer |
1.With the professional aviation plug as the connectors ensure the quality and safety.
2.With the high quality raw material, mature process and scale production,the quality is ensured.
3. Outdoor HD LED Display Leader, very mature product. Initial creator for such panel, light-proof. Super slim, light weight, can meet the most demanding requirements.
4. Outdoor LED Display Module, Excellent Display Effect Outdoor LED Display ,Broadcast color gamut, intelligent adjustment for color temperature and brightness. Uniform color, high contrast, the picture is vivid and Nature.
5. Outdoor LED Display, IP65, Fast Installation IP65 for modules, meets outdoor naked installtion requirements. Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.

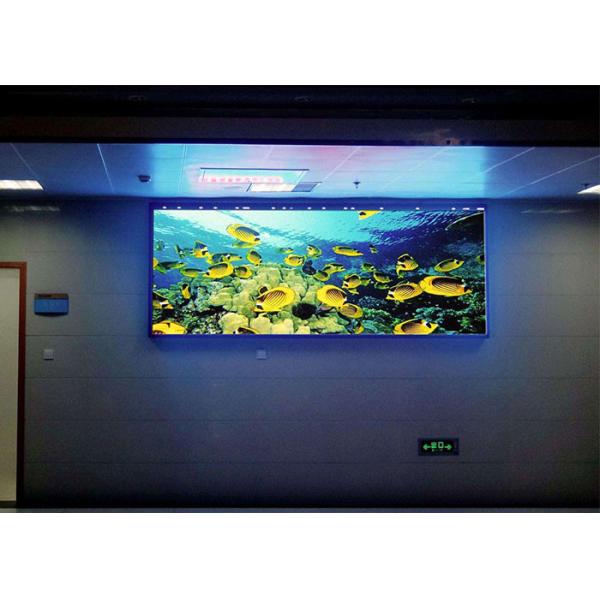

Pictures of full color small pixel pitch led display
FAQ
Q1: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q2:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q3:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.
