P3.91-16S HD Digital Rental LED Screen 500*500 For Stage/Public Events Like Wedding, Music Concert
P3.91-16S HD Digital Rental LED Screen 500*500 For Stage/Public Events Like Wedding, Music Concert
Specifications
Brand Name :
Singheng
Model Number :
P3.91-16S
Certification :
CE ROHS FCC
Place of Origin :
SHENZHEN, CHINA
MOQ :
1 piece
Price :
USD+to be negotiated+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square metre+per month
Delivery Time :
10-16 working days after deposit received.
Packaging Details :
Flight Case
Module size :
250mm*250mm
Pixel pitch :
3.91mm
Pixels Density :
65536 dot/m2
LED lamp :
Taiwan EPISTAR
Pixel configuration :
1R1G1B
Package mode :
SMD1921
Brightness of white balance :
≥4200cd/m2
Refresh frequency :
≥1200HZ
Port type :
HUB75-A
Usage :
Outdoor
Screen dimension :
Customized Size
Life span :
100000hours
Application :
Stage, Wedding, Live Events Led Display,TV station and so on
Waterproof :
IP65
Description

outdoor mobile led screen smd outdoor led display aluminum light cabinet

Parameters:

Item Outdoor
P3.91 P4.81 P5.95 P5
Pixel pitch 3.91mm 4.81mm 5.95mm 5 mm
Pixels Density 65536dot/sqm 43264dot/sqm 28224dot/sqm 40000dot/sqm
Pixel configuration 1R1G1B SMD2727 1R1G1B SMD3535 1R1G1B SMD3535 1R1G1B SMD3535
Module size 250*250 mm 250*250 mm 250*250 mm 320*160 mm
Chip Type TAIWAN epistar TAIWAN epistar TAIWAN epistar TAIWAN epistar
Cabinet Material Closed Closed Closed Closed
Cabinet Material Die casting Aluminum Die casting Aluminum Die casting Aluminum Die casting Aluminum
Pixel resolution 64*64 52*52 dot 42*42dot 64*32 dot
Weight 25KG/sqm 25KG/sqm 25KG/sqm 25KG/sqm
Best viewing distance ≥4M ≥5m ≥6 m ≥5 m
View Angel(Horizontal) 140° 140° 140° 140°
View Angel(Vertical) 120° 120° 120° 120°
Refresh Rate ＞1920Hz ＞1920Hz ＞1920Hz ＞1920Hz
Grey Scale 65536 65536 65535 65536
Brightness ≥5000cd/m2 ≥4500cd/m2 ≥4500cd/m2 ≥6500cd/m3
Max power consumption 720 w/sqm 600 w/sqm 600w/sqm 950 w/sqm
Average Power Consumption 310 w/sqm 260w/sqm 260w/sqm 410w/sqm
Drive Mode 1/16 Scan 1/13 Scan 1/14 Scan 1/8 Scan
Lifespan ≥10,0000 h ≥10,0000 h ≥10,0001 h ≥10,0000 h
Waterproof IP65 IP65 IP65 IP65
Input Voltage AC105-235V 50-60HZ AC105-235V 50-60HZ AC105-235V 50-60HZ AC105-235V 50-60HZ
Working temperature subzero 40℃-40℃ subzero 40℃-40℃ subzero 40℃-40℃ subzero 40℃-40℃
Humidity 10—75%RH 10—75%RH 10—74%RH 10—75%RH
Control distance Network Cable<=100m Multimode optical fiber<=500m Single mode optical<=20 Kilometers

Description:
1. Die-casting aluminum CABINET offers high strength, strong toughness, high precision and is difficult to be deformed.
2. New structural design easy for both hanging installation and floor installation, can be used indoor or outdoor.
3. Cabinets joint by quick locks, easy and fast for assembly and disassembly, it takes only 10 seconds to assemble one cabinet.
4. Aluminum allows better heat release.
5. Light Weight, economical for installation and power consumption, both money and labor saved.

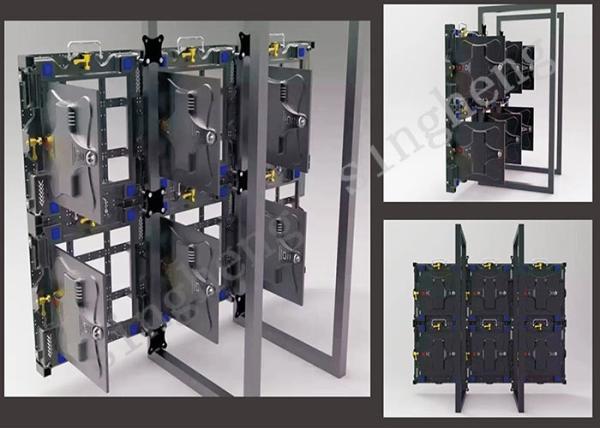

Pictures:

P3.91-16S HD Digital Rental LED Screen 500*500 For Stage/Public Events Like Wedding, Music Concert

FAQ

Q1: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.

Q2:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.

Q3:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.

Q4:What about the warranty?
A:Three year warranty

Q5:What about the lead time?
A:Orders less than 50 square meters display ,lead time is 16 days.
