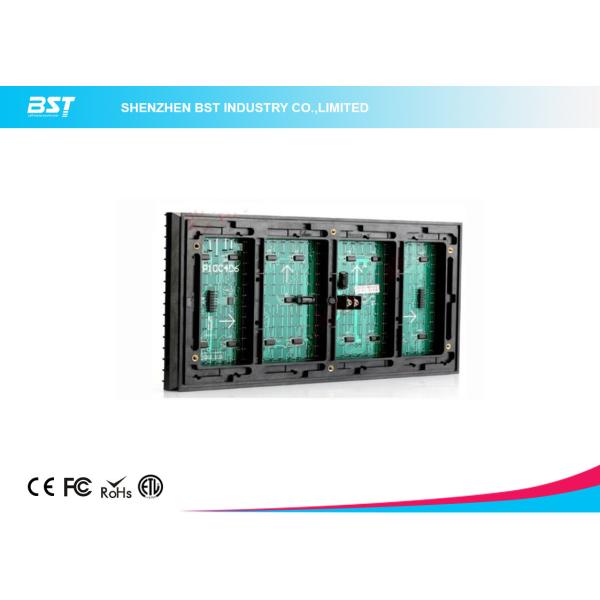

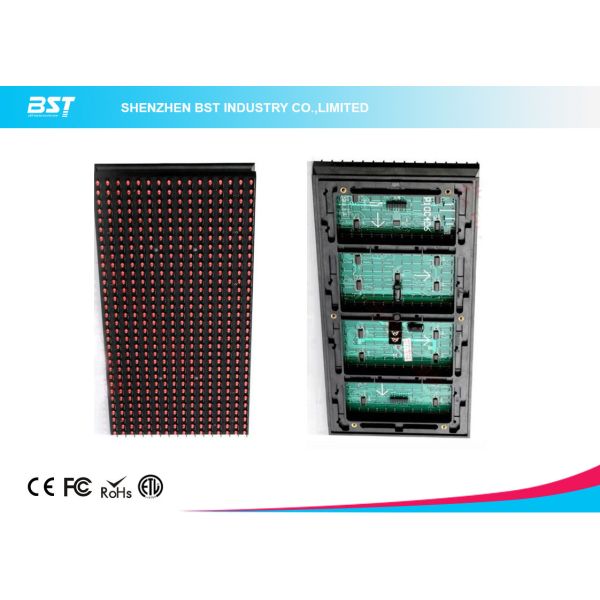

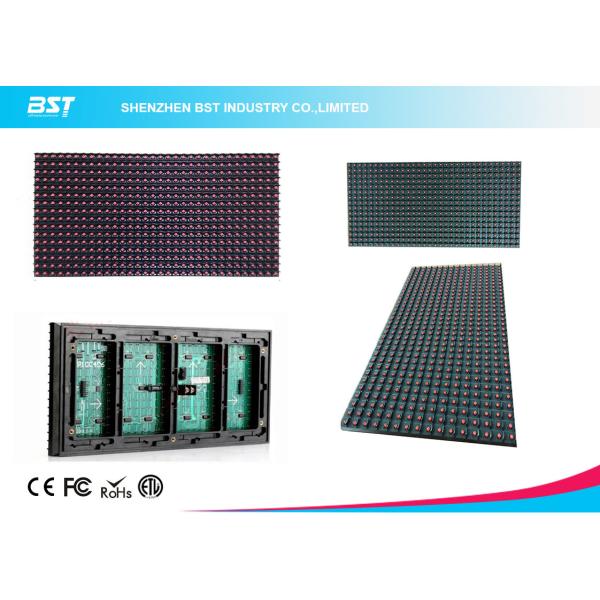

Epistar P10 LED Display Module outdoor red color with HC595 drive IC
Epistar P10 LED Display Module outdoor red color with HC595 drive IC
Epistar P10 LED Display Module outdoor red color with HC595 drive IC
Epistar P10 LED Display Module outdoor red color with HC595 drive IC
Epistar P10 LED Display Module outdoor red color with HC595 drive IC
Epistar P10 LED Display Module outdoor red color with HC595 drive IC
Epistar P10 LED Display Module outdoor red color with HC595 drive IC
Epistar P10 LED Display Module outdoor red color with HC595 drive IC
Specifications
Brand Name :
BST
Model Number :
BST-OM10
Certification :
CE, RoHS, FCC, ISO
Place of Origin :
China
MOQ :
1 PCS / 1 Unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20,000 Pieces per month
Delivery Time :
10-20 days after receive payment
Packaging Details :
Carton case, Plywood case ;
LED Brand :
Epistar
LEDs :
DIP346
Waterproof :
IP65
Warranty :
2 years
Display Color :
Single red color
Work voltage :
5V
Description

Epistar P10 LED Display Module outdoor red color with HC595 drive IC

Quick Detail:

1. 320x160 mm;

2. HC595 drive IC;

3. 1/4 scan constant current.

4. DIP346 LED type;

5. Red LED is Epistar brand;

6. 32x16 dots;

7, Factory price and fast delivery

Detail Description:

There are Epistar LED chip;HC595 driving IC;, 1/4 scan;

Each LED module is with 32 by 16 dots, 320 by 160 mm size.

Carton box packed, EPE foam inside.

Energy saving, high definition, low heat productivity, superb cost effectiveness.

With good lightening accordance and no mosaic.

Different video frequency can be changed freely at the same time, and the image can be enlarged and

shrinked.

Specification:

Unit Module Item Parameter
Model Number PH10
Module size 320mm*160mm
Pixel pitch 10mm
Pixels Density 10000dots per square
Pixel configuration 1R
Package mode DIP346
Pixel resolution 32 dots(W)*16 dots(H)
Max Power consumption 12W
Weight 0.3kg
Drive type Constant drive
Scan mode 1/ 4 scan
Port type HUB75-A
Brightness of white balance Above 3500cd per square
Package of Carton 467*451*230mm
Quantity 80 pcs
G. weight 13.3kg

LED

Unit Module

 Dimension 960mm*960mm
Quantity of module 18
Power supply 5V/60A*2 pcs
Thermal discharge fan 4pcs
Pixel per cabinet 96*96
Best viewing distance 10M to 30M
Temperature

storage:-35Celsiys to +85Celsiys

working:-20Celsiys to+50Celsiys
Operation humidity 10%-95%
Thickness 130mm
Power Working voltage AC110V/220V±10%
Average Power consumption 200W/Sqm
Max. Power consumption Below 600W/Sqm
Current Below 20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7/WIN8
Control method Synchronization

Main technical

parameter

 Driving device Constant current driver IC
Refresh frequency Above 1500HZ
MTBF Above 10000 hours
Power switch Automatic switch

Epistar P10 LED Display Module outdoor red color with HC595 drive IC

Epistar P10 LED Display Module outdoor red color with HC595 drive IC

Epistar P10 LED Display Module outdoor red color with HC595 drive IC

Epistar P10 LED Display Module outdoor red color with HC595 drive IC

Epistar P10 LED Display Module outdoor red color with HC595 drive IC
