PH8mm RGB large led video display , custom led digital display SMD3535
PH8mm RGB large led video display , custom led digital display SMD3535
PH8mm RGB large led video display , custom led digital display SMD3535
PH8mm RGB large led video display , custom led digital display SMD3535
PH8mm RGB large led video display , custom led digital display SMD3535
PH8mm RGB large led video display , custom led digital display SMD3535
Specifications
Brand Name :
SRYLED
Model Number :
SRY - OFS - P8
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 750 - 850 / Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10-12 work days
Packaging Details :
Wooden Case (case size based on cabinet size and quantity)
Pixel Pitch :
8mm
LED Encapsulation :
SMD3535
Module Size :
256mm x 128mm
Brightness :
6,500nits
Waterproof :
IP65
MTBF :
10,000hrs
Lifespan :
100,000hrs
Warranty :
2 full years
Description

PH8mm RGB large led video display , custom led digital display SMD3535

Decription:

Waterproof PH8mm RGB Full Color Outdoor Advertising LED Billboard Screen 1R1G1B, brightness is higher than 6,500nits. Best viewing distance is 8m - 80m. Max power consumption is 800W/sqm. To sum up this kind P8 sells very well in LED displays area. It is the best seller among all LED displays.

Features:
1. High brightness

2. Easy to maintain

3. Good color uniformity

4. Low power consumption

5. Slim screen thickness

6. Light cabinet design

7. 100,000hrs lifespan

Specificition:

Pixel Pitch

8mm

Pixel Density

15,625dots/sqm

Color Configuration

1R1G1B

LED Encapsulation

SMD3535

Module Size

256mm x 128mm

Module Resolution

16dots x 8dots

Drive Duty

1/4scan Constant Current

Brightness

>6,500nits

Viewing Distance

8m - 80m

Viewing Angle

H: 120°; V: 120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

AC110V/ 220V/ 50HZ

Max Power Consumption

800W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS

Application:

Outdoor column LED billboards are widely use in road side, express way, gas station, playground and

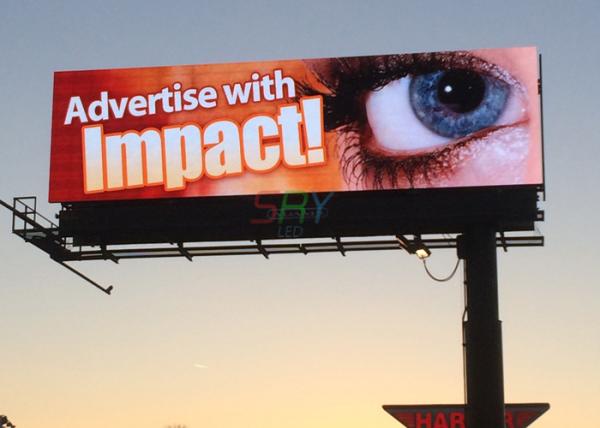

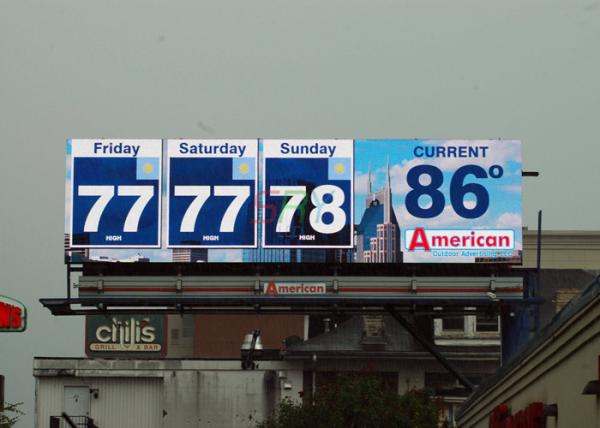

Related Pictures:

PH8mm RGB large led video display , custom led digital display SMD3535

PH8mm RGB large led video display , custom led digital display SMD3535

PH8mm RGB large led video display , custom led digital display SMD3535

Competitive Advantages:

1. Energy-saving pioneer:

The max powder consumption is only 410w/sqm,30% energy-saving more than others,environmental friendly,more economical.

2. High protection,stable and reliable product:

Can withstand cold,hot,humind and other kinds of tests.It is stable,reliable and trusworthy.

3. Fast delivery:

Product standardization,large-scale production,rapid delivery.
