SMD 8mm Truck Mounted LED Screen , digital efficiency truck led boards

Feature

SRYLED new mobile LED display provides close 16:9 HD format that extends 20’ or more in the air for maximum viewing. Both trailers are self-contained and offer 360 degree rotation for day and night-time events. This advanced design is adaptable to all OEM tiles from premium LED manufacturers. Our LED Display Trailers can be built with our standard electronics package (which includes audio/visual equipment and LED tiles) or it can be customized to integrate your already existing equipment and LED tiles.

1. Power Supply System

External power for LED screen and rotating bodies.

Vehicle power for hydraulic system.

2. Hydraulic Power System

Imported independent hydraulic power unit with vehicle power supply or PTO power systems as power source.

3. Hydraulic Support Unit

a. Four hydraulic legs,the ground support vehicle stability.

b. Expand legs, the transverse distance up to 4000mm, vertical distance up to 5000mm, the structure is very stable.

c. Wind resistance of the design up to 12 Typhoon in theory.

4. Totating Mechanism

A totating speed of 0.5r/min

Description

1. Chassis dimension length/width/height (mm): 6970×2240×2450 mm

2. Chassis model: CDW5040XXY

3. Wheelbase (mm): 3360mm

4. Tire specification: 8.25-16 nylon tire (6 units)

5. Fuel type: Diesel

6. Engine: YC4D130-41 (Turbo Diesel)

7. Exhaust/ Power (ml/kw): 4200ml/96kw

8. Engine Manufacturer: Guangxi Yuchai Engine group

9. Hydraulic pump which can lift the screen up for 1.8m

10. Engine: OM15CY (OUMA)

Rated power: 15/15KVA

HZ:50 HZ

Rated voltage:230V

Rated current:65.2A

PF:1.0

Rated rotate speed:1500r/min

Phase:Single

Weight: 480kgs

11. Screen Pixel: 8mm

Screen size: 3.072 x 2.048 m

12. Four hydraulic legs

13. At the top of the compartment, equipped one cooling exhaust fan,220V

14. Waterproof audio equipment (four units)

Specification

Applications

1. Trucks,dump trucks and tipper trucks

Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks;

bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck;

garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform a

nd so on.

2. Special-purpose vehicles

Trailer; various semi trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi container trailers;

goose low bed trailers; fuel tank trailers.

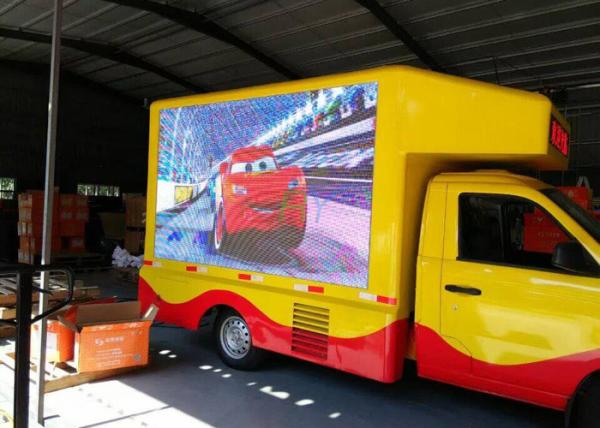

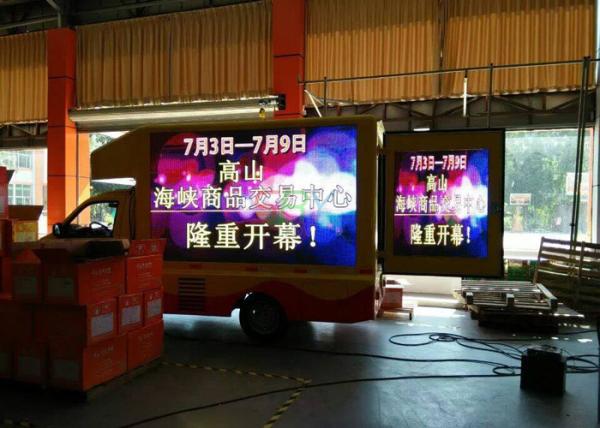

Product Images
