PH5.95 500mm x 500mm Curved LED Screens , IP65 curved led panels display
PH5.95 500mm x 500mm Curved LED Screens , IP65 curved led panels display
PH5.95 500mm x 500mm Curved LED Screens , IP65 curved led panels display
PH5.95 500mm x 500mm Curved LED Screens , IP65 curved led panels display
PH5.95 500mm x 500mm Curved LED Screens , IP65 curved led panels display
PH5.95 500mm x 500mm Curved LED Screens , IP65 curved led panels display
Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - IFS - P5.95
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 970 - 1,050 / Square Meter
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10 - 12 Work Days
Packaging Details :
Flight Case (flight case size depend on cabinet quantity)
Input Voltage :
AC 110V - 220V ±15%, 50HZ
Cabinet Material :
Aluminum
Waterproof :
IP65
Cabinet Size :
500mm x 500mm
Cabinet Weight :
6kg
Lifespan :
>100,000hours
Warranty :
2 Full Years
Certificate :
CE, LVD, RoHS
Description

PH5.95 500mm x 500mm Curved LED Screens , IP65 curved led panels display

Decription:

Indoor Curved Full Color PH5.95 HD 500mm x 500mm Die-casting Aluminum Cabinet LED Display. Its cabinet has super light design, which saves labor cost. At the meantime, with energy-saving design. It becomes very popular.

Features:

1. Mainly be used for indoor and outdoor advertising, and outdoor wall decoration.

2. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.

3. Curve degrees can be adjusted accordingly to different requests of architectural design.

4. Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.

5. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining;


Specification:

Pixel Pitch

5.95mm

Pixel Density

28,224dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

 SMD3528

Module Size

250mm x 250mm

Module Resolution

42dots x 42dots

Cabinet Size

500mm x 500mm

Cabinet Resolution

84dots x 84dots

Drive Duty

1/7 Constant Current

Brightness

>1,500nits

Viewing Distance

6m - 60m

Viewing Angle

H: 120°, V120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

AC110V - 220V ±15%, 50HZ

Max Power Consumption

630W/sqm

Ave. Power Consumption

315W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Cabinet Weight

6kg

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS


Application:

Widely using for theater, stadium, showroom, stage, monitoring room and etc.

Related Pictures:

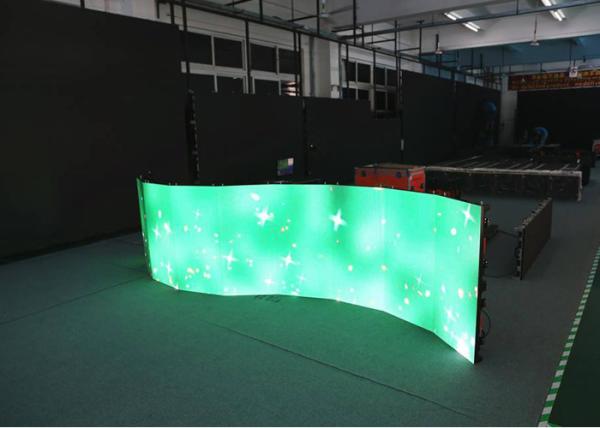

PH5.95 500mm x 500mm Curved LED Screens , IP65 curved led panels display


Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.


2. Superb performance / price ratio solution for rental market.

3. 2 full years warranty. 24hours/week on-line service.

4. Plug and play, without tools to install / uninstall one cabinet in 6s.

5. One set cabinet structure is compatiable with various pixel pitches module.
