8,000nits P16 electronic Curved LED Screens for Commercial Advertising
8,000nits P16 electronic Curved LED Screens for Commercial Advertising
8,000nits P16 electronic Curved LED Screens for Commercial Advertising
8,000nits P16 electronic Curved LED Screens for Commercial Advertising
8,000nits P16 electronic Curved LED Screens for Commercial Advertising
8,000nits P16 electronic Curved LED Screens for Commercial Advertising
8,000nits P16 electronic Curved LED Screens for Commercial Advertising
8,000nits P16 electronic Curved LED Screens for Commercial Advertising
Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - OFS - P16
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 700 - 750 / Square Meter
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10 - 12 Work Days
Packaging Details :
Plywood Case (Plywood case size depend on cabinet quantity)
Input Voltage :
AC 110V - 220V ±15%, 50HZ
Cabinet Material :
Aluminum
Waterproof :
IP65
Cabinet Size :
1,024mm x 1,024mm
Cabinet Weight :
60kg
Lifespan :
>100,000hours
Warranty :
2 Full Years
Certificate :
CE, LVD, RoHS
Description

8,000nits P16 electronic Curved LED Screens for Commercial Advertising

Decription:

8,000nits Outdoor Curved P16 Full Color LED Display for Commercial Advertising Use, Ultra bright.

Features:

1. Mainly be used for indoor and outdoor advertising, and outdoor wall decoration.

2. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.

3. Curve degrees can be adjusted accordingly to different requests of architectural design.

4. Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.

5. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining.

Specification:

Pixel Pitch

16mm

Pixel Density

3,906dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B

LED Encapsulation

 DIP346

Module Size

256mm x 256mm

Module Resolution

16dots x 16dots

Cabinet Size

1,024mm x 1,024mm

Cabinet Resolution

64dots x 64dots

Drive Duty

Static Constant Current

Brightness

>8,000nits

Viewing Distance

16m - 160m

Viewing Angle

H: 120°, V120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

AC110V - 220V ±15%, 50HZ

Max Power Consumption

1,200W/sqm

Ave. Power Consumption

400W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Cabinet Weight

60kg

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS

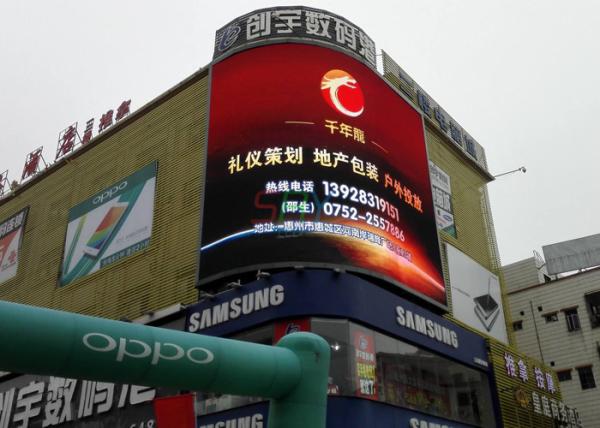

Application:

Widely using for theater, stadium, showroom, stage, monitoring room and etc.

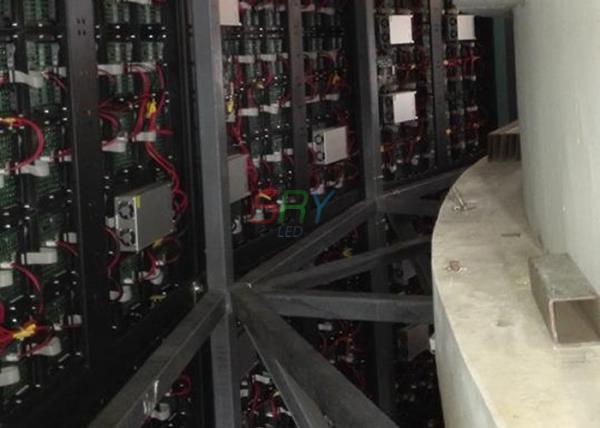

Related Projects:

8,000nits P16 electronic Curved LED Screens for Commercial Advertising

8,000nits P16 electronic Curved LED Screens for Commercial Advertising


Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.


2. Superb performance / price ratio solution for rental market.

3. 2 full years warranty. 24hours/week on-line service.

4. Plug and play, without tools to install / uninstall one cabinet in 6s.

5. One set cabinet structure is compatiable with various pixel pitches module.
