IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P5
Certification :
1/8 Scan
Place of Origin :
China
MOQ :
2sqm
Price :
800-1200USD/sqm
Payment Terms :
T/T, Western Union, PayPal, D/A, D/P, L/C, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
5mm
Led Type :
SMD2727
Material :
Die Casting Aluminum
Cabinet Size :
640mm x 640mm
Cabinet Weight :
12KG/pcs
Waterproof :
IP65
Volatage :
110-220V AC
Description

IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM

Description

1) SMD 2727 white LED,brightness is high and viewing angle can reach 140 degree horizontally and vertically.


2) It is ultrathin andsuperlight : only 12KG per panel.


3) It can be hung on truss or install on floor ,installation is easy.


6) With fast lock system, it is fast to install and dismantle. It saves labor costs.


7) The gap between adjacent panels can be controlled to minimum.


8) High refresh rate , high gray scale, high resolution, it shows very clear and vivid video / images.


9) It is almost no noise .

10) It is very convenient to carry anywhere because it is carried by cases with wheels .

Features


1. Cabinet size: 640mm x 640mm, 12KG/pcs

2, Refresh rate: 1500Hz/s

3, Brightness: 6500cd/sqm

4, Control system: Linsn / Nova / Colorlight / Xixun

5, Control way: Synchronous / WIFI / USB / 3G


Applications

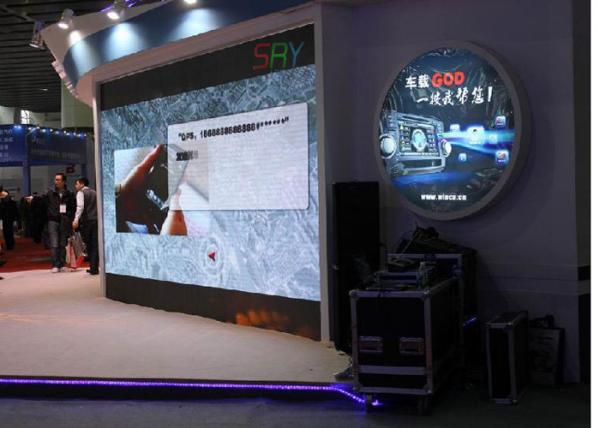

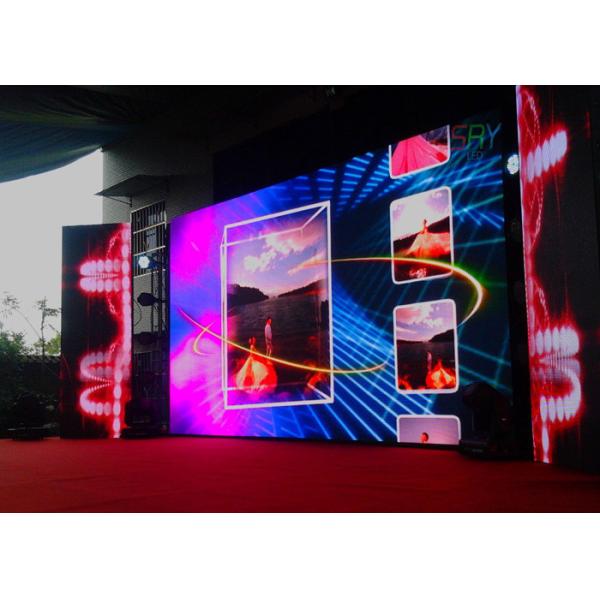

Widely applied outdoor advertising, product conference, concert, stage background, news conference, fashion show etc.

Specifications

Pixel Information Pixel Pitch 5mm
Pixel Density 40000 Pixels/m2
Pixel Configuration SMD2727
LED Wavelength Red: 615 nm - 635 nm
Green: 520 nm - 535 nm
Blue: 465 nm - 475 nm
LED Module Module Size(mm) 320 × 160 / 160x160
Module Resolution 64× 32 / 32 x 32
Cabinet Cabinet Size(mm) 640 × 640 × 80
Cabinet Resolution 128 × 128
Total QYT Module Per Cabinet 2 × 4
Cabinet Weight 12kg/pcs
Cabinet Material Die-casting Aluminum LED Display
Power Input Voltage 100-240V AC, 50/60Hz
Max Power Consumption 820 Watt/㎡
Avg. Power Consumption 350 Watt/㎡
Brightness ≥6500cd/m2
Brightness Uniformity Luminance Discrepancy < 5%
Best Viewing Angle Horizontal:140°,Vertical:140°
Viewing Distance 5 - 150 meters
Ambient Conditions Temperature Range Working:-20deg. to +60deg
Operating Humidity 10%-90%RH
Ingression Protection Grade IP65
Processing Scanning Mode 1/8 scanning
Refresh Frequency 1500HZ, Adjustable(depends on control system)
Signal Input DVI, Composite Video for Live Video
Supported Networking Through LAN/WAN, RS 232/RS485
Controller Linsn or Nova or Xixun

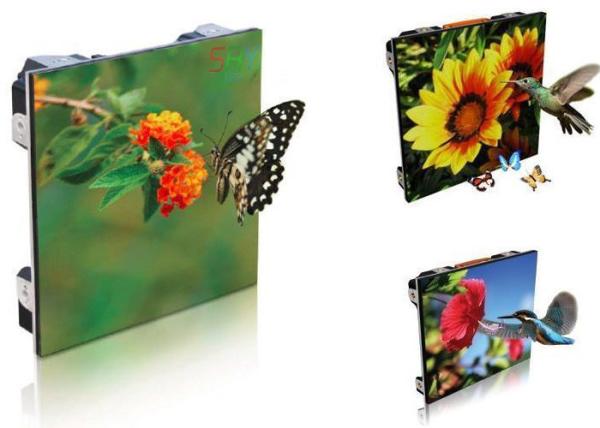

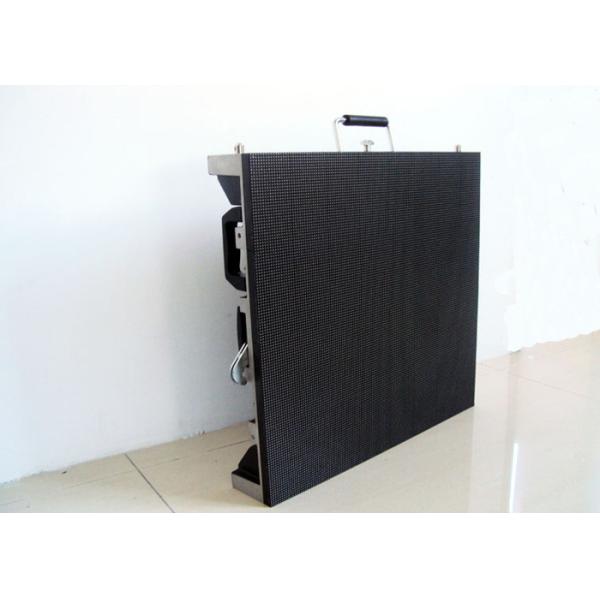

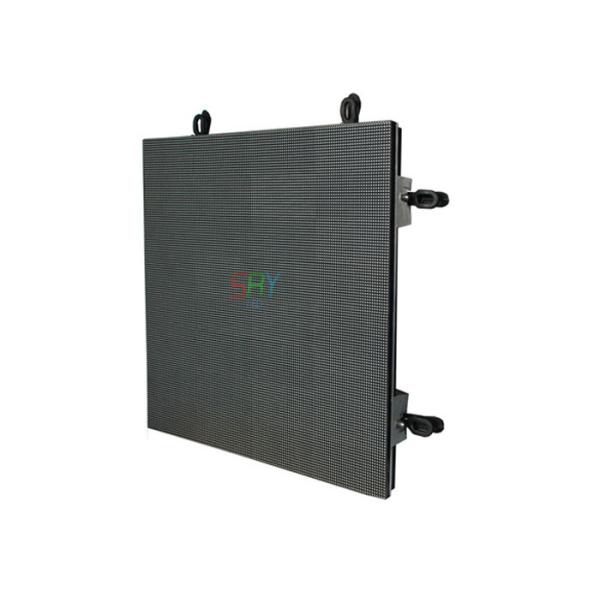

Product Images

IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MMIP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM

IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
