P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
Specifications
Brand Name :
SRYLED
Model Number :
SRY-IF-P5
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
500-900USD/sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
5mm
Module Size :
320mm x 160mm
Confirguration :
RGB 3 in 1
Led Chip :
SMD3528
Drive Method :
1/16 scan
Cabinet Size :
640mm x 640mm
Cabinet Weight :
12KG/pcs
Material :
Die Casting Aluminum
Usage :
Rental
Description

P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm

To meet the various growing demands of the rental market, SRYLED now focus on producing die-cast aluminum rental series led screen

Description

1, Ultra light: P5 indoor die casting aluminum cabinet weight only 12KG/pcs. It can be lifted by one person, easy to installation.

2, Super thin: Die-cast aluminum molding technology produces high precision and rigid cabinet. It helps lower the transportation cost.

3, High precision: Cabinet size is accurate to 0.1mm.

4, Compatible: Same cabinet can suit for indoor hanging and stowing.

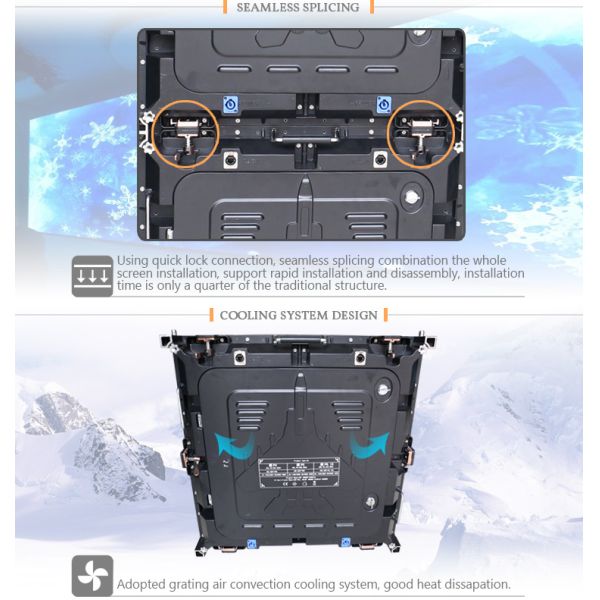

5, Quick: Four sets fast lock locate in left and right side, so does up and down side. Without professional tooling, only two hands can install led cabinets.

6, Cost: Energy saving design, it greatly reduces the operation cost.

7, Gray scale 16 bit, refresh rate is above 1000Hz.

8, Synchronous control system, DVI, VGA, HDMI, S-video, composite, YUV and other video input signal are acceptable, support displaying videos, graphic programs and all kinds of information in real-time.

Features


1, Equipped with professional video processor, which supports signal formats like RGB, DVI, Composite Video, HDMI, SDI , broadcast etc.

2, With video processor, the displaying effect is better, clear picture and no blink.

3, Supports brightness adjustment.

4, Protection grade is IP43, for indoor rental use.

5, Flight case would be provided in order to store and transport conveniently.

6, It is usually used for stage background and wedding background, club etc.

Competitive Advantages

1, First-class led chip and IC

2, Compettive factory price

3, Good 24hours service

4, Green product 50% energy saving

5, Fast delivery time 7-15 days

Specification

Pixel Pitch

5mm

Pixel Density

40000dots/sqm

Color Configuration

1R1G1B

LED Package

SMD3528

Module Size

320mm x 160mm/ 160mm x 160mm

Module Resolution

64dots x 32dots/ 32dots x 32dots

Drive Mode

1/16 Scan

Standard Cabinet Size

640mm x 640mm

Cabinet Weight

12KG

Brightness

≥1500 cd/sqm

Viewing Distance

5m-50m

Viewing Angle

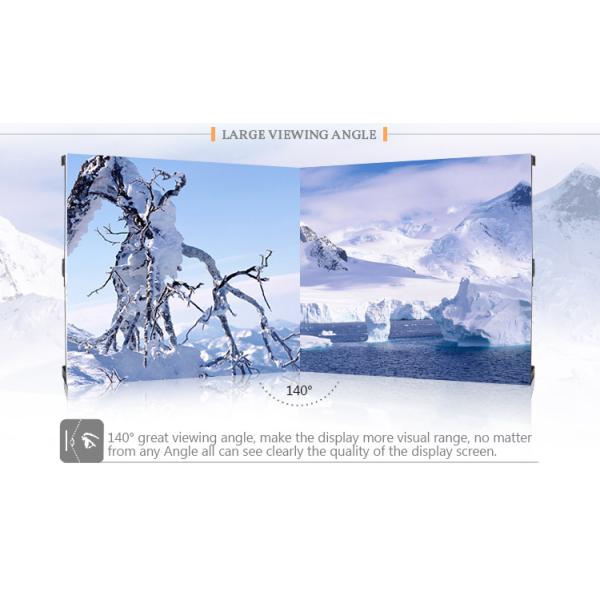

H: 140°; V:120°

Refresh Rate

2000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

800W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Control PC

With DVI Graphic card

Operating System

Win 98, Win2000, XP, Win7, Win8

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

Applications

Business Organizations

Supermarket, large-scale shopping malls, star-rated hotels, travel agencies

Financial Organizations

Banks, insurance companies, post offices, hospital, schools

Public Places

Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms

Entertainments

Movie theaters, clubs, stages

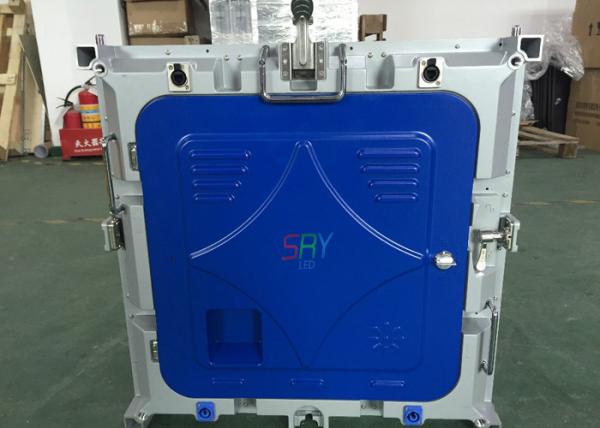

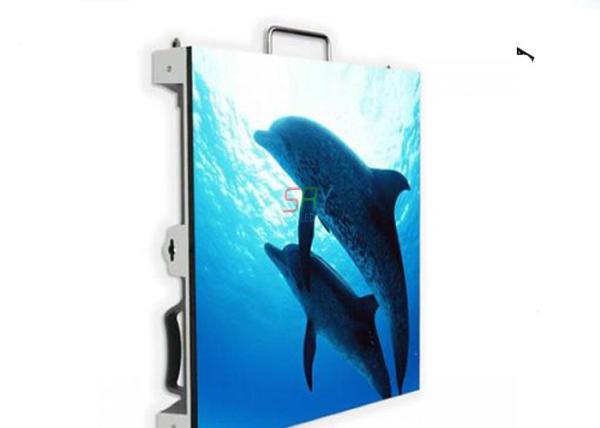

Product Images

P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm

P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm

P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm

P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm

P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm

P5 SMD 3528 Full Color Outdoor Led Display Die Casting Aluminum Cabinet 640mm x 640mm
