Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P6
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
790-1100USD/sqm
Payment Terms :
T/T, Western Union, PayPal, L/C, D/A, D/P, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
6mm
Resolution :
27777dots/sqm
Cabinet Size :
576mm x 576mm
Brightness :
6500cd/sqm
Waterproof :
IP65
Led Type :
SMD3535
Description

Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels

Outdoor Rental Led Display Available Pixel Pitch, P4.81, P5, P6, P6.67, P8, P10

Feature


1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.


2. Nice appearance and simple structures.


3. Jointed correctly, being installed & dismounted by one person without tool.


4. Humanized operating interface with breakdown indicator lights, easy to maintain.


5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

Competitive Advantage

1. First-class LED chip: Epistar from Taiwan.

2. With pure copper wire connection in LED.

3. Grand A row material for module frame and mask.

4. 4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Long-term Brightness capacity throughout product lifetime.

8. Two years warranty.

Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine,

Solder Paste Printing Machine,Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium speed Automatic SMT Machine,

Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)

Equipement.


Applications
Commercial advertising, night club, entertainment events, business establishments, stock exchange centers, schools, telecommunications, stadiums, shopping malls, railways, airports, stages, activities etc.

Specification

Pixel Pitch

6mm

Pixel Density

27777dots/sqm

Color Configuration

1R1G1B

LED Package

SMD3535

Module Size

192mm x 192mm

Module Resolution

32dots x 32dots

Drive Mode

1/8 Scan, Constant Current

Brightness

>6500cd/sqm
Led Chip Epistar

Viewing Distance

6m-60m

Viewing Angle

H: 140°; V:140°

Refresh Rate

2000HZ

Frame Rate

120frame/sec

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

1200W/sqm

Ave. Power Consumption

500W/sqm

Storage Temperature

-40℃~+85℃

Working Temperature

-20℃~+65℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control System

Synchronous, 3G, WIFI, USB

Control PC

With DVI Graphic card

PC Display Resolution

1280x1024

Operating System

Win 98, Win2000, XP, Win7 ,Win8.etc

Video Signal Mode

RF,S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

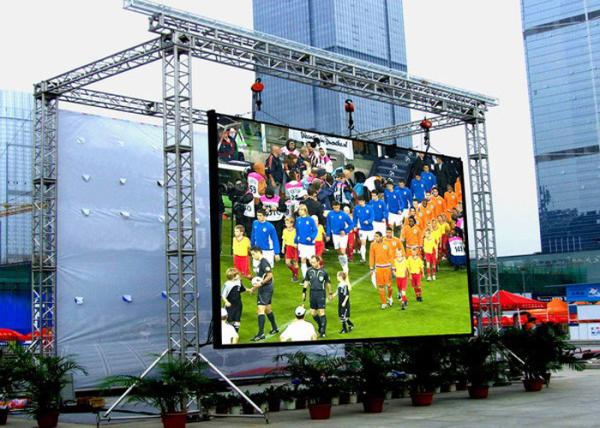

Product Images

Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display PanelsWaterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display PanelsWaterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels

Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
