40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
Specifications
Brand Name :
SRYLED
Model Number :
SRY-IF-P5
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
500-900USD/sqm
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
5mm
Module Size :
320mm x 160mm
Led Chip :
Epistar
Drive Method :
1/16 scan
Resolution :
40000 dots/sqm
Material :
Die Casting Aluminum
Warranty :
2 years
Description

40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable

To meet the various growing demands of the rental market, SRYLED now focus on producing die-cast aluminum rental series led screen

Description

1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce transportation fee and save costs.

2.Thin cabinet:the thickness is only 9 CM, the space of the screen is small , and the entire screen will be more beautiful.

3. Flat screen: smooth surface error is under 0.1cm, it can remove the mosaic phenomenon effectively.

The effect of the display will be more clear and exquisite.

4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.

5. Low release heat: low noise, low consumption, excellent thermal design and excellent thermal dispersion.

6. Full compatible: new structure design which can demand the indoor displays’ require.

Advantages

1. Vivid and brilliant color, sharp and smooth images.

2. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.

3. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by

changing led modules.

4. Support different shapes installation: Flat and curved ,create infinite stage styles.

5. Superb performance/price ratio solution for rental market.

6. 24/7 professional after sales service, and on-site service is available.

Specification

Pixel Pitch

5mm

Pixel Density

40000dots/sqm

Color Configuration

1R1G1B

LED Package

SMD3528

Module Size

320mm x 160mm/ 160mm x 160mm

Module Resolution

64dots x 32dots/ 32dots x 32dots

Drive Mode

1/16 Scan

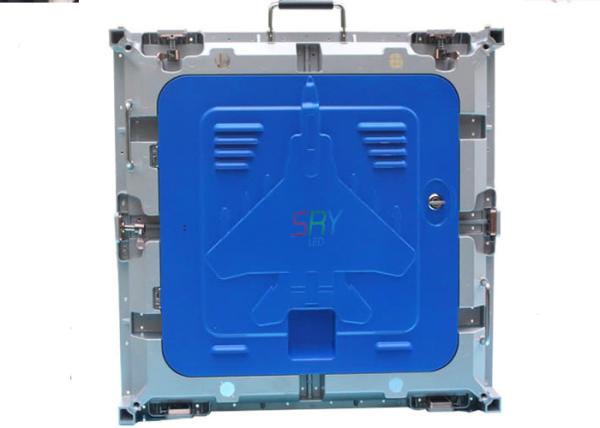

Standard Cabinet Size

640mm x 640mm

Cabinet Weight

12KG

Brightness

≥1500 cd/sqm

Viewing Distance

5m-50m

Viewing Angle

H: 140°; V:120°

Refresh Rate

2000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

800W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Control PC

With DVI Graphic card

Operating System

Win 98, Win2000, XP, Win7, Win8

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

Applications

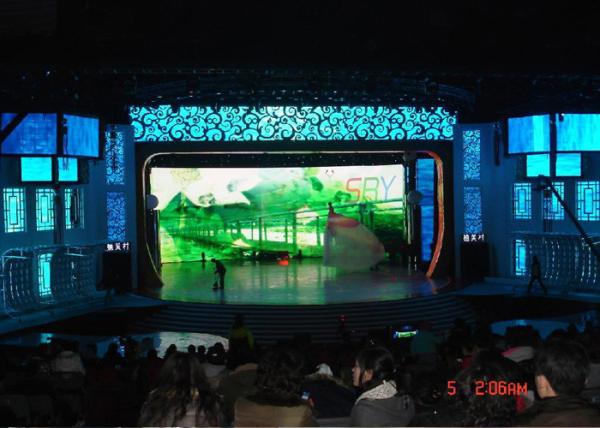

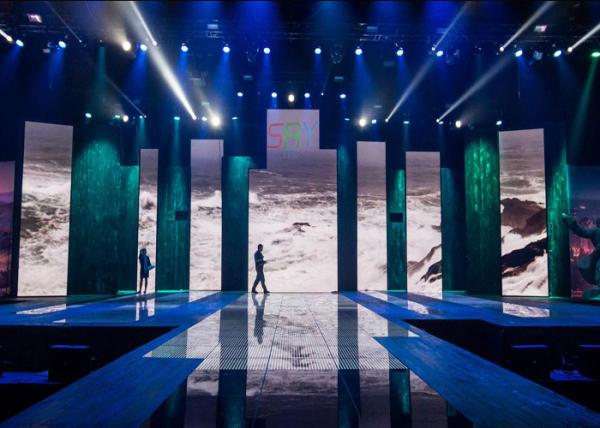

Stage Background;


Show & Exhibitions;


Concert And Other Entertainment Events;


Company events; Club & Others.

Product Images

40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable

40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable

40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable

40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
