HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P5
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
900-1300USD/sqm
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden box or flight case
Module Pixel :
PH5mm
Module Size :
320mm x 160mm
Cabinet Size :
640mm x 640mm
Weight :
12KG
Life Span :
100,000hours
Led Encapsulation :
SMD2727
Led Chip :
Kinglight
Drive IC :
MBI or JXI
Description

HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display

Description

P5 outdoor led display screen, with 40000 dots/ sqm high resolution, show super clear images and video to audience, brings vivid visual effect. It is small pixel pitch product for outdoor use, IP65 waterproof level. P5 led display can make fixed and rental cabinets, now mainly used for outdoor show, events and all kinds of advertising activities.

Quick Detail:

1. 320x160 mm

2. MBI 5024 drive IC

3. 1/8 scan constant current

4. SMD2727 LED type

5. RGB LED is Epistar brand

6. 64x32 dots

Feature

1) High brightness : over 6000 nits

2) High definition: 40000 pixels per square meter

3) Waterproof : IP65 standard

4) Super-light: only 12KG per panel

5) Ultra-thin: only 75mm thickness

6) It can work with our 640x640mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m

7) The appearance is very simple and elegant,

8) Very easy to calculate the area of LED screen

9) With fast lock system, easy to install and dismantle

10) Can be stacked on floor or hung on truss


Applications


Commercial advertising, buildings, entertainment events, restaurant, hotel, schools, stadiums, shopping malls, railways, airports, high way, theater, cinemas etc.

Specification

Pixel Pitch

5mm

Color Configuration

1R1G1B

LED Package

SMD2727

Module Size

320mm x 160mm

Drive Mode

1/8 Scan, Constant Current
Drive IC MBI5024

Module Thickness

2.8CM

Interface

HUB75

Brightness

Over 6500cd/sqm

Best Viewing Distance

5m-100m

Viewing Angle

H: 140°; V:140°

Refresh Rate

2100HZ

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10％, 50HZ

Ave. Power Consumption

400W/sqm

Working Temperature

-20℃~+65℃

Blind Spot Rate

<1/10000

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control System

LINSN, NOVA, XIXUN, HD

Video Signal Mode

RF,S-Video, RGB, RGBHV, YUV, YC etc
PC System Windows Series, XP, Win7, Win8, Win10

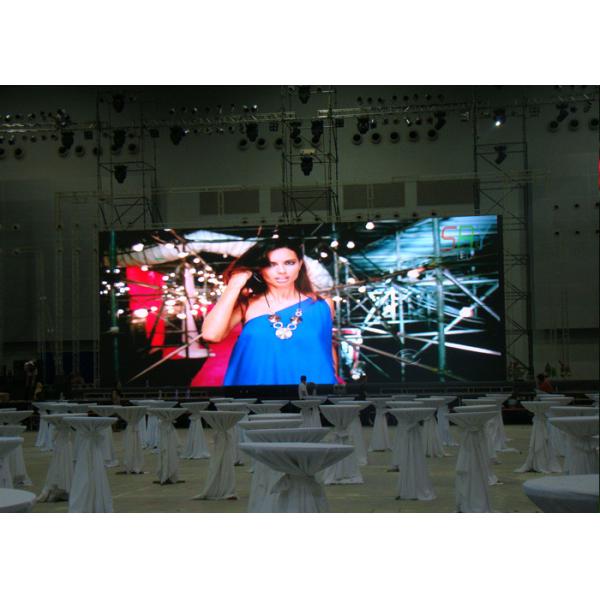

Product Images

HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led DisplayHD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
