Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P6.25
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
2sqm
Price :
900-1200USD/sqm
Payment Terms :
T/T, Western Union, PayPal, L/C, D/A, D/P
Supply Ability :
3000sqm per month
Delivery Time :
15 workign days
Packaging Details :
Flight case(6pcs cabients in 1pcs flight case)
Pixel Pitch :
6.25mm
Module Resolution :
40 dots x 40dots
Application :
Outdoor rental use
Drive Method :
1/10 scan
Cabinet Size :
500mm x 500mm
Cabient Material :
Die Casting Aluminum Magnesium
Drive IC :
MBI5024
Description

Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm

Description

1, Real pixel, 6.25mm pixel pitch

2, 25600 pix/m2 pixel density, delivering truly HD images or video

3, High contrast ratio, wide viewing angle, as well as superb color uniformity

4, Brightness - Up to 6000cd/nits/m² high brightness with excellent color uniformity, ideal for outdoor stages

5, Dot by Dot - Latest dot correction technology allows curtain series panels to achieve full color uniformity and brightness

6, Fast - No tool assembly with fastlocks and compression locks for seamless assembly and performance

7, Lightweight (12kg/panel) and ultra thin(70mm), for fast set-up and tear-down

8, Available model: P4.81, P5.95, P6.25

9, We also make 500 x 1000mm led panels if customers need

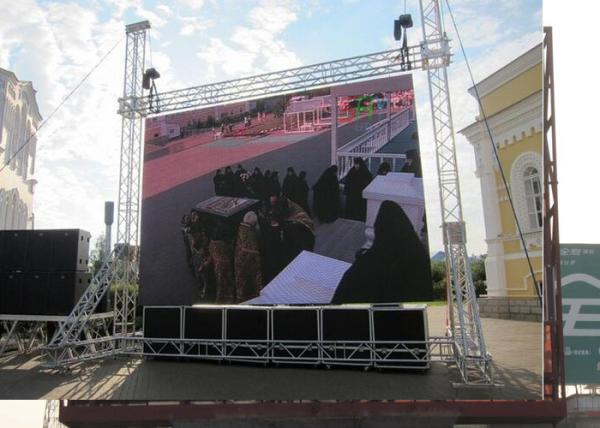

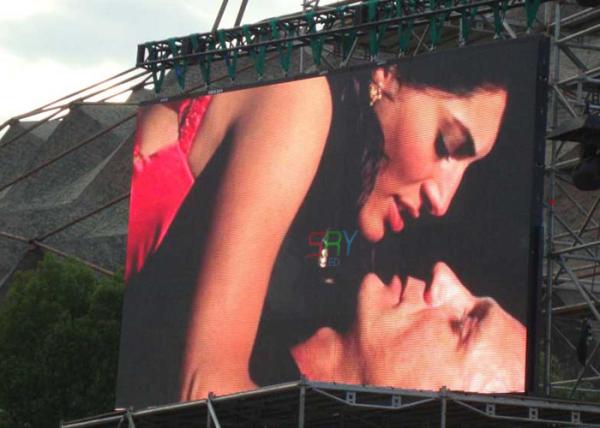

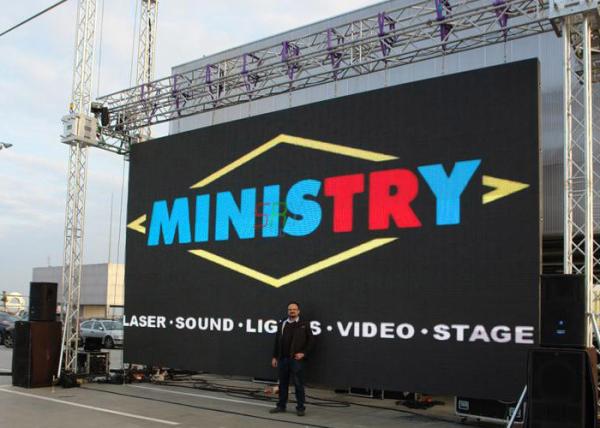

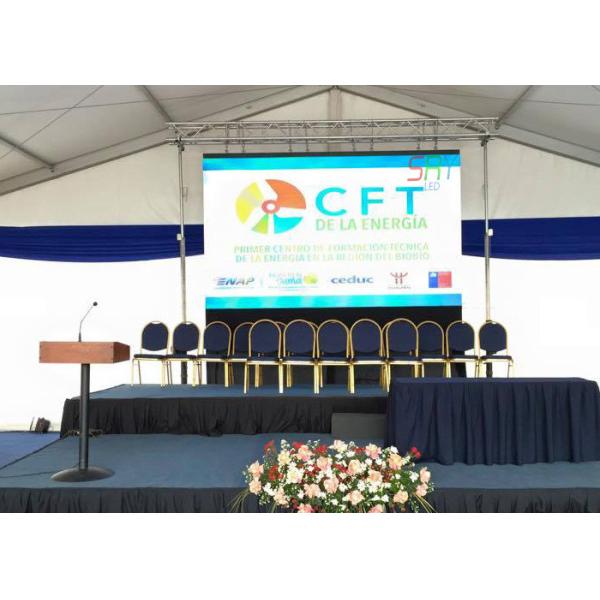

Application

Outdoor stage backdrop, concert, fashion show, events, conference etc.

Specification

Die casting aluminum Rental LED Display Screen
Module Pitch/mm P6.25
Module size/mm 250x250
Density of pixel/(dots/m2) 25,600
Pixel composition 1R1G1B
Led encapsulation SMD3535
Resolution of module 40x40
Main Optimum viewing distance ≥6
View angle / ° 140 H,120 V
Average power consumption/W/M2 400
Max power consumption/W/M2 960
Size of cabinet/mm 500x500
Resolution of cabinet 80x80
Weight of cabinet/kg 8
Driving method 1/10 scan constant current
Frame frequency / Hz/S ≥60
Refresh rate Hz/S ≥1000
Luminance of white balance ≥6000 nits
Operation of Environmental Temperature/℃ below 30 to above 50
IP rating Front,IP65;Rear,IP43
Working vlotage 110-220 VAC/+/- 10%
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment 256 levels of each color(manually),100 levels of each color(automatically)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system (sending card,receiving cards and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Functionaless dot rate <0.0001

Product Description
Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm

Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm

Ultra Slim P6.25 Commercial stage led screen wall 500 x 500mm
