P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
Specifications
Brand Name :
SRYLED
Model Number :
SRY-IF-P4
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
699-1099USD/sqm
Payment Terms :
T/T, Western Union, PayPal, L/C, D/A, D/P, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
4mm
Module Size :
256mm x 128mm
Led Color :
Black
Drive IC :
JXI5020
Cabinet Material :
Die casting aluminum
Cabinet Weight :
8KG/pcs
Best Viewing Distance :
4-40m
Brightness :
1200cd/sqm
Description

P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm

Description

1, Low consumption ＆energy saving, stable performance, highly durable

2, cabinets,fanless design with noiseless power supply

3, High precision CNC maching,precision up to 0.1mm

4, Clear picture without flicker and distortion

5, 2 years warranty, easy to install & maintenance

Features

1) Can be hang or stand in ground.

2) Size and Weight: 512mm*512mm, 8KG.

3) High contrast 2000:1 to ensure a vivid image of our LED display.

4) 4 fast locks with locating pins, very stable to plug the adjacent cabinets.

5) IP43 indoor usage, high brightness 2000 nit, good heat dissipation.

6) Led display with high resolution 62500 dots/sqm to keep good video effect.

Application

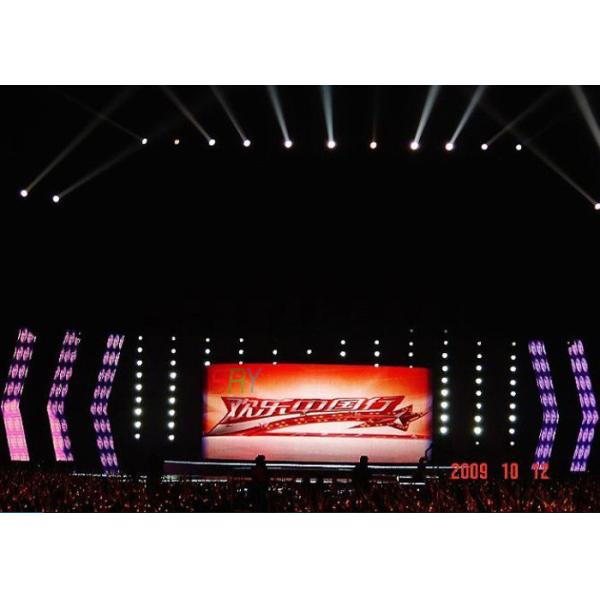

Mainly used for stage background, TV studio, theater, site show, conference, events etc.

Specification

Pixel Pitch

4mm

Pixel Density

62500dots/sqm

LED Package

SMD2121

Module Resolution

64dots x 32dots

Drive Duty

1/16 Scan

Standard Cabinet Size

512mm x 512mm

Brightness

≥1200 cd/sqm

Best Viewing Distance

4m-40m

Viewing Angle

H: 140°; V:120°

Refresh Rate

2000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Power Input

AC110V/ 220V ±10％, 50HZ

Max Power Consumption

800W/sqm

Ave. Power Consumption

300W/sqm

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Product Images

P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm

P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm

FAQ

Q1: How about the size of project?

A1: Please offer the size with "width by height" of project. We will offer the best solution for your project . We will be appreciated it if any drawing files about installation offered.

Q2: Where is it used for?

A2: Indoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

Q3: Can it play HD video?

A3: Yes, it can realize HD video function with video processors.

Q4: What's the controlling system?

A4: Our standard controlling system for this model is Linsn. Also support other controlling system, like Novastar , Colorlight , Xixun , Huidu , etc.
