Specifications
Brand Name :
SRYLED
Model Number :
SRY-IF-P3
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1sqm
Price :
900-1300USD/sqm
Payment Terms :
T/T, Western Union, PayPal, L/C, D/A, D/P, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Pixel Pitch :
3mm
Led Type :
SMD2121
Cabinet Size :
576mm x 576mm
Cabinet Weight :
8KG/pcs
Environment :
indoor
Chip Color :
full color
Module Size :
192mm x 192mm
Module Resolution :
64 x 64 dots
Description

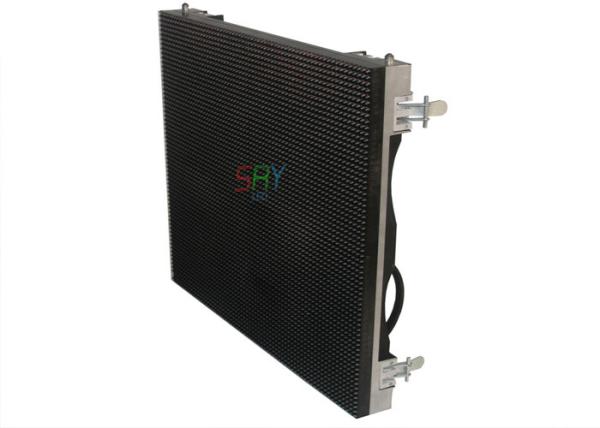

192mm x192mm Rental LED Display P3 LED Video Wall For Indoor


Description

Compared with the traditional LED displays with black aluminum alloy, aluminum alloy covered with stainless steel or sheet metal cabinet, the Die-Casting Aluminum Cabinet LED screen adopts die-casting aluminum cabinet, which makes many new performance advantages.

The cabinet size is 576mmx576mm with light weight. It could be carried by one hand, could be installed quickly within 10 Seconds. The cabinet adopts die-cast Aluminum material with only 65mm thickness, advantages in high strength, excellent ductility, good precision and is difficult to deform.

The same size cabinet can be compatible with different specification displays of different dot pixels.

Feature

P3 indoor led display has smooth surface, well brightness mixed, vivid images, fluent video, wide viewing angle. It is widely used in the indoor environment , such as hall, TV studio, hotel, theater ,meeting room, school , hospital, gymnasium, advertising, bar and restaurant etc., to display text , graphic, picture and video etc.


1) High brightness LED lamps and good quality plastic kit.


2) High contrast ratio, outstanding display effect.


3) Light weight, easy to assemble and dismantle.

4) Maintenance can be a single point or single lamp.

Our Service


1) Reply your inquiry in 24 working hours.

2) Experienced staffs answer all your query in fluent English.

3) Customized design is available,OEM & ODM are welcomed.

4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5) Special discount and protection of sales area provided to our distributor.

6) Warmly welcome your visit in our company if available.

Specification

Pixel Pitch

3mm

Pixel Density

111111dots/sqm

Color Configuration

1R1G1B

LED Package

SMD2121

Module Size

192mm x 192mm/192mm x 96mm

Module Resolution

64dots x 64dots/64dots x 32dots

Drive Mode

1/32 Scan

Standard Cabinet Size

576mm x 576mm

Cabinet Weight

8KG

Brightness

≥1200 cd/sqm

Viewing Distance

3m-30m

Viewing Angle

H: 140°; V:120°

Refresh Rate

2000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10%, 50HZ

Max Power Consumption

1000W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Control PC

With DVI Graphic card

Operating System

Win 98, Win2000, XP, Win7, Win8

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

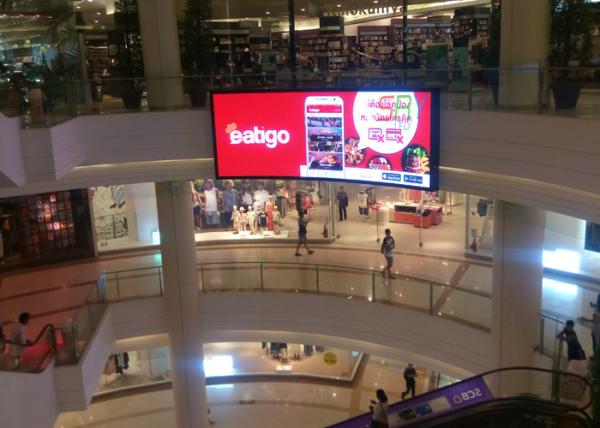

Applications

Business Organizations

Supermarket, large-scale shopping malls, star-rated hotels, travel agencies

Financial Organizations

Banks, insurance companies, post offices, hospital, schools

Public Places

Subway, airports, stations, parks, exhibition halls, squares, stadiums, museums,
commercial buildings, meeting rooms, government

Entertainments

Movie theaters, cinema, clubs, stages

Like many traditional Electronic products, LED display screen not only need us pay attention to the way of use the process of using , but also need us to know the maintenance the LED display .Through that,it using life will be longer. Here are ten ways of how to maintenance the LED display .

1,Keeping the full color LED display of humidity use environment,do not let any have moisture things go into it.If we let the humidity full color LED display in electric,it will cause the corrosion of full-color display components, and cause permanent damage.


2,The most closely to our user is full color LED display screen. It is very necessary to do well the maintenance work.If the display prolonged exposure in outdoor environment having wind, sun,dust ,it will easily to dirty. After a long time,there are certainly dust on the screen ,which need to be cleaned timely to prevent dust long time parcel surface to influence the watching effect.


3,To avoid meet some problem, we can combine the passive protection with active protection,and try to keep away from the items that will caused some damage to display screen .When you clean the screen ,please gently wipe as much as possible,to minimize the possibility of injury to the LED display .


4,Advising the rest time of led electronic display is above two hours every day.In the rainy season,the large LED display screen at least rest one week or more than once. At least turn on the screen once on a month,light up more than 2 hours.

Product Images

192mm x192mm Rental LED Display P3 LED Video Wall For Indoor

192mm x192mm Rental LED Display P3 LED Video Wall For Indoor

192mm x192mm Rental LED Display P3 LED Video Wall For Indoor
